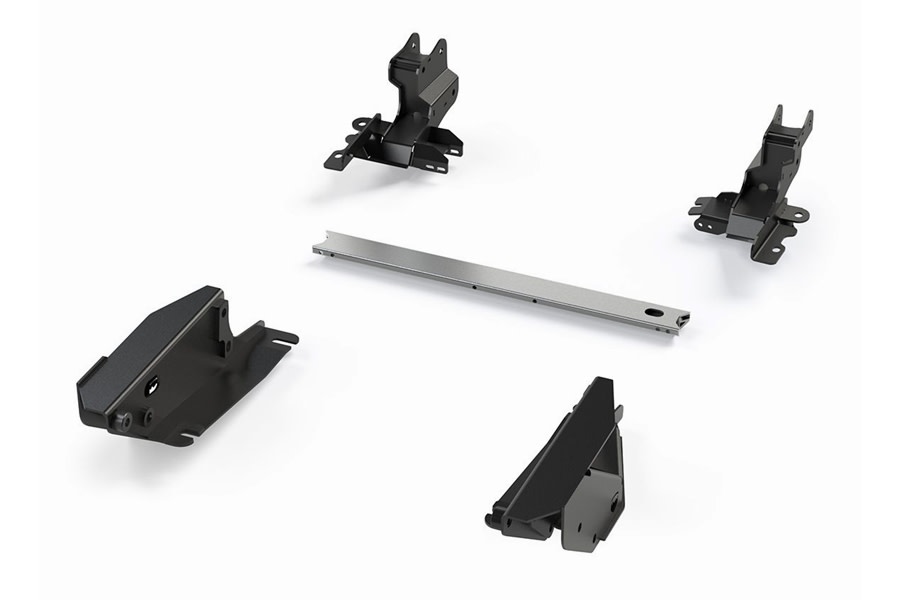

TeraFlex JT: Long Control Arms (NOT INCLUDED) and Long Arm Brackets provide complete alignment adjustability and dependability for maximum performance on JT Gladiator models with 3–6” lifts. CAD-engineered TeraFlex JT: Long Arm Brackets are designed for maximum strength. By streamlining the frame-end mounting points, we were able to incorporate both upper and lower mounts in each bracket thus simplifying installation while maintaining a factory appearance.

Front Long Arm Suspension Crossmember provides additional strength. MUST be used with adjustable Long Control Arms (JT: Alpine: # 1317005) (JT: Alpine IR: # 1318005) — NOT INCLUDED. Can be added to an existing suspension lift.

Features and Benefits

JL / JT: Long Control Arms (Alpine/IR) and Long Arm Brackets:

Adjustable Long Control Arms (NOT INCLUDED) and Long Arm Brackets balance front caster angle and pinion angles as well as optimize rear pinion angle and tune anti-squat geometry for proper suspension alignment on 3–6” lift kits

Long Control Arms (NOT INCLUDED) are constructed from durable 42mm x 4mm (front upper) or 50mm x 5mm (front lower, rear upper, rear lower) wall DOM tube for maximum strength

On higher lifts, bolt-on Long Arm Brackets reposition frame-end control arm mounting points to restore near factory orientation to reduce bushing stress during extreme droop and shock load transferred through the Long Control Arms

Long Arm Brackets are gusseted and reinforced for superior strength w/ reduced NVH compared to other long arm kits

Long Arm Brackets feature a premium triple-stage powder coating that provides superior durability and corrosion resistance

Front Long Arm Suspension Crossmember provides additional strength

Install and drive simple bolt-on installation — no welding required

Adjustable Control Arms (all):

Re-centers axles in the wheel well for proper suspension movement. Can also be used to increase wheelbase

Full range of movement will not restrict articulation or flex off-road

Zero maintenance forged threaded joints for smooth quiet flex

Premium black e-dipped coating on tube and forged rod end housing provides superior durability and corrosion resistance

Anodized 6061-T6 aluminum clamp collar to secure rod end after length adjustment

TeraFlex Lifetime Warranty against defects

Notes:

Long Arm Brackets MUST be used w/ adjustable Long Control Arms — NOT INCLUDED.

REQUIRES cutting/removal of factory control arm bracketry to install Long Arm Brackets.

JT: Long Arm Brackets are NOT COMPATIBLE w/ all rock sliders. Some rock sliders may require disassembly for install.

Alignment REQUIRED.

Available RockGuard Transmission Skid Plate & Long Arm Crossmember Reinforcement protects your transmission and reinforces your Front Long Arm Suspension Crossmember. RECOMMENDED, BUT NOT REQUIRED.
