Icon Vehicle Dynamics 2.5in Stage 8 Suspension System Lift Kit - Billet - JT
Icon Vehicle Dynamics 2.5in Stage 8 Suspension System Lift Kit - Billet - JT
Icon Vehicle Dynamics 2.5in Stage 8 Suspension System Lift Kit - Billet - JT
Icon Vehicle Dynamics 2.5in Stage 8 Suspension System Lift Kit - Billet - JT

Icon Vehicle Dynamics 2.5in Stage 8 Suspension System Lift Kit - Billet

JT

INCLUDED IN PRICE

Product Resources

Features & Product Details

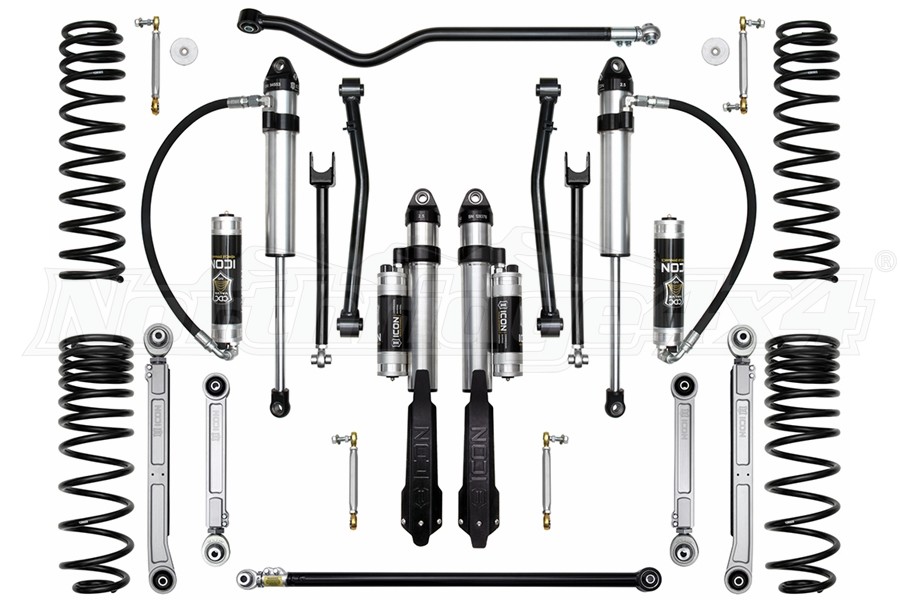

The Stage 8 ICON 2.5” Suspension System for the Jeep Gladiator is the ultimate setup for drastically improving off-road performance and providing an end-user adjustable ride quality for the application that will see heavy off-road use across a wide variety of vehicle loadouts and terrains. This complete suspension system features ICON’s proven 2.5 Series shocks with CDC Valve technology, 2.5” lift dual-rate front coil springs, tubular steel fixed lower and adjustable upper front links, billet front sway bar links, a triple-rate rear coil spring kit, billet aluminum adjustable upper and lower rear links, a billet rear sway bar link kit, front and rear adjustable track bars, and all necessary hardware for install. This system provides an increase of over 30% front and 20% rear wheel travel and was designed around the use of a 35” tire. For those looking to run a 37” tire this can be achieved with the ICON Jeep JT Bump Stop Spacer Kit.

Features & Benefits

  • 2.5" lift height
  • Easy-to-adjust CDC Valve (Compression Damping Control) allows for end-user compression damping changes to suit all types of terrain and vehicle cargo configurations
  • Front and rear track bars ensure proper alignment and improved articulation

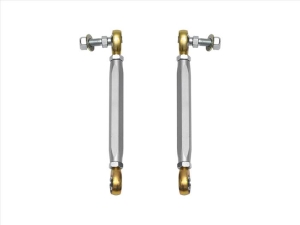

  • Adjustable, billet aluminum front sway bar links
  • 100% bolt-on system makes for an easy install
  • “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
  • Fits 35" tires (37" with extended bump stop spacer kit)
  • 33% front, 23% rear increase in wheel travel
  • Improves on and off-road ride quality over stock
  • Front upper and lower links included for caster angle correction and improved front end articulation
  • Rear billet upper and lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
  • Dual rate front coil springs with lifetime guarantee against sagging/breakage
  • Triple rate rear coil springs with ICON-engineered droop, ride, and overload rates

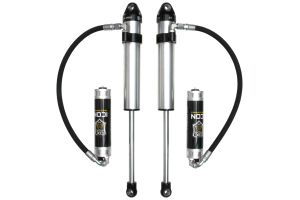

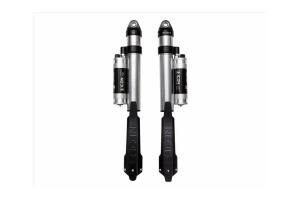

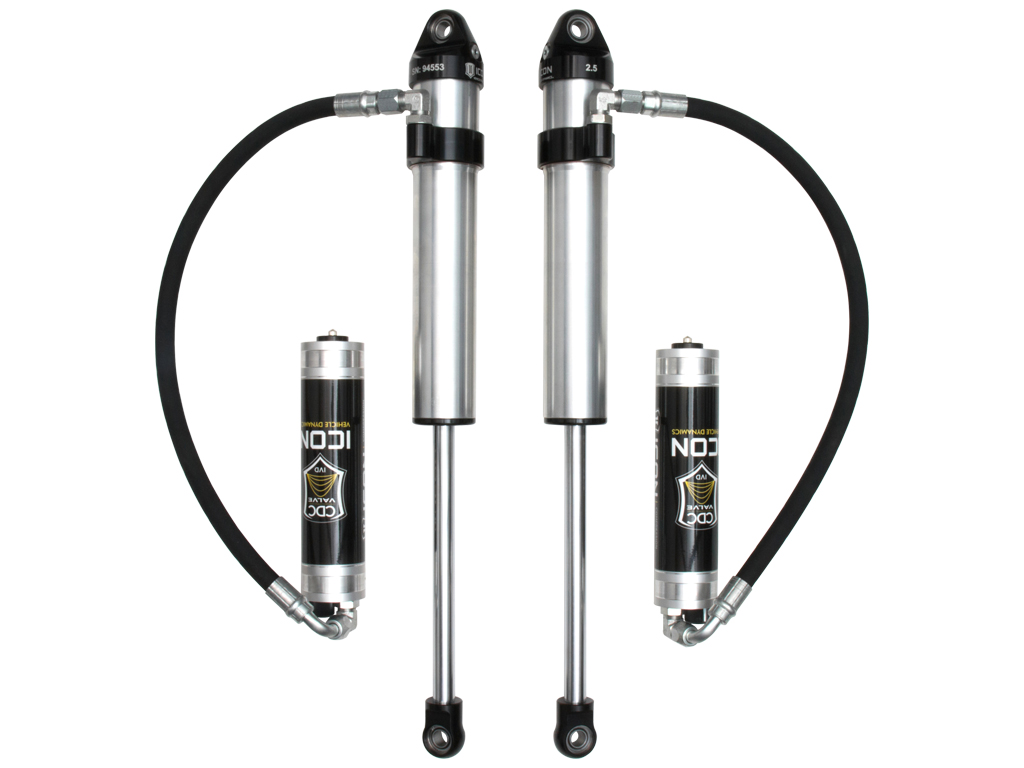

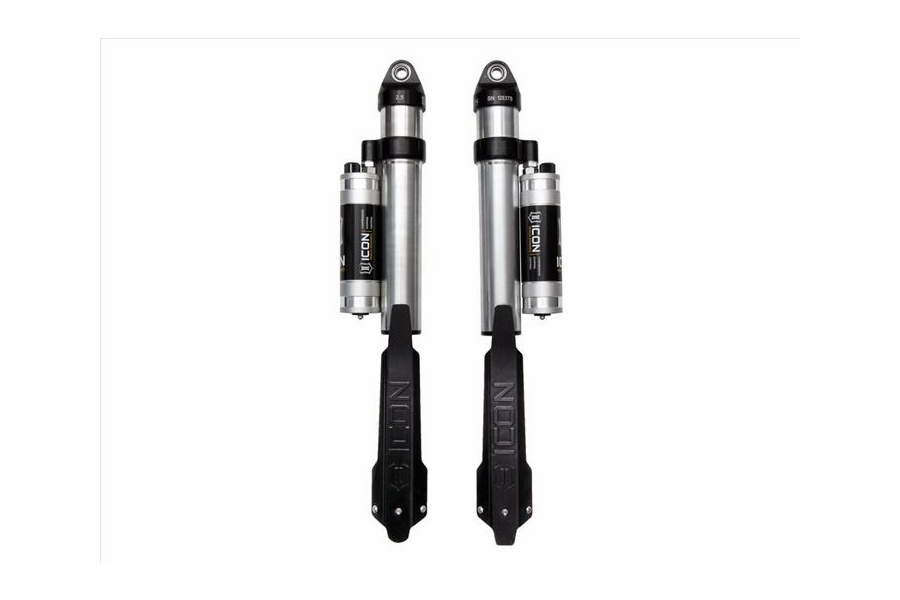

  • 2.5 Series remote reservoir shocks with vehicle specific valving
  • Tech Info:

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys | 17" x 8.5" w/ 4.5” BS / -6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys | 17" x 8.5" w/ 4.75” BS / 0mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys | 18" x 9" w/ 4.5” BS / -12mm Offset
  • Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" with optional bump stop spacer kit PN: 22071)
  • APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
  • Product Video

    Specifications

    Brand: Icon Vehicle Dynamics
    Kit Package: Yes
    Mfgr. Warranty: Limited Lifetime
    Condition: New Product
