BDS Suspension 4in Suspension Lift Kit w/ NX2 Shocks and Disconnects -  JK 2012+ 2Dr

BDS Suspension 4in Suspension Lift Kit w/ NX2 Shocks and Disconnects

JK 2012+ 2Dr

BDS Suspension 4in Suspension Lift Kit w/ NX2 Shocks and Disconnects -  JK 2012+ 2Dr
INCLUDED IN PRICE
You will earn Reward Points with this Purchase.
Write a Review | Q&A
Part # 1417HWe price match! Call 866-601-5340!
ANY QUESTIONS?

Product Resources

Features & Product Details

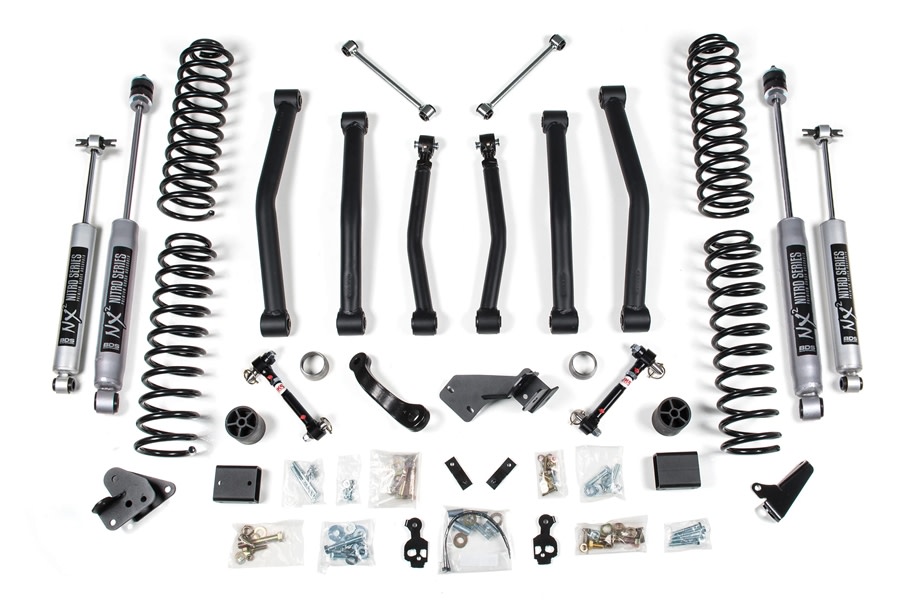

Take your 2012-2018 Jeep Wrangler JK 2 Door to the next level and improve the ride with this 4-inch lift kit from BDS Suspension. Designed to improve stance this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

Up front the lift kit includes 4" Pro-Ride coil springs capable of full coil bind and 3" bump stop extensions to control the compression travel, but increase wheel travel. Also included are brake line brackets, sway bar links, and front track bar relocation bracket and pitman arm to improve the steering and handling geometry. The front suspension in this 4-inch lift kit is finished off with fixed length lower control arms with OE grade rubber bushings that re-position the front axle for proper alignment.

In the rear the kit utilizes Pro-Ride coil springs, sway bar drop brackets, and a rear frame mounted track bar relocation bracket to correct axle shift. For proper rear axle position and pinion angle this kit includes fixed length rear lower control arms and adjustable rear upper arms. Round out this 4" lift kit with your specially tuned NX2 nitro series gas shocks to offer improved damper performance.

Pro-Ride Coil Springs

A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Features & Benefits

  • ProRide coil springs offer improved ride quality and more articulation
  • Sway bar quicker disconnects and extended rear link for improved offroad flex
  • New control arms to properly control the front and rear axle positions
  • Rear track bar bracket repositions rear axle under vehicle
  • NX2 gas shocks for improved damping
  • Allows clearance for 37" tires
  •

    Recommended Tires & Wheels

  • 37 x 12.5 with 16 x 8 and 4.5 in. Backspace
  •

    Shocks

    NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish
  •

    Sway Bar Links

    Disconnects

  • Gain 30 percent more axle articulationl by disconnecting your front sway bar
  • Convenient grease fittings ensure easy bushing lubrication for smooth, silent operation
  • Stainless tapered mounting posts and self-align bushings allow you to connect or disconnect on unlevel surfaces
  • Spherical bushings provide unrestricted 360 degrees of rotation and 11 degrees of misalignment capability
  •

    Notes

  • Will not fit 2wd models.
  • The fixed front and rear lower control arms can be upgraded to the flex or adjustable arms listed in the accessories.
  • The front driveshaft is maxed out at full droop and on certain models, the driveshaft boot can contact the transmission pan. Replacement of the front driveshaft is recommended.
  • Exhaust modification may be required.
  • This kit is FMVSS No.126 Compliant
  • Specifications

    Brand: BDS Suspension
    Kit Package: Yes
    Mfgr. Warranty: No-Fine-Print
    Condition: New Product
    Return Policy:
    Standard
