Rock Krawler 4.5in PRO X Coilover Mid-Arm Lift Kit - Comp System Stage 1
JT 3.6L
Product Resources
Features & Product Details

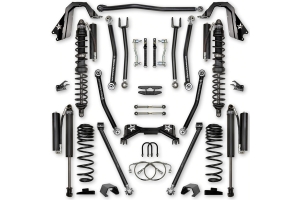

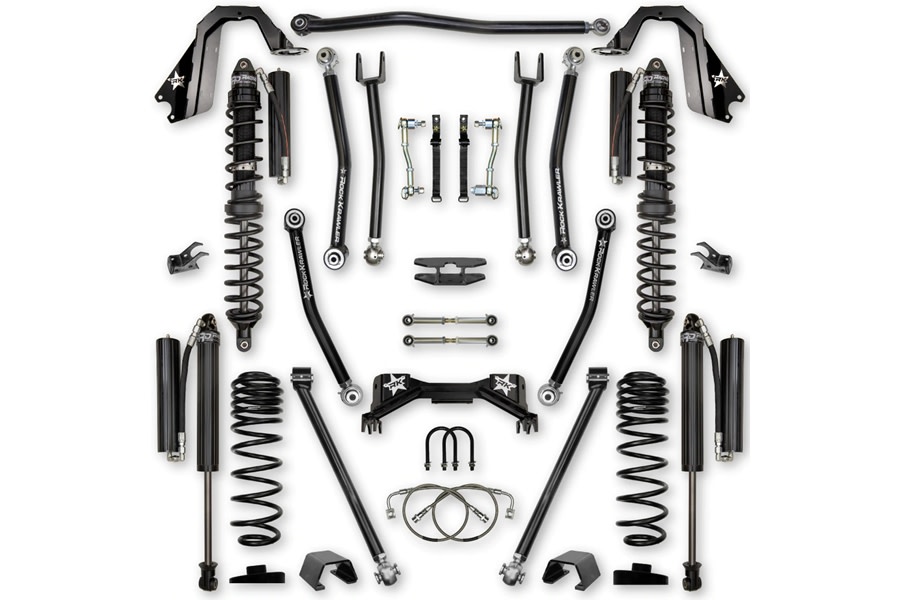

The Rock Krawler Suspension 4.5" PRO - X COILOVER Mid-Arm System is specifically designed Sport/Overland owners who want a complete system, bolt-in installation, and some of the best articulation of any MID-ARM kit on the market. This system proves its durability and off-road performance every time you hit the streets or trail! The inclusion of 8 adjustable control arms from the X-Factor family are the core to a perfectly dialed-in suspension. The kit becomes the "PRO - X" version due to the rear Bolt-in triangulated upper control arms. The triangulated 4-link rear assembly keeps the rear axle perfectly centered; allows for removal of the rear track bar, eliminates rear suspension bind, and the cross talk of the front and rear track bar arrangement, therefore greatly smoothing the highway ride.
Rock Krawler's industry leading, X-Factor mid-Arms feature adjustable upper and lower control arms and offer a total of 95 degrees of misalignment when paired with the Adventure series Joints at the frame connection and the Krawler joints at the axle. The inherent bind in a factory JL/JT control arm is greatly reduced. With so much adjustability, it allows you to precision tune the JT's caster and pinion angle front and rear. The provided track bar geometry corrections, up front and removal of it in the rear in favor of triangulation, lets you perfectly center the axles so there is no compromise in on road handling. (Also, available for Dana UD60 and Dynatrac XD60 Applications).

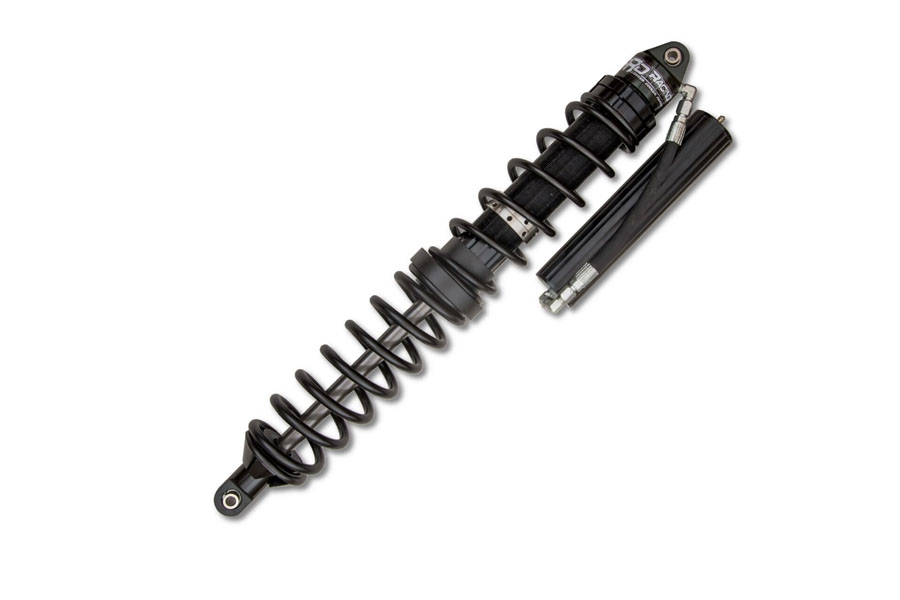

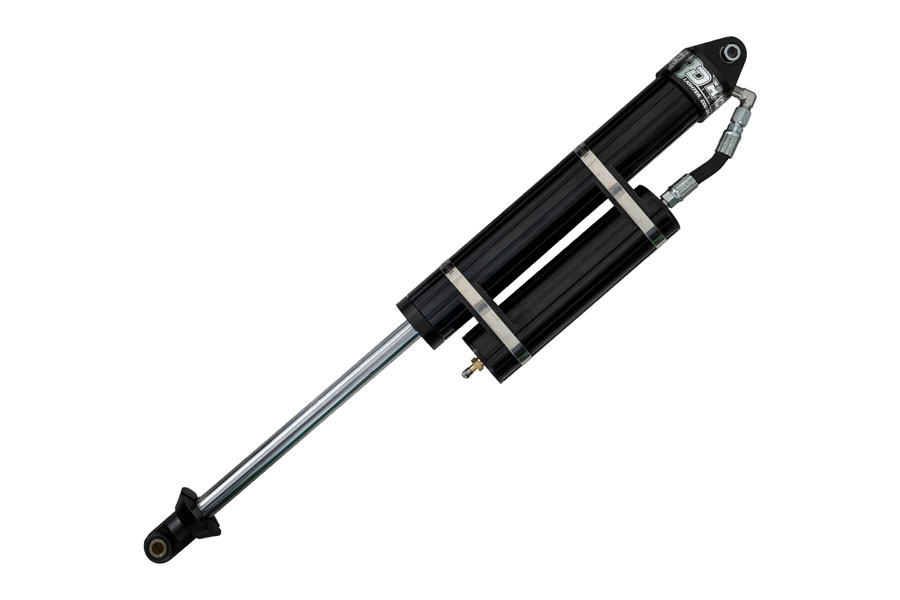

The Comp System (Front Coilovers w/ Rear Coil Combination) is ideal for those that want the adjustability and performance of coilover racing shocks up front, but still want to use their Gladiator to carry small loads or tow small trailers. There are two options for the Comp Systems you can choose from. The standard or Stage 1 System features 2 5/8" RRD Racing Coil Overs w/ Remote Reservoirs up front paired with matching 2 5/8" RRD Racing Shocks w/ Remote Reservoirs in the rear for a well tuned package. Or you can opt for the Stage 2 Comp System which will include Fast CD (Compression Dampening) Adjusters on the coilovers and rear shocks for an even greater level of tuneability.
The Trail Runner System (Front and Rear Coilover Combination) is ideal for those that want the adjustability and performance of coilover racing shocks at all 4 corners. This combination maximizes the off road ability of your Gladiator and comes well tuned for the street. Rear coilovers perform amazing off road, but do not take changes in loading conditions too well so towing or adding a lot of weight to the bed area is not optimal for rear coilovers. The standard or Stage 1 System features 2 5/8" RRD Racing Coilovers w/ Remote Reservoirs front and for a well tuned package. Or you can opt for the Stage 2 Trail Runner System which will include Fast CD (Compression Dampening) Adjusters on the coil overs for an even greater level of tuneability.
Like all of Rock Krawler's systems, amazingly tuned ride and handling is their number one priority! It is no different with the coilover systems. Coilovers add another level of tuneability for the vehicle owner to further enhance the ride, handling and off road performance to their liking. Install exceptional value, and be the foundation for every adventure whether it be on the Street or on the Trail with a Rock Krawler Coilover Suspension System! Thank you for considering Rock Krawler Suspension.
System Benefits:
COMP SYSTEM Stage 1 (Coilover Front/Coil Spring Rear)
Wheel Fitment:
Sport and Overland Wheel Fitment Recommendations
Mojave Fitment Recommendations
Tire Fitment:
Notes:
