Rock Krawler 4.5in X Factor Stage 1 Suspension Lift Kit   - JT

Rock Krawler 4.5in X Factor Stage 1 Suspension Lift Kit

JT

Rock Krawler 4.5in X Factor Stage 1 Suspension Lift Kit   - JT
INCLUDED IN PRICE

Product Resources

Features & Product Details

The Rock Krawler JT 4.5 inch X Factor Mid Arm System was specifically designed for those who want a complete bolt-in installation, maximum articulation from a mid-arm kit and the durability and off-road performance you expect from Rock Krawler Suspension. The X Factor Series adjustable lower control arms offer a total of 90 degrees of misalignment. Rock Krawler’s industry leading triple rate coils give you 4.5 inches of lift and improves the on-road ride over the factory linear rate springs. All Rock Krawler JT systems includes two rear spring seats, as well as the corresponding two front spring pads. The provided track bar geometry corrections, both front and rear, lets you perfectly center the axles so there is no compromise in on-road handling.

System Benefits:

  • Complete Bolt in System
  • Excellent Highway Ride
  • Improved Off-Road Ability
  • Triple Rate Coil Springs
  • Front & Rear Spring Leveling Pads
  • Lifetime Warranty on All Hard Parts

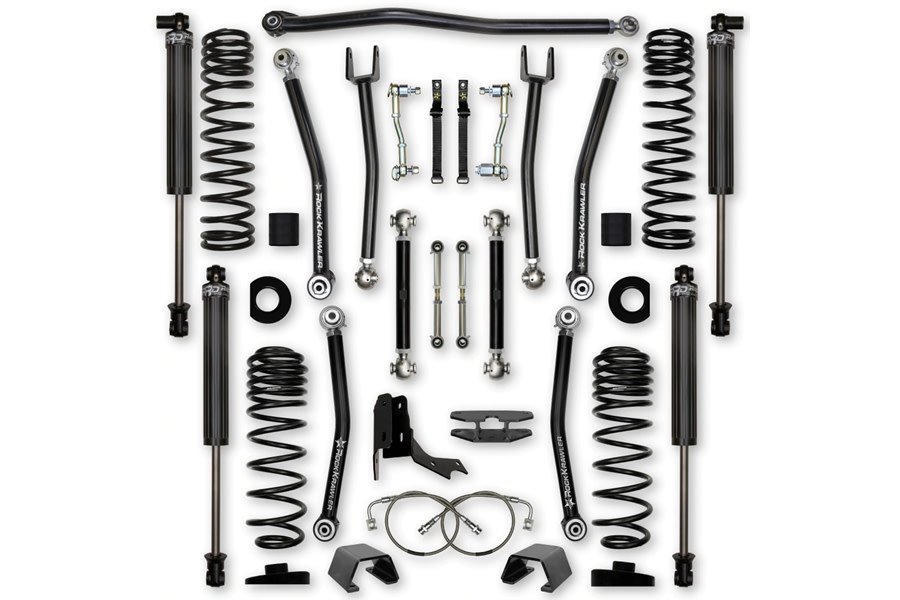

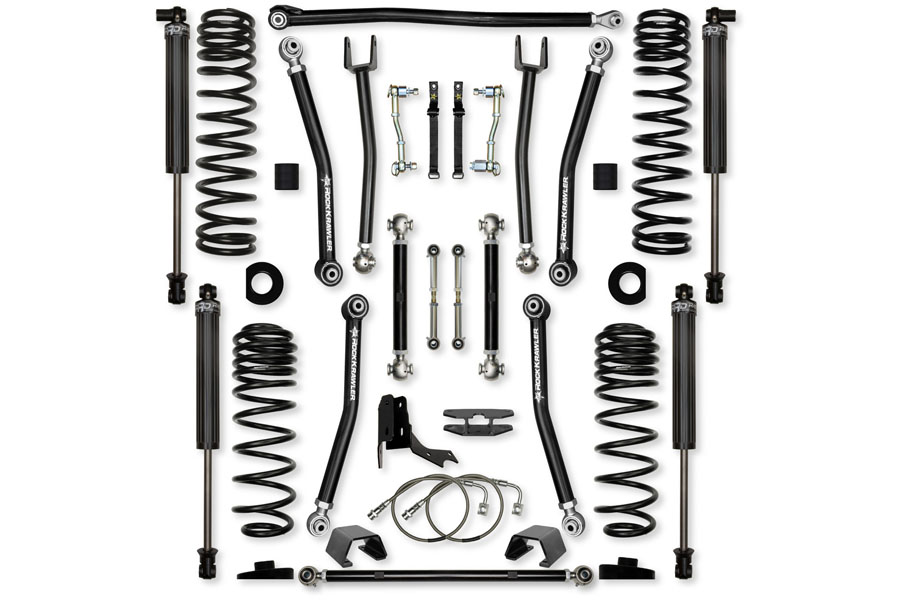

  • System Includes:

  • (4) Triple rate coil springs

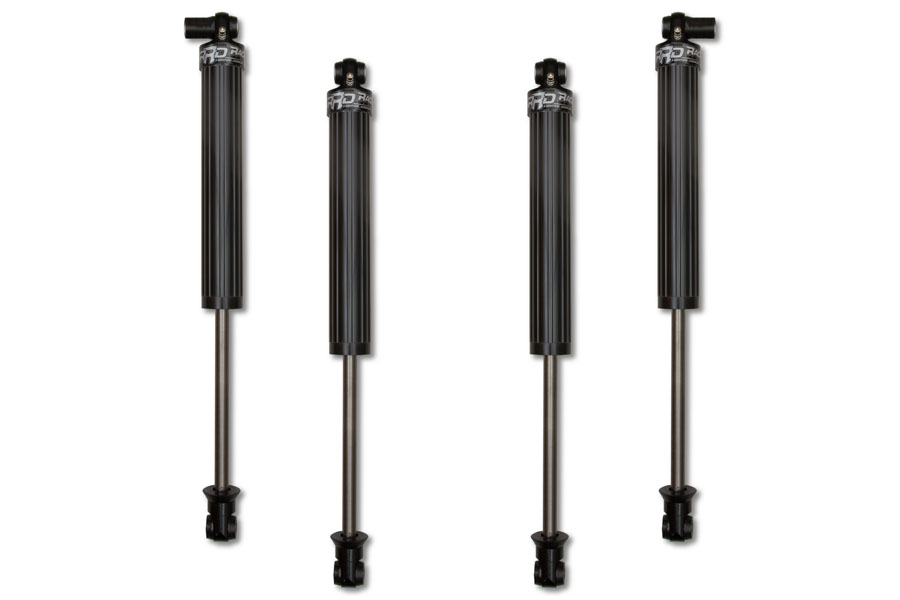

  • (2) 2.25 RRD Spec Front Shocks
  • (2) 2.25 RRD Spec Rear Shocks
  • (2) Front adjustable lower control arms
  • (2) Front adjustable upper control arms
  • (1) Adjustable front track bar
  • (2) Sway bar disconnects
  • (2) Front Spring Pads
  • (2) Sway bar disconnect straps
  • (1) Carrier bearing drop bracket
  • (2) Rear adjustable lower control arms
  • (2) Rear adjustable upper control arms
  • (2) Extended rear sway bar links
  • (2) Rear Spring Seats
  • (1) Bolt-on rear track bar relocation bracket
  • Tire Fitment:
    Sport and Overland with Full OEM Fenders
    37” Tall Tires (3” Bump Stop Height Recommended)
    Sport and Overland with Trimmed or High Lined OEM Fenders
    38” Tall Tires (3” Bump Stop Height Recommended)
    Rubicon with Full OEM Fenders
    37”/38” Tall Tires (3” Bump Stop Height Recommended)
    Rubicon with Trimmed or High Lined OEM Fenders
    40” Tall Tires (3” Bump Stop Height Recommended)

    Wheel Fitment:
    Sport and Overland Wheel Fitment Recommendations
    37”/38” Tall Tires - Recommend 3.5” of Back Spacing
    Rubicon or Sport with Wide Track Axles Fitment Recommendations
    37”/38" Tall Tires - Recommend 4.5” of Back Spacing
    40” Tall Tires - Recommend 3.5” of Back Spacing

    Shock Notes:
    Generic Front Shock Length – 17.5” Collapsed/ 29.5” Maximum Extended
    Generic Rear Shock Length – 17” Collapsed/ 28” Maximum Extended

    General Notes:
    *All lift heights based on Rubicon models
    *Designed to maintain 1/2" of rake on Rubicon Models
    *As shown valid for OEM axles only
    *If so equipped will require removal of rear shutter shock
    *For tires larger than 37" or hard core off-road use, welding of the rear cradle to the axle tubes is required.

    Specifications

    Brand: Rock Krawler
    Kit Package: Yes
    Mfgr. Warranty: See Individual Parts
    Condition: New Product
