Synergy Manufacturing 3in Suspension System Lift Kit, Stage 1.5 - JK 4DR

Suspension
Lift Kits
3-3.5in Lifts >Synergy Manufacturing 3in Suspension System Lift Kit, Stage 1.5 - JK 4DR

Synergy Manufacturing 3in Suspension System Lift Kit, Stage 1.5

JK 4DR

INCLUDED IN PRICE

Front Coil Springs $310.00

1 x Synergy Manufacturing Coil Springs Front 4in Lift 2-Dr / 3in Lift 4-Dr - JK/TJ/LJ/XJ
SYN8063-30

Out of stockEstimated to ship in 10-15 days
Rear Coil Springs $310.00

1 x Synergy Manufacturing Coil Springs Rear 4in Lift 2-Dr / 3in Lift 4-Dr - JK
SYN8064-30

Out of stockEstimated to ship in 10-15 days
Control Arm Cam Bolt Kit $45.00

1 x Synergy Manufacturing Lower Control Arm Cam Bolt Kit - JK
SYN8004

Out of stockEstimated to ship in 10-15 days
Rear Track Bar Bracket $220.00

1 x Synergy Manufacturing Track Bar Bracket 3.00-4.50in Lift Rear - JK
SYN8056

Out of stockEstimated to ship in 10-15 days
Front Track Bar Bracket $220.00

1 x Synergy Manufacturing Track Bar Bracket Front - JK
SYN8055

Out of stockEstimated to ship in 10-15 days
Rear Coil Wedges $30.00

1 x Synergy Manufacturing Rear Coil Wedges - JK
SYN8097

Only 1 left!
Snap Lock Bump Stop Spacers $90.00

1 x Synergy Manufacturing Snap-Lock Bump Stop Spacer Kit 2-4in - JL/JK/JT
SYN8057-10

Only 2 left!
Rear Bump Stop Spacers $150.00

1 x Synergy Manufacturing 3in Rear Bump Stop Spacer Kit - JT/JL/JK
SYN8858-30

Out of stockEstimated to ship in 10-15 days
Drag Link $450.00

1 x Synergy Manufacturing Heavy Duty Drag Link Kit - JK
SYN8000-01

Out of stockEstimated to ship in 10-15 days
Rear Sway Bar Links $150.00

1 x Synergy Manufacturing Rear Sway Bar Links - Pair - JK
SYN8060-11

Only 3 left!

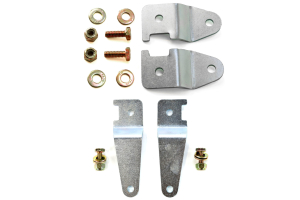

Brake Line Relocation Kit $70.00

1 x Synergy Manufacturing Brake Line Relocation Kit - JK
SYN8082

Out of stockEstimated to ship in 10-15 days

$2,045.00

Qualifies for
free shipping!

Set your vehicle to confirm fitment

You will earn Reward Points with this Purchase.

★★★★★

(0)
Write a Review | Q&A

Part # 8045-30

Any Questions?
Chat with an expert!

ANY QUESTIONS?

Authorized
Dealer

Product Resources

Fitment Details

Features & Product Details

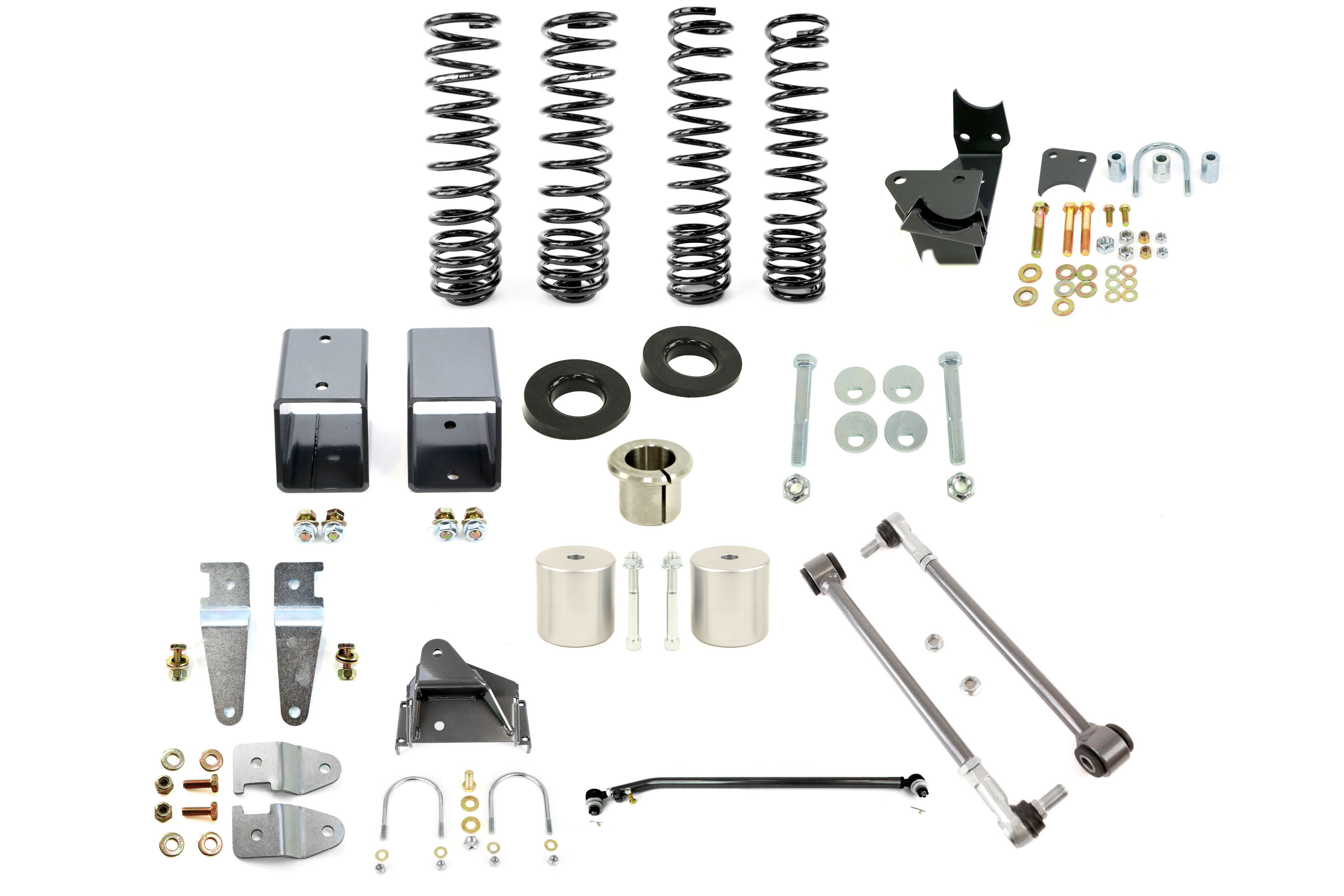

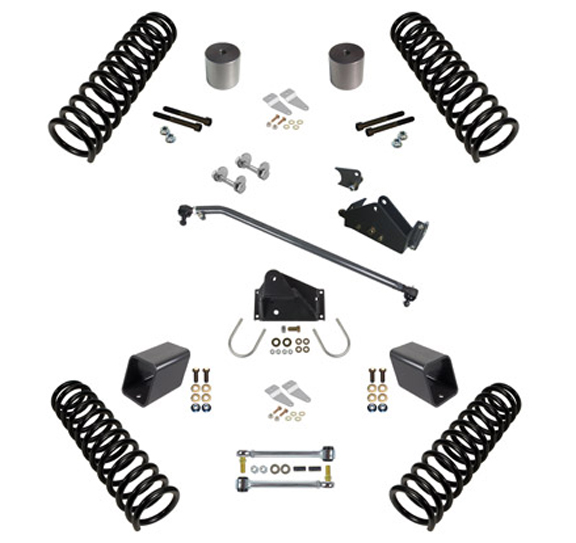

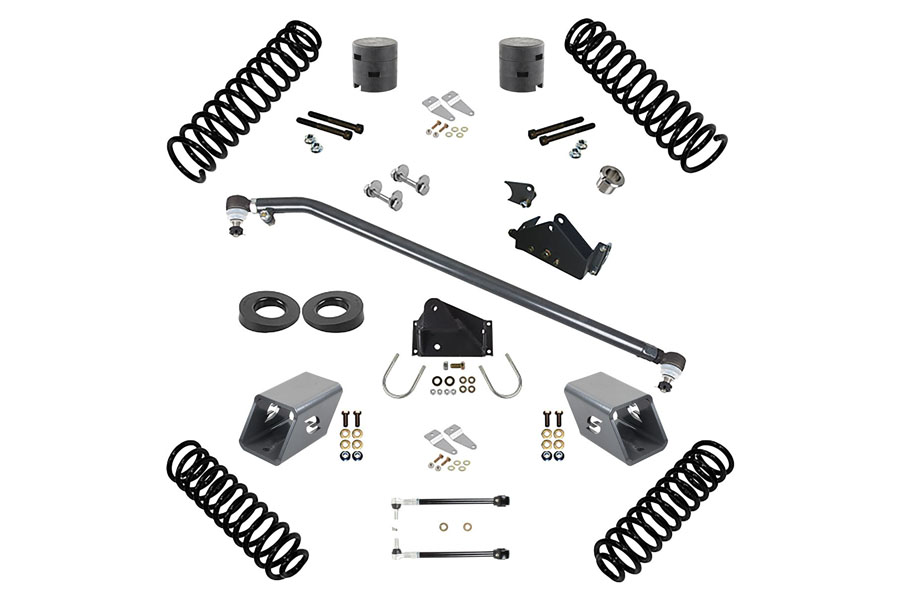

The stage 1.5 system will increase the lift height to 3" on your 4dr JK using the 3" progressive coil springs and it takes full advantage of the raised rear track bar bracket and the front steering correction kit so as to achieve optimal geometry of steering and suspension. With the steering corrected for the 3" of lift, the system will drive better than stock. The system will fit up to 35" tires that have stock fenders or a 37" tire with high fenders. This system features the front and rear track bar relocation brackets and a flipped drag link. It also comes with front and rear bump extension kits. It has a synergy double adjuster sleeve and a pinch bolt assembly that will allow for adjustment of the control arm, track bar, tie rod and a drag link length without removal. The suspension components have an abrasive resistant powder coat finish to give it maximum durability and corrosion resistance. This system also has a bolt on system for easy installation.

Features:

Stage 1.5 key features are front and rear track bar relocation brackets and flipped drag link

Front and rear bump stop extension kits

Rear sway bar links so the factory rears can be used in the front

Front and rear brake line relocation kits

Synergy double adjuster sleeve & pinch bolt assembly allows for adjustment of control arm, track bar, tie rod, and drag link length without removal

Front and rear track bar relocation brackets raise track bar mounting positions increasing suspension roll center heights which improves handling on and off road

Control arm cam bolt kit to correct caster

Progressive wound coil spring manufactured using the latest in CNC hot winding technology keeps spring from coming unbound at full suspension droop

Suspension components feature an abrasion-resistant powder coat finish for maximum durability and corrosion resistance

100% bolt on components assure an easy, trouble free installation with the use of basic hand tools

Requires a maximum 4-3/4" backspace wheel or wheel spacer with factory wheel setup. 4-1/2" back spacing is recommended

Synergy suspension systems are a modular design, so all components are available separately

Fitment Notes:

2012+ JK's lifted over 2" will require exhaust spacers (5017), or a front aftermarket drive shaft to prevent interference with the exhaust.

3" and up lifts, aftermarket driveshafts are recommended

Springs are designed to provide the advertised amount of lift with use of aftermarket bumpers, winches, & tire carriers. More lift will occur on vehicles in stock trim.

Springs retain the factory rake of the vehicle where the rear is higher than the front. Vehicle should sit level when loaded. Request one size shorter rear springs to level the vehicle out when unloaded.

Requires 16" or larger wheel diameter
