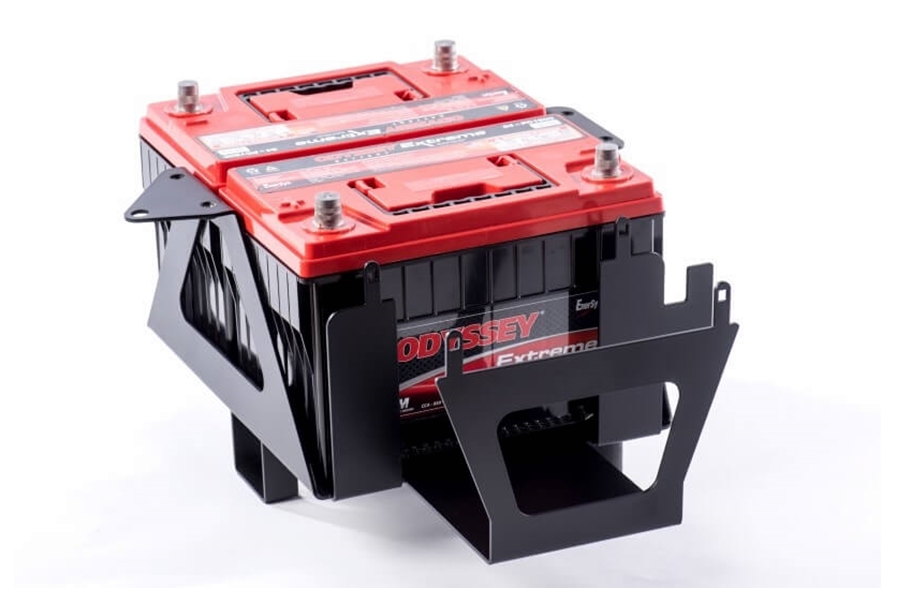

Batteries are sold separately. Matching Group 34 batteries are required.

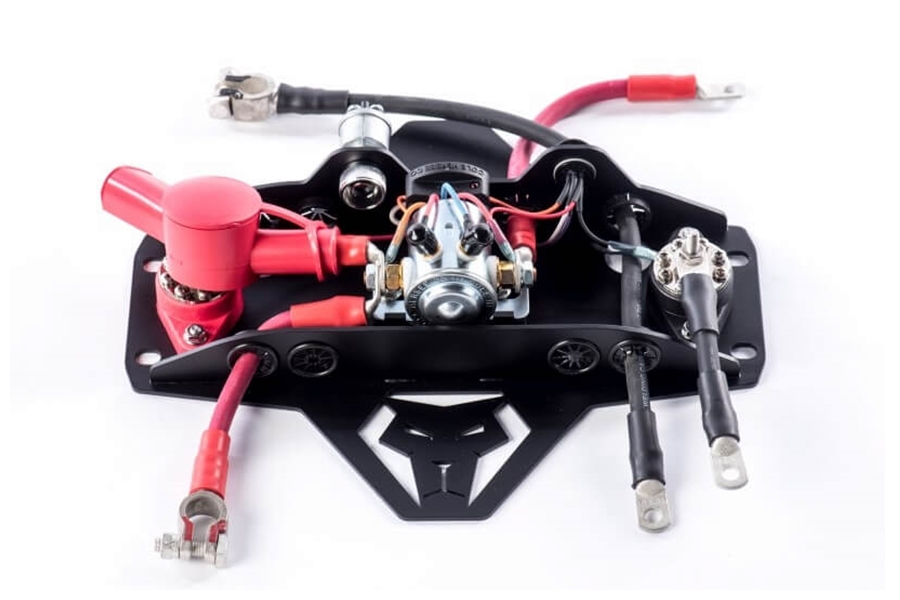

The top cover plate has several innovative features in a simple package. All of the wiring has already been done for you, and the smart isolator comes pre-installed. The welded gussets on top have holes with grommets to route the wires directly to the correct battery post, so there's no guesswork involved to make the connections.

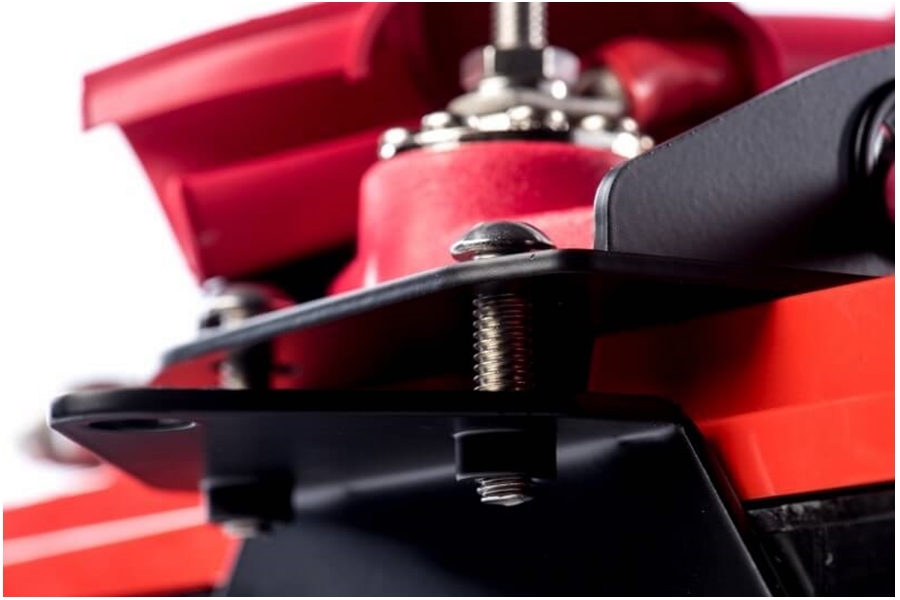

Use the extra grommets for routing your own accessory wires cleanly and neatly to the power and ground bus bars. High-quality battery terminal connectors are soldered and crimped to the flexible 2 gauge wire connecting the batteries together. With all the wiring integrated into the top plate, servicing your batteries has never been easier. Simply pull the terminals off the battery posts, remove the 4 easily accessible stainless fasteners securing the lid, and all the wiring can be lifted up and out of the way to service your batteries when necessary. The included smart isolator gives you automatic control of all the charging functions with no interaction required.
Details:
Completely pre-wired out of the box

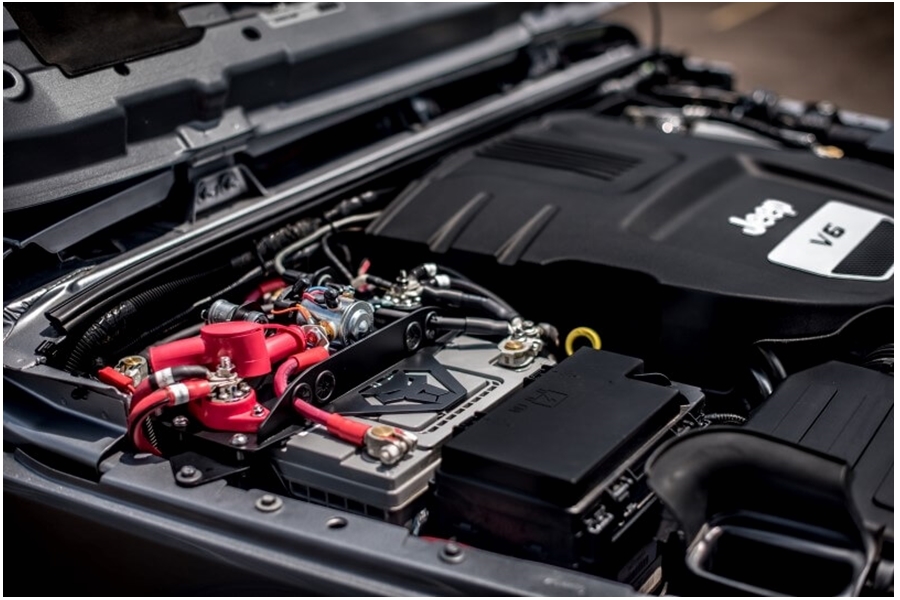

Fits 3.8L, Hemi 5.7L & 6.4L, LS, and European diesel engines
Boost switch included - jump start your vehicle off your second battery
Power & Ground bus bars make it easy to connect accessories
Smart Isolator automatically handles all charging functions
Interface port pre-wired for the G Screen monitoring system
Integrated fuse box holder and evap solenoid holder
Best quality wires, tin-plated copper connectors, sealed heat shrink tubing
Powder-coated for durability
Proudly made in the USA
Here's how it works:
When your cranking battery is fully charged at 13.2 volts, the smart isolator automatically connects the batteries together, and they are charged at the same time.
When you park and turn off the engine, but continue to use accessories such as lights or the stereo or a CB, both batteries begin to drain down.
When your main cranking battery reaches 12.7 volts, the smart isolator separates the batteries, so that your cranking battery will have enough power to start the engine. The second battery continues to power your accessories for as long as it will last.
Any accessories connected to the power and ground bus bars will run from the accessory battery. Your factory fuse box will still be powered by the main cranking battery.
After you crank the vehicle, your main cranking battery will be charged up to 13.2 volts first, and then the isolator will begin charging your accessory battery. By only charging one battery at a time, your alternator is protected from excessive strain.
What if your cranking battery is somehow drained down too low to be able to start the vehicle? We have a solution for that.
Press the Start Boost button and the isolator will connect both batteries together for 1 minute, acting like built-in jumper cables to jump-start your engine off your accessory battery.
As long as the combined voltage of the 2 batteries is at least 12.7 volts, you'll be able to start your vehicle instead of being stranded with a dead battery!
The alternator will charge both batteries for 1 minute, then switches back over to automatic mode to reduce the strain on your alternator.

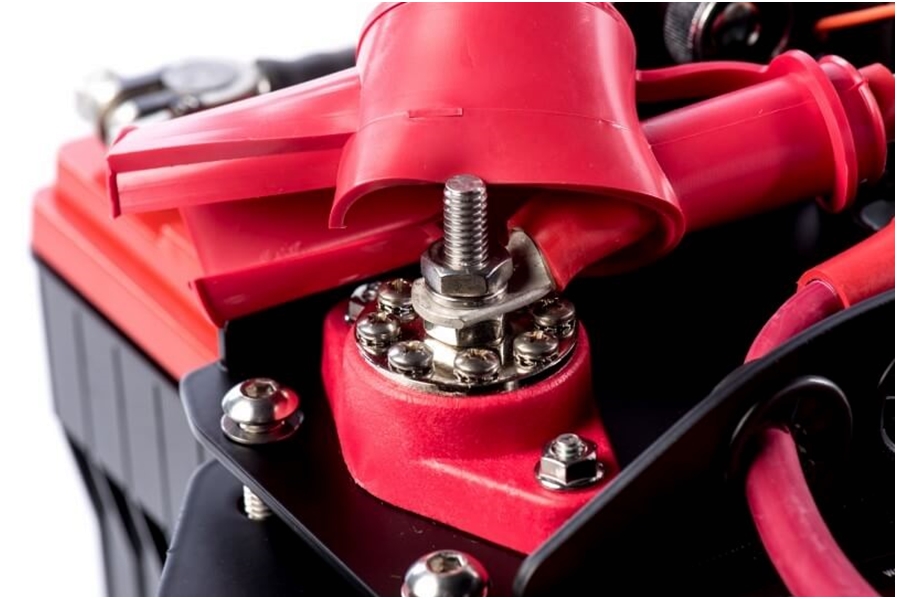

Also includes high amp power AND ground bus bars. The bus bars are prewired to the accessory battery. Now you can quickly and easily connect your winch, lights, amplifiers, and lots more while keeping the wiring neat and orderly. Your winch or other high-amp accessories go onto the large center post on the bus bars, and all your other accessories go directly to the smaller screw terminals on the bus bars.
Note: 2007-2011 model years require a short extension cable for the evap solenoid. The extension is made with OEM connectors to ensure a perfect watertight fit for easy installation. This piece is not required on 2012+ Wrangler JKs.

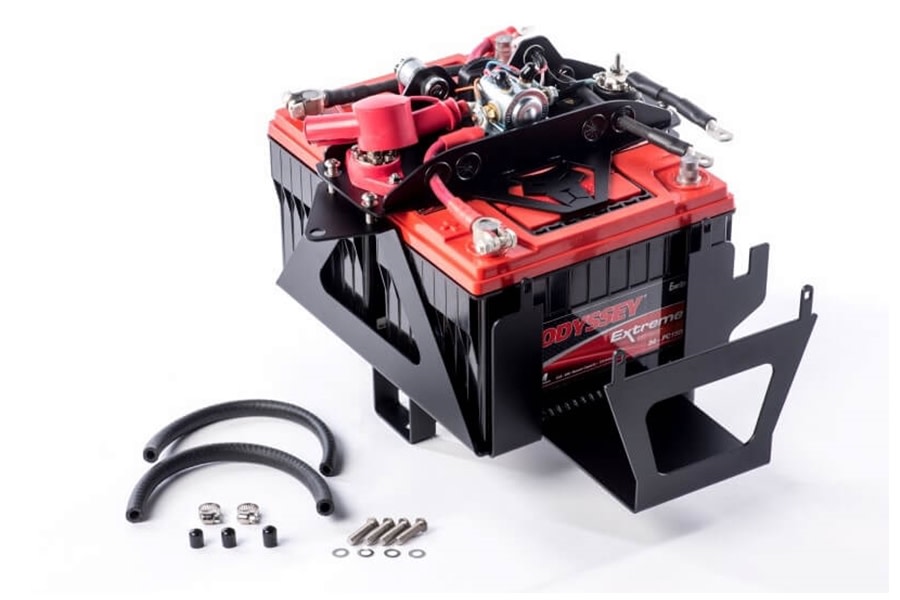

Kit Contents:

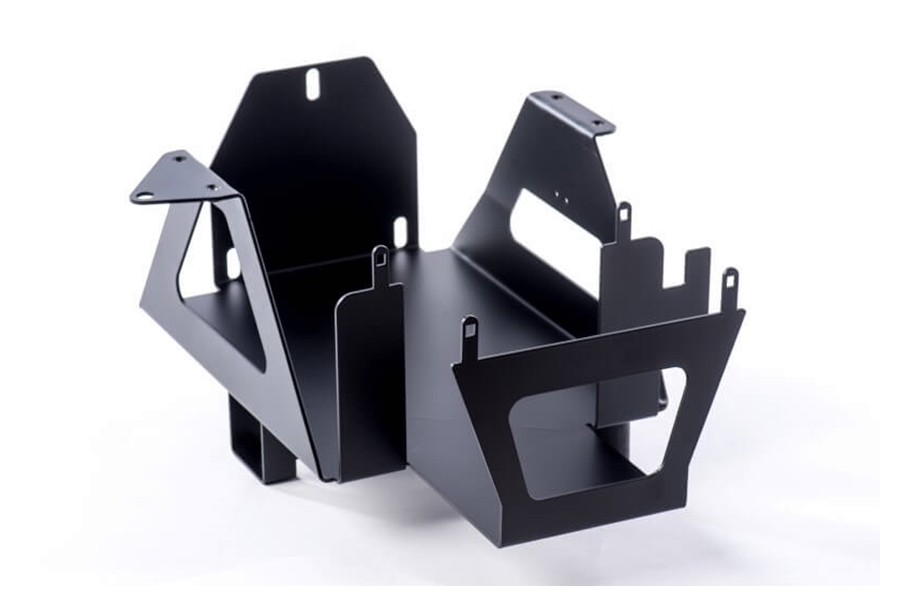

Battery Tray
Top Lid
Smart Isolator
Boost Switch
Power Bus Bar
Ground Bus Bar
G Screen Interface Port
All Wiring
Fuse Box Mount
Evap Solenoid Mount
Evap Hoses
Hose Clamps
Stainless Hardware
Firewall Nut Covers
Evap Solenoid Extension (Required for 2007-2011)
Installations Instructions
