Rock Krawler 3.5in Adventure Series 1 System Lift Kit

System Benefits:

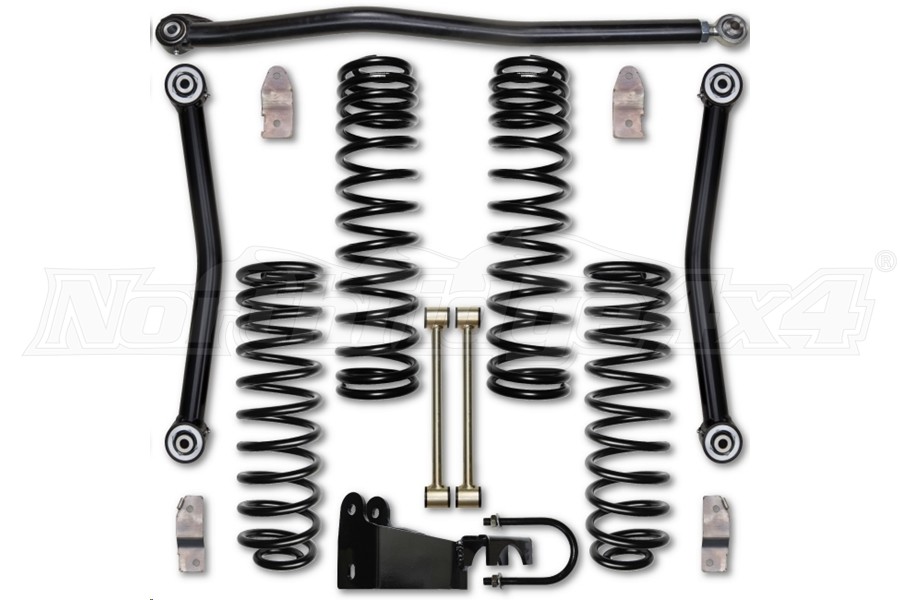

System Includes:
(4) Long travel functional multi rate coil springs
(1) Adjustable 1.5 inch solid alloy steel front anti-wobble track bar
(2) Front 1.625 inch solid steel lower control arms
(1) Rear track bar relocation bracket
(2) Front brake line relocation bracket
(2) Rear brake line relocation bracket
*includes all hardware and instructions

Bilstein 5100 Shocks:

Bilstein Part #

Front     24-186995

Rear       33-186887

If choosing a brand of shock that we have not provided a part number for, match
your shock choice as closely as possible to the generic length recommendations
below.

(We can not ensure that the valving profile in your shock choice will pair well with our kits. This is why we recommend using our RRD Racing shocks or the provided Bilstein part numbers)

Generic Front Shock
Recommendation with 3 inches bump stops - 17 inches Collapsed to 29 inches Extended

Generic Rear Shock
Recommendation with 3 inches bump stops - 17 inches Collapsed to 27 inches Extended

NOTES!
- We typically recommend 4.5 inches of back spacing on rims for 12.5 inch wide tires.

- For 2012 and newer models an aftermarket front driveshaft with 2 inch O.D. steel tubing is recommended, but not required.
