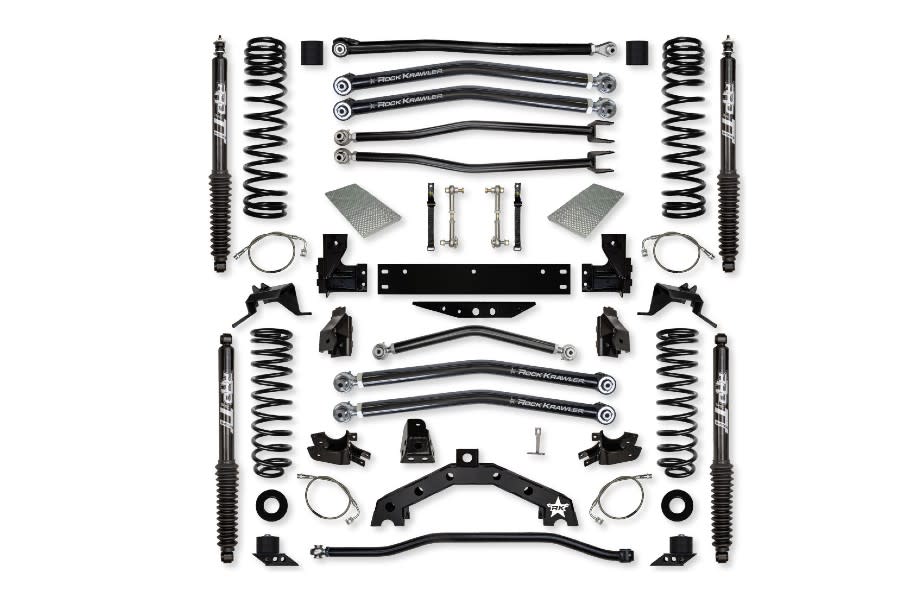

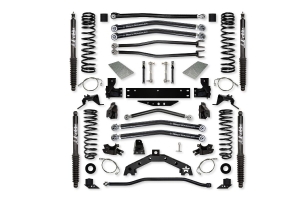

Rock Krawler 3.5in Adventure-X Long Arm Lift Kit - TT Shocks
JK 4dr
Product Resources
Features & Product Details
The Rock Krawler JK 3.5 Adventure-X Systems is the ultimate in compromise between daily driver/hard core off-roader. The Adventure-X systems combine the benefits of a full high clearance 4 link front suspension with a high clearance independent 3 link rear suspension. This is where conventional on road handling meets bad ass off-road ability. The rear system uses our tried and true independent 3 link conversion with X2 rear suspension geometry with enhanced rear instant center(s) and rear roll center(s). The new high clearance axle mounts provide 3.5” of ground clearance under the rear axle as compared to stock. The rear upper shock relocation brackets ensure you do not lose any shock or suspension travel. The combination of a full high clearance 4 link long arm front suspension and high clearance independent 3 link rear long arm suspension lets you dominate the streets and the trails.
System Benefits
General Notes:
*All lift heights based on Rubicon models for standard style build (i.e., front bumper and winch, rear bumper and full-size spare).
*If building with a spare delete, we recommend dropping 1” in coil lift height for the rear.
*If building an overland or heavily upfitted build in the back, we recommend upsizing 1” in coil lift height for the rear
*Requires removal of the OEM frame side front and rear lower control arm mounts.
*Requires removal of the OEM frame side front and rear upper control arm mounts.
*Requires welding of the front and rear frame side long arm mounts.
*Minor exhaust rerouting required before the collector on the driver's side. This is recommended to be done prior to the suspension system being installed.
*Requires removal of the OEM rear axle side brackets.
*Requires welding of the provided rear axle side control arm/shock/sway bar link bracket, track bar bracket and rear axle truss.
*Requires removal of the OEM frame side rear shock mount.
*Requires welding of the provided frame side rear shock mount.
*Rear shocks will require a standard bushing and sleeve just like the rear lower shock bushing and sleeve. We have removed the weakness of the bar pin setup with the supplied rear upper shock mounts.
*Recommend installing limiting straps to avoid over extension of suspension components after vehicle is all set up.
*Recommend 4.5” of back spacing on rims for 33” and 35” tall tires.
*Recommend 3.5” of back spacing on rims for 37” tall tires.
