Rock Krawler 4.5in Adventure-X Long Arm Lift Kit - JK 4Dr

Rock Krawler 4.5in Adventure-X Long Arm Lift Kit

JK 4Dr

Rock Krawler 4.5in Adventure-X Long Arm Lift Kit - JK 4Dr
INCLUDED IN PRICE
$4,438.27
+$ Oversize Shipping Surcharge

You will earn Reward Points with this Purchase.
Write a Review | Q&A
Part # JK45AXLA-4We price match! Call 866-601-5340!
ANY QUESTIONS?

Product Resources

Features & Product Details

The Rock Krawler JKU 4.5 Adventure-X Systems is the ultimate in compromise between daily driver & hard core off-roader. The Adventure-X systems combine the benefits of a full high clearance 4 link front suspension with a high clearance independent 3 link rear suspension. This is where conventional on road handling meets bad ass off-road ability.

The rear system uses our tried and true independent 3 link conversion with X2 rear suspension geometry with enhanced rear instant center(s) and rear roll center(s). The new high clearance axle mounts provide 3.5” of ground clearance under the rear axle as compared to stock. The rear upper shock relocation brackets ensure you do not lose any shock or suspension travel. The combination of a full high clearance 4 link long arm front suspension and high clearance independent 3 link rear long arm suspension lets you dominate the streets and the trails.

System Benefits

  • Excellent Highway Ride
  • Improved Off-Road Ability
  • High Steer Upgrade
  • Full High Clearance Design
  • High Clearance 4 Link Long Arm Front Suspension
  • High Clearance Independent 3 Link Long Arm Rear Suspension
  • Weld on Long Arm Mounting Brackets with Weld Scheduling just like OEM
  • Heat Shield thermal barrier products, just like OEM to protect the front control arm joints at the frame
  • 3.5” Rear Clearance Gain from the X2 Axle Bracket System
  • Adjustable Rear Anti-Squat Featuring X2 Geometry
  • Designed to be the Ultimate Compromise between On Highway Handling and Hard Core Off-Road Ability

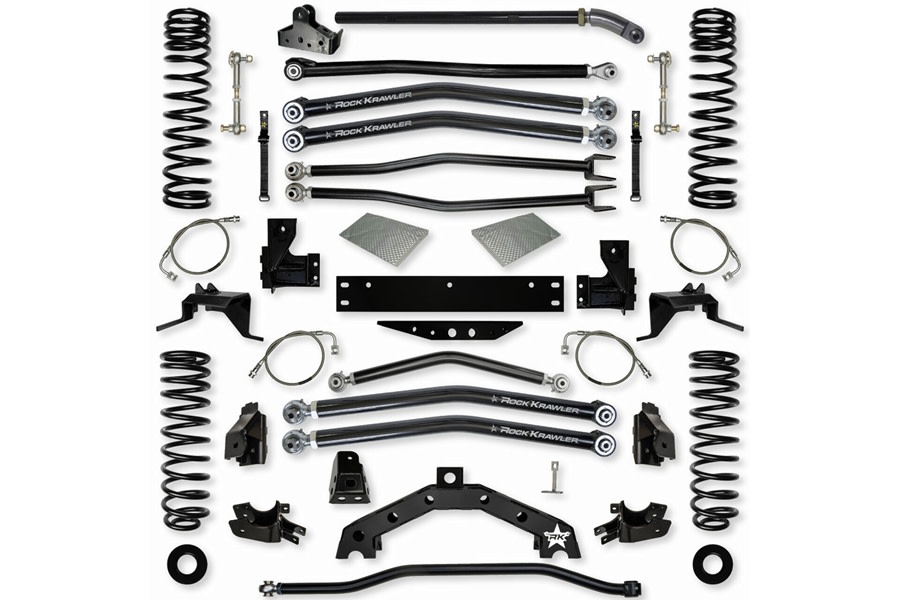

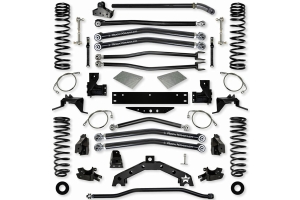

  • System Includes:

  • (2)Front frame side weld-on long arm mount
  • (2) Heat Shield Products thermal barrier
  • (1) Front axle side weld-on track bar bracket
  • (1) Pro series drag link
  • (1) 1/4” thick laser cut steel cross member
  • (2) Front high clearance adjustable lower control arm
  • (2) Front adjustable upper control arm
  • (1) Front adjustable anti-wobble track bar
  • (1) Front sway bar disconnect kit
  • (2) Front triple rate coil spring
  • (2) Rear frame side weld-on lower control arm mount
  • (2) Rear high clearance adjustable lower control arm
  • (1) Rear double adjustable upper control arm
  • (1) Rear adjustable anti-wobble track bar
  • (1) Rear weld-on dual sport track bar bracket
  • (1) Rear weld-on axle truss
  • (2) Rear frame side weld-on lower control arm mount
  • (2) Rear frame side weld-on shock mount
  • (2) Rear axle side high clearance control arm/shock/sway bar link mount
  • (2) Rear triple rate coil spring
  • (2) Front extended brake line
  • (2) Rear extended brake line
  • *hardware and detailed instructions

    General Notes:

    *All lift heights based on Rubicon models for standard style build (i.e. front bumper and winch, rear bumper and full size spare).

    *If building with a spare delete we recommend dropping 1” in coil lift height for the rear.

    *If building an overland or heavily upfitted build in the back, we recommend upsizing 1” in coil lift height for the rear

    *Requires removal of the OEM frame side front and rear lower control arm mounts.

    *Requires removal of the OEM frame side front and rear upper control arm mounts.

    *Requires welding of the front and rear frame side long arm mounts.

    *Minor exhaust rerouting required before the collector on the driver's side. This is recommended to be done prior to the suspension system being installed.

    *Requires removal of the OEM rear axle side brackets.

    *Requires welding of the provided rear axle side control arm/shock/sway bar link bracket, track bar bracket and rear axle truss.

    *Requires removal of the OEM frame side rear shock mount.

    *Requires welding of the provided frame side rear shock mount.

    *Rear shocks will require a standard bushing and sleeve just like the rear lower shock bushing and sleeve. We have removed the weakness of the bar pin setup with the supplied rear upper shock mounts.

    *Recommend installing limiting straps to avoid over extension of suspension components after vehicle is all set up.

    *This system allows the rear axle to be pushed back up to 1” over stock which perfectly centers the rear axle assembly under typical aftermarket flat fenders. It also allows for larger tires without contacting the rock sliders or rear pinch seam.

    *The rear upper third link is designed around standard low pinion rear axles. When ordering for high pinion rear axles please contact us directly so we can ensure proper fitment as best as possible.

    *We typically recommend 4.5” of back spacing on rims for 33” and 35” tall tires.

    *We typically recommend 3.5” of back spacing on rims for 37/38” tall tires.

    Specifications

    Brand: Rock Krawler
    Kit Package: Yes
    Mfgr. Warranty: See Individual Parts
    Condition: New Product
    Return Policy:
    Standard

    PEOPLE WHO VIEWED THIS ITEM ALSO VIEWED

    REVIEWS & CUSTOMER MEDIA

    Be the first to write a review

    QUESTIONS & ANSWERS

    No questions have been asked about this product.

    This Part Fits

    Jeep Wrangler JK
    Unlimited
    2012 Jeep Wrangler JK Unlimited
    Unlimited 70th Anniversary
    2011 Jeep Wrangler JK Unlimited 70th Anniversary
    Unlimited Altitude
    2012 Jeep Wrangler JK Unlimited Altitude
    2018 Jeep Wrangler JK Unlimited Altitude
    Unlimited Freedom Edition
    2018 Jeep Wrangler JK Unlimited Freedom Edition
    Unlimited Hard Rock
    2015 Jeep Wrangler JK Unlimited Hard Rock
    Unlimited Islander
    2010 Jeep Wrangler JK Unlimited Islander
    Unlimited Mountain
    2010 Jeep Wrangler JK Unlimited Mountain
    2012 Jeep Wrangler JK Unlimited Mountain
    Unlimited Rubicon
    2007 Jeep Wrangler JK Unlimited Rubicon
    2008 Jeep Wrangler JK Unlimited Rubicon
    2009 Jeep Wrangler JK Unlimited Rubicon
    2010 Jeep Wrangler JK Unlimited Rubicon
    2011 Jeep Wrangler JK Unlimited Rubicon
    2012 Jeep Wrangler JK Unlimited Rubicon
    2013 Jeep Wrangler JK Unlimited Rubicon
    2014 Jeep Wrangler JK Unlimited Rubicon
    2015 Jeep Wrangler JK Unlimited Rubicon
    2016 Jeep Wrangler JK Unlimited Rubicon
    2017 Jeep Wrangler JK Unlimited Rubicon
    2018 Jeep Wrangler JK Unlimited Rubicon
    Unlimited Rubicon Recon
    2017 Jeep Wrangler JK Unlimited Rubicon Recon
    2018 Jeep Wrangler JK Unlimited Rubicon Recon
    Unlimited Sahara
    2007 Jeep Wrangler JK Unlimited Sahara
    2008 Jeep Wrangler JK Unlimited Sahara
    2009 Jeep Wrangler JK Unlimited Sahara
    2010 Jeep Wrangler JK Unlimited Sahara
    2011 Jeep Wrangler JK Unlimited Sahara
    2012 Jeep Wrangler JK Unlimited Sahara
    2013 Jeep Wrangler JK Unlimited Sahara
    2014 Jeep Wrangler JK Unlimited Sahara
    2015 Jeep Wrangler JK Unlimited Sahara
    2016 Jeep Wrangler JK Unlimited Sahara
    2017 Jeep Wrangler JK Unlimited Sahara
    2018 Jeep Wrangler JK Unlimited Sahara
    Unlimited Sport
    2010 Jeep Wrangler JK Unlimited Sport
    2011 Jeep Wrangler JK Unlimited Sport
    2012 Jeep Wrangler JK Unlimited Sport
    2013 Jeep Wrangler JK Unlimited Sport
    2014 Jeep Wrangler JK Unlimited Sport
    2015 Jeep Wrangler JK Unlimited Sport
    2016 Jeep Wrangler JK Unlimited Sport
    2017 Jeep Wrangler JK Unlimited Sport
    2018 Jeep Wrangler JK Unlimited Sport
    Unlimited Sport S
    2016 Jeep Wrangler JK Unlimited Sport S
    2017 Jeep Wrangler JK Unlimited Sport S
    2018 Jeep Wrangler JK Unlimited Sport S
    Unlimited Willys Wheeler
    2014 Jeep Wrangler JK Unlimited Willys Wheeler
    2018 Jeep Wrangler JK Unlimited Willys Wheeler
    Unlimited Willys Wheeler W
    2018 Jeep Wrangler JK Unlimited Willys Wheeler W
    Unlimited X
    2007 Jeep Wrangler JK Unlimited X
    2008 Jeep Wrangler JK Unlimited X
    2009 Jeep Wrangler JK Unlimited X
    2010 Jeep Wrangler JK Unlimited X
    2011 Jeep Wrangler JK Unlimited X
