Rock Krawler 2.0in Adventure-X PRO Mid-Arm Suspension System - No Shocks
JT 3.6L
Product Resources
Features & Product Details

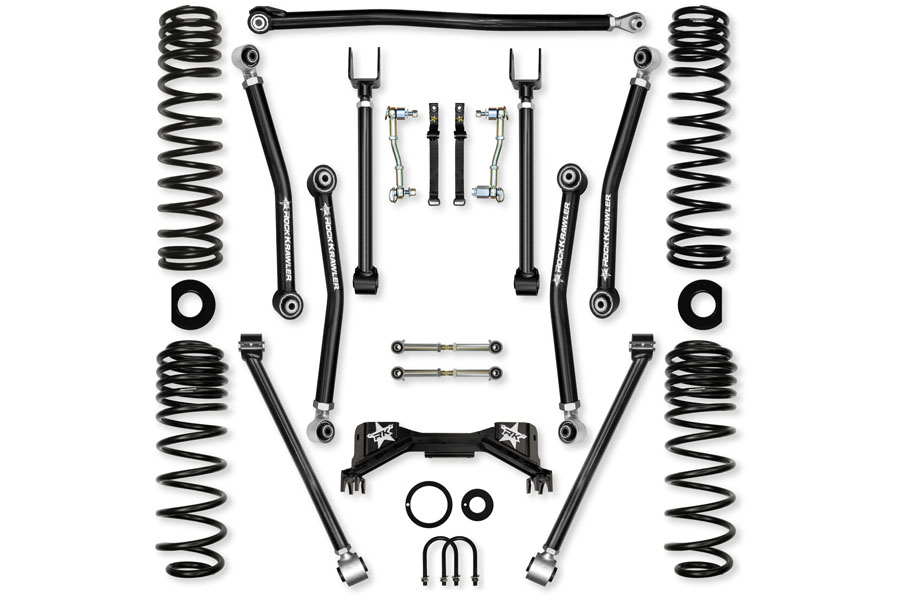

The Rock Krawler 2.0" ADVENTURE - X PRO Mid-Arm System is specifically designed Sport, Mojave and Overland owners who want a complete system, bolt-in installation, and some of the best articulation of any MID-ARM kit on the market. This system proves its durability and off-road performance every time you hit the streets or trail! The Term, Adventure - X, comes from the inclusion of 8 adjustable control arms with Rock Krawler's 100% Service Free Adventure Series joints installed.

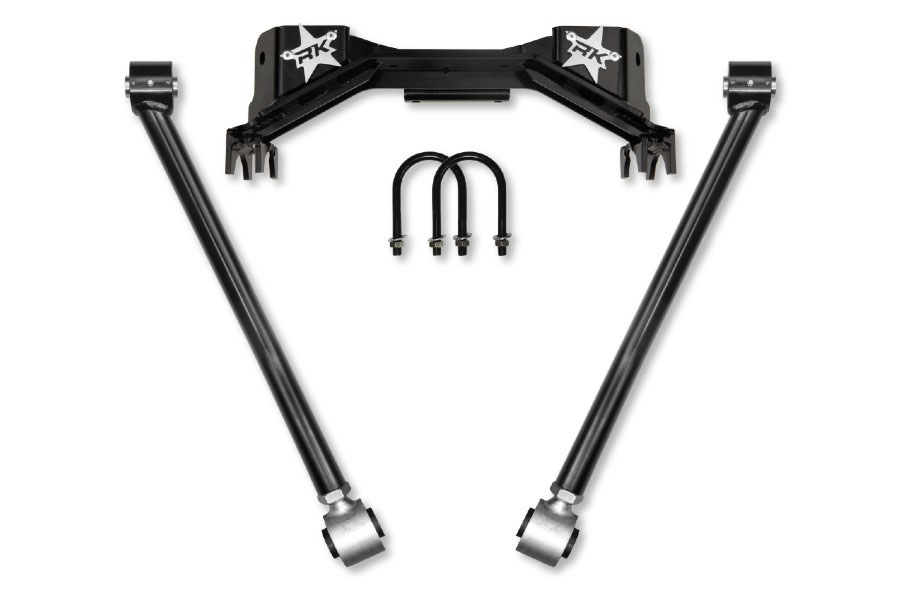

The kit becomes the "PRO" version due to the rear Bolt-in triangulated upper control arms. The triangulated 4-link rear assembly keeps the rear axle perfectly centered; allows for removal of the rear track bar, eliminates rear suspension bind, and the cross talk of the front and rear track bar arrangement, therefore greatly smoothing the highway ride. The leading industry, Adventure - X mid-Arms, feature adjustable upper and lower control arms and offer a total of 70 degrees of misalignment when paired with the Adventure series Joints at the frame connection and at the axle. The inherent bind in a factory JT control arm is greatly reduced.
With so much adjustability, it allows you to precision tune the JT's caster and pinion angle front and rear. Driving you home with the most comfortable ride possible in a Gladiator, are Rock Krawler's TRIPLE RATE front coils and QUAD RATE rear coils. All 4 coils work together to achieve excellent on-road comfort that we feel is better than the OEM springs. The coil itself is built with the proper "Free length" for off-road articulation and stays firmly seated in the coil bucket (as long as a proper length shock is installed), and overall, a very controlled reaction to bumps, rocks, sand, mud and whatever else you can manage to throw at them! All Rock Krawler JT systems include correction pads that reduce the spring bow inherent in the factory set up.
The provided track bar geometry corrections, up front and removal of it in the rear in favor of triangulation, lets you perfectly center the axles so there is no compromise in on road handling. When Rock Krawler's design a system, their goal is to provide you with the most comprehensive solution and the best geometry, install exceptional value, and be the foundation for every adventure whether it be on the Street, In tow, or down a Trail! Thank you for considering Rock Krawler Suspension.
System Benefits:
System Includes:
Wheel Fitment:
Sport and Overland Wheel Fitment Recommendations
Mojave Fitment Recommendations
Tire Fitment:
General Notes:
