BDS Suspension Fox 2.0 Performance Series 4 Inch Lift  - JK 2dr

BDS Suspension Fox 2.0 Performance Series 4 Inch Lift

JK 2dr

BDS Suspension Fox 2.0 Performance Series 4 Inch Lift  - JK 2dr
INCLUDED IN PRICE
You will earn Reward Points with this Purchase.
Write a Review | Q&A
Part # 1417FSWe price match! Call 866-601-5340!
We Price Match
ANY QUESTIONS?

Product Resources

Features & Product Details

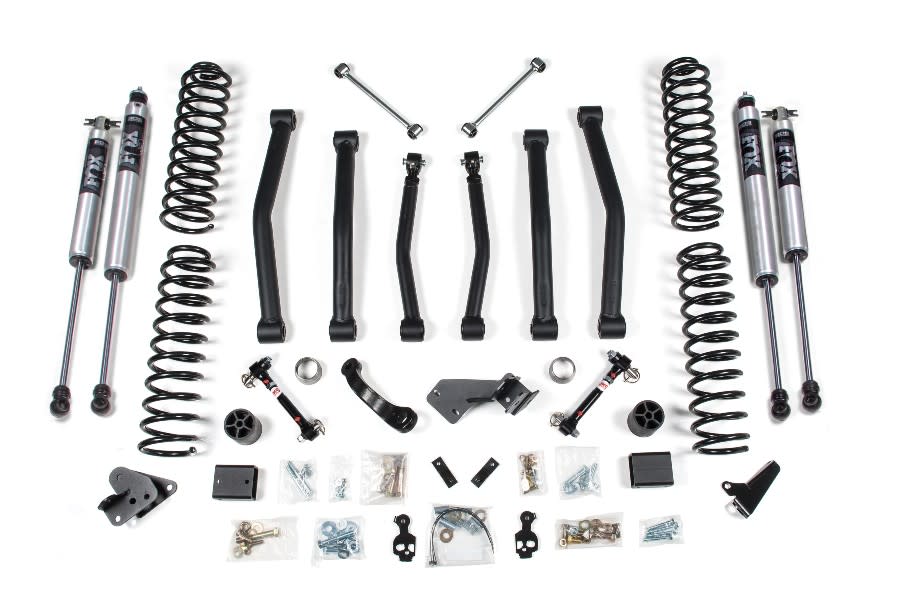

Take your 2012-2018 Jeep Wrangler JK 2 Door to the next level and improve the ride with this 4-inch lift kit from BDS Suspension. Designed to improve stance this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

Up front the lift kit includes 4" Pro-Ride coil springs capable of full coil bind and 3" bump stop extensions to control the compression travel, but increase wheel travel. Also included are brake line brackets, sway bar links, and front track bar relocation bracket and pitman arm to improve the steering and handling geometry. The front suspension in this 4-inch lift kit is finished off with fixed length lower control arms with OE grade rubber bushings that re-position the front axle for proper alignment.

In the rear the kit utilizes Pro-Ride coil springs, sway bar drop brackets, and a rear frame mounted track bar relocation bracket to correct axle shift. For proper rear axle position and pinion angle this kit includes fixed length rear lower control arms and adjustable rear upper arms. Round out this 4" lift kit with FOX 2.0 IFP performance series gas shocks to offer improved damper performance.

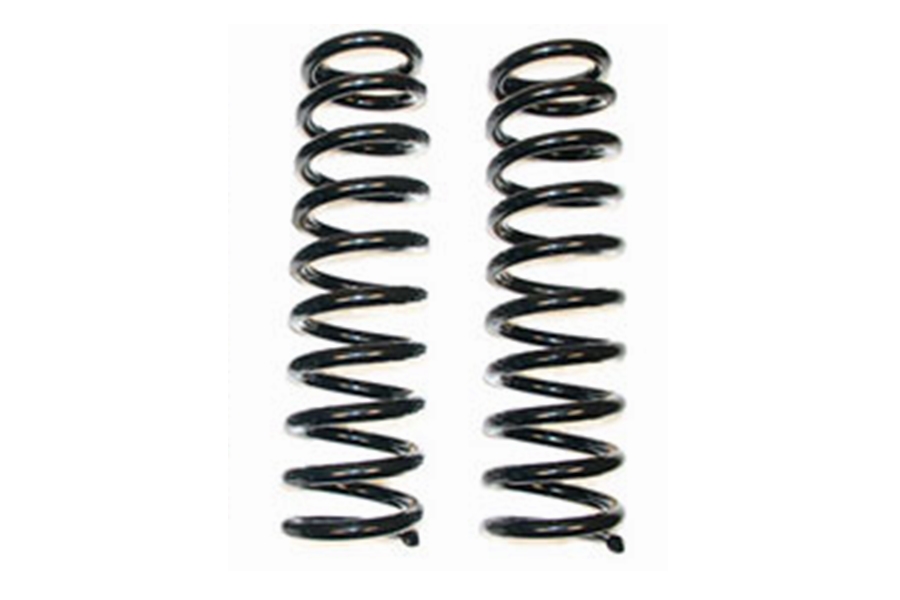

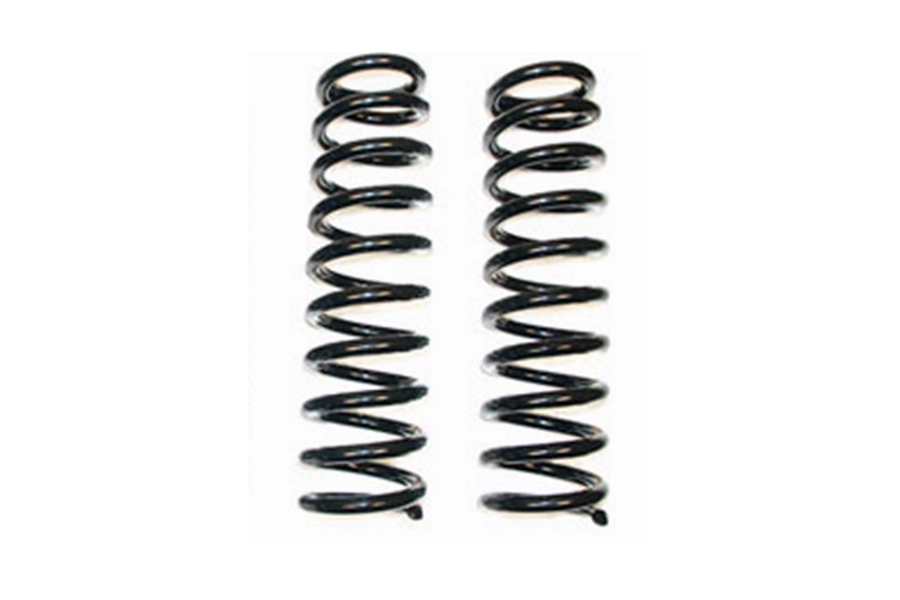

Pro-Ride Coil Springs

A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Features & Benefits

  • ProRide coil springs offer improved ride quality and more articulation
  • Sway bar quicker disconnects and extended rear link for improved offroad flex
  • New control arms to properly control the front and rear axle positions
  • Rear track bar bracket repositions rear axle under vehicle
  • FOX 2.0 IFP performance series shocks for improved damping
  • Allows clearance for 37" tires
  • Recommended Tires & Wheels
  • 37 x 12.5 with 16 x 8 and 4.5 in. Backspace

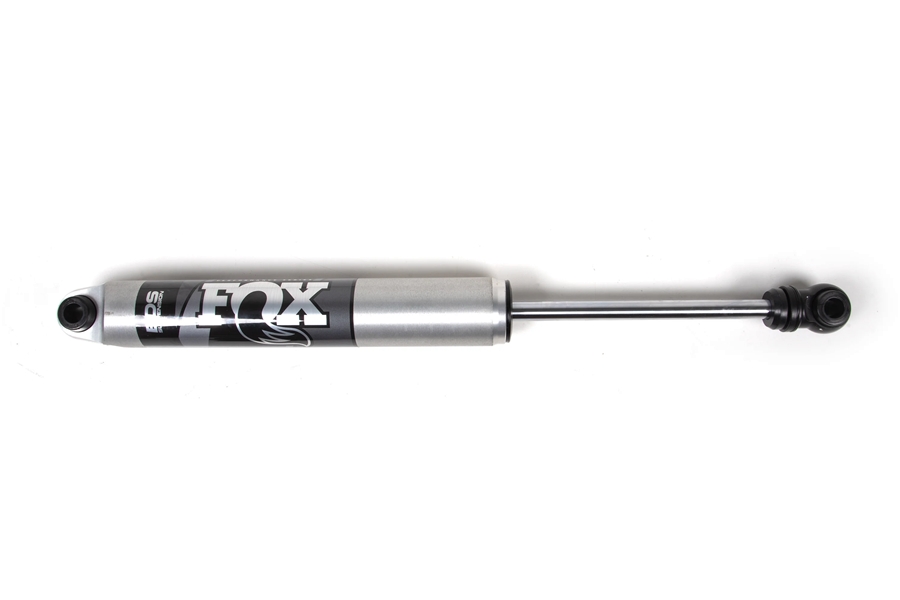

  • FOX 2.0 Performance Series
  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish
  • Fixed Links

  • Required for use on Rubicon models with electronic disconnect.
  • Improves handling with proper sway bar operating angle
  • Heavy-duty steel construction with zinc finish
  • Polyurethane hourglass bushings for long life and quiet operation
  • Specifications

    Brand: BDS Suspension
    Kit Package: Yes
    Mfgr. Warranty: 1 Year
    Condition: New Product
    Return Policy:
    Standard

    PEOPLE WHO VIEWED THIS ITEM ALSO VIEWED

    REVIEWS & CUSTOMER MEDIA

    Be the first to write a review

    QUESTIONS & ANSWERS

    No questions have been asked about this product.

    This Part Fits

    Jeep Wrangler JK
    70th Anniversary
    2011 Jeep Wrangler JK 70th Anniversary
    Altitude
    2018 Jeep Wrangler JK Altitude
    Freedom Edition
    2018 Jeep Wrangler JK Freedom Edition
    Islander
    2010 Jeep Wrangler JK Islander
    Mountain
    2010 Jeep Wrangler JK Mountain
    Rubicon
    2007 Jeep Wrangler JK Rubicon
    2008 Jeep Wrangler JK Rubicon
    2009 Jeep Wrangler JK Rubicon
    2010 Jeep Wrangler JK Rubicon
    2011 Jeep Wrangler JK Rubicon
    2012 Jeep Wrangler JK Rubicon
    2013 Jeep Wrangler JK Rubicon
    2014 Jeep Wrangler JK Rubicon
    2015 Jeep Wrangler JK Rubicon
    2016 Jeep Wrangler JK Rubicon
    2017 Jeep Wrangler JK Rubicon
    2018 Jeep Wrangler JK Rubicon
    Rubicon Recon
    2017 Jeep Wrangler JK Rubicon Recon
    2018 Jeep Wrangler JK Rubicon Recon
    Sahara
    2007 Jeep Wrangler JK Sahara
    2008 Jeep Wrangler JK Sahara
    2009 Jeep Wrangler JK Sahara
    2010 Jeep Wrangler JK Sahara
    2011 Jeep Wrangler JK Sahara
    2012 Jeep Wrangler JK Sahara
    2013 Jeep Wrangler JK Sahara
    2014 Jeep Wrangler JK Sahara
    2015 Jeep Wrangler JK Sahara
    2016 Jeep Wrangler JK Sahara
    2017 Jeep Wrangler JK Sahara
    2018 Jeep Wrangler JK Sahara
    Sport
    2010 Jeep Wrangler JK Sport
    2011 Jeep Wrangler JK Sport
    2012 Jeep Wrangler JK Sport
    2013 Jeep Wrangler JK Sport
    2014 Jeep Wrangler JK Sport
    2015 Jeep Wrangler JK Sport
    2016 Jeep Wrangler JK Sport
    2017 Jeep Wrangler JK Sport
    2018 Jeep Wrangler JK Sport
    Sport S
    2016 Jeep Wrangler JK Sport S
    2017 Jeep Wrangler JK Sport S
    2018 Jeep Wrangler JK Sport S
    Willys Wheeler
    2014 Jeep Wrangler JK Willys Wheeler
    2018 Jeep Wrangler JK Willys Wheeler
    Willys Wheeler W
    2018 Jeep Wrangler JK Willys Wheeler W
    X
    2007 Jeep Wrangler JK X
    2008 Jeep Wrangler JK X
    2009 Jeep Wrangler JK X
    2010 Jeep Wrangler JK X
    2011 Jeep Wrangler JK X
    X-S
    2009 Jeep Wrangler JK X-S
