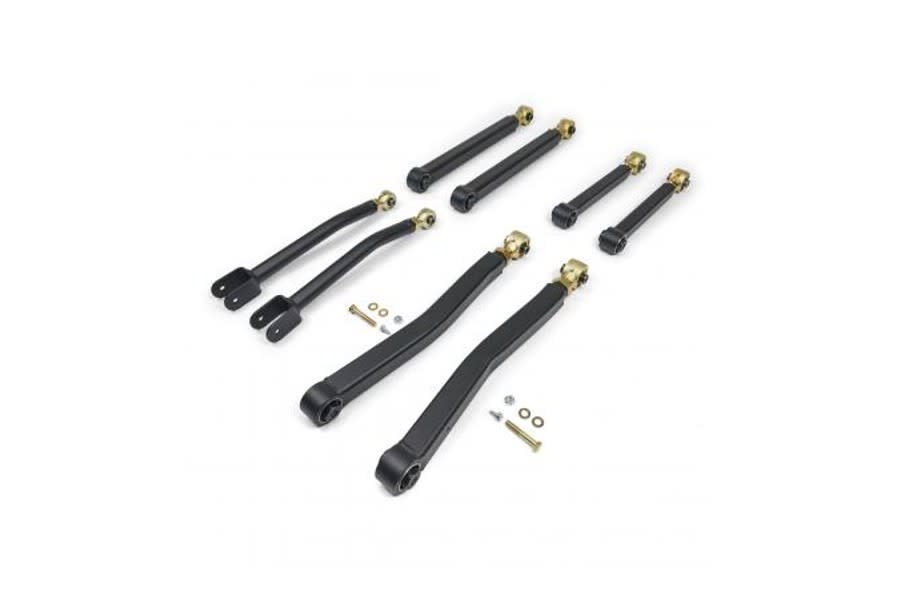

Clayton Short Control Arm Kit  - JT

Clayton Short Control Arm Kit

JT

Clayton Short Control Arm Kit  - JT
Write a Review | Q&A
Part # 1810200
$1,449.00

Product will ship from manufacturer, average time to ship: 30 business days

Product Resources

Features & Product Details

Over new Overland Plus control arms offer Giiro joints at both ends of your lower control arms. The Giiro Joint is a dual durometer, self-centering joint, that is maintenance free.

The outside part of the bushing is softer, to isolate road noise and vibrations and allow the bushing to articulate. It has 13.3 degree of movement in each direction, or 26.6 degrees combined per bushing. Since we use these bushing at both ends, you have over 50 degrees of unrestricted movement. The inside area of the bushing is harder, and Teflon infused to act as a bearing surface for the center pin which is free to twist as the suspension moves up and down. Better flex joints, the original Currie Johnny Joints. Providing maximum movement, to keep your tires on the ground for better traction. And by letting the control arms flex, you put less stress on your OEM frame brackets. Combined with our 1/4 wall tubing lower control arm tubing, premium tube inserts, 5/16s thick welded lower control arm housing and a forged adjuster, you have the Ultimate control arms available.

Features

  • 8 Adjustable Control Arms
  • Maintenance FREE Giiro Joints
  • Dual Durometer, Self-Centering
  • Bolt in Design
  • GIIRO Joints to Isolate Road Noise & Vibration
  • Johnny Joints to Provide Superior Flex
  • Precision Bent Front Lower for Tire Clearance
  • Front Lowers

  • Center to Center STOCK = 24.000"
  • Center to Center MIN = 23.9375"
  • Center to Center MAX = 24.880"
  • Front Uppers

  • Center to Center STOCK = 21.100"
  • Center to Center MIN = 19.130"
  • Center to Center MAX = 22.283"
  • Rear Lowers

  • Center to Center STOCK = 23.750"
  • Center to Center MIN = 23.4375"
  • Center to Center MAX = 25.125"
  • Rear Uppers

  • Center to Center STOCK = 16.375"
  • Center to Center MIN = 16.0625"
  • Center to Center MAX = 17.4375"
  • Specifications

    Brand: Clayton
    Adjustable: Yes
    Color: Black
    Location: Front and Rear
    Qty: 8
    Mfgr. Warranty: Lifetime Warranty
    Condition: New Product
