- 2.5in Lifts >AEV 2.5in DualSport XT Suspension System - JK 4DR

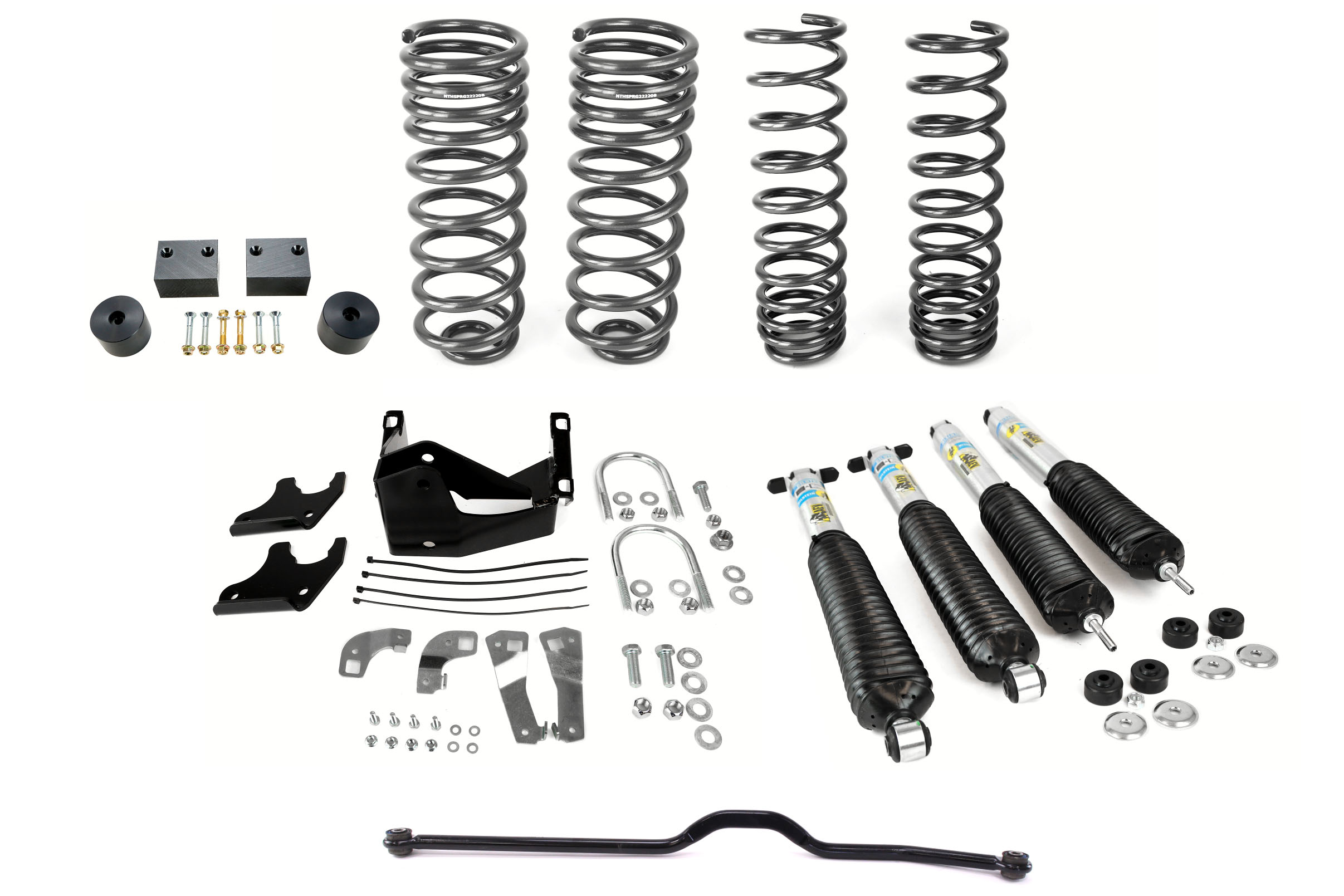

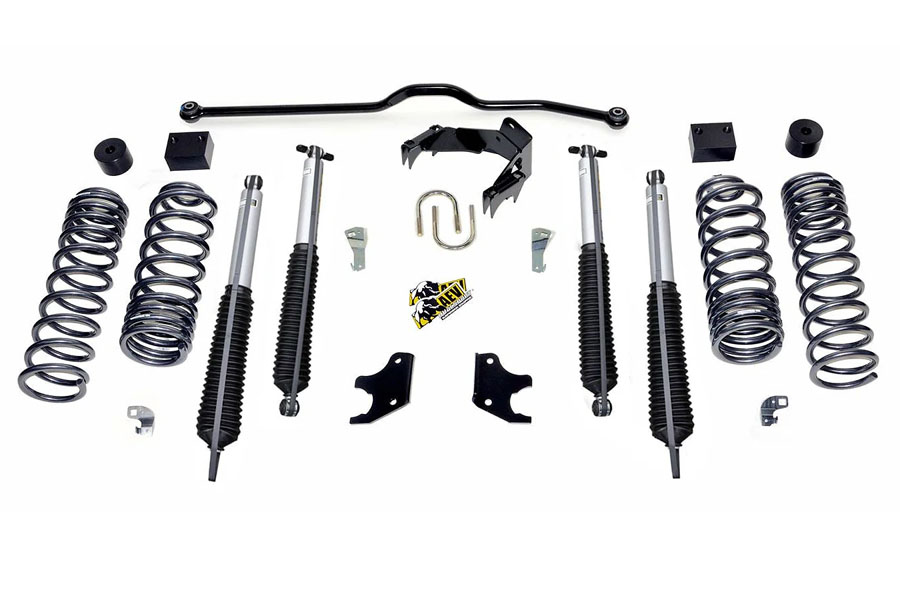

AEV 2.5in DualSport XT Suspension System
JK 4DR
AEV Shocks for DualSport 2.5in XT Suspension System
JK 4DR
AEV Bump Stop Spacer Kit
JK 4DR
AEV Rear Trackbar Modified Kit
JK 4DR
AEV Coil Springs 2.5in Full Set
JK 4DR
AEV Con Box
JK 4DR
Features & Product Details
Jeep AEV 2.5" DualSport XT Suspension System Features:
Impressive ride quality and comfort
Accommodates 33" and 35" tires
No exhaust modifications required
Includes AEV front & rear shocks
Bump stop spacer kit
High-quality coil springs
Rear modified track bar
Straightforward installation
Complete Suspension Overhaul for Jeep JK 4DR
When you want the highway and trail performance of AEV's taller 3.5" and 4.5" DualSport Systems, but with reduced height, This 2.5" XT DualSport Suspension System is the way to go. AEV paid attention to detail when it comes to both tuning and geometry in this new system of theirs. The included specially tuned coils and performance shocks have been designed to meet the needs of the lower system, resulting in frequency-tuned triple rate coils at all four corners for consistent performance. Additionally, this system was tested for both cornering and braking, and determined that a new geometry-corrected rear Track-Arm tower would be needed to create improved handling that AEV suspensions are expected to have.
Premium Construction & Warranty Info
AEV designed this 2.5-inch DualSport XT Suspension System using premium materials for maximum strength and long-lasting functionality. Featuring a more user-friendly lift height, this suspension overhaul will take you to places less traveled thanks to an increase in ground clearance and better capabilities off-road. Installation for this kit was made for a direct, bolt on process with the included mounting instructions and hardware. No exhaust modifications are required when running this kit, and will even accommodate up to a 35" tire to help transform your Jeep into a complete off-road machine.
Specifications
Brand:
AEV
Kit Package:
Yes
Mfgr. Warranty:
1 Year
Condition:
New Product
Return Policy:
Standard

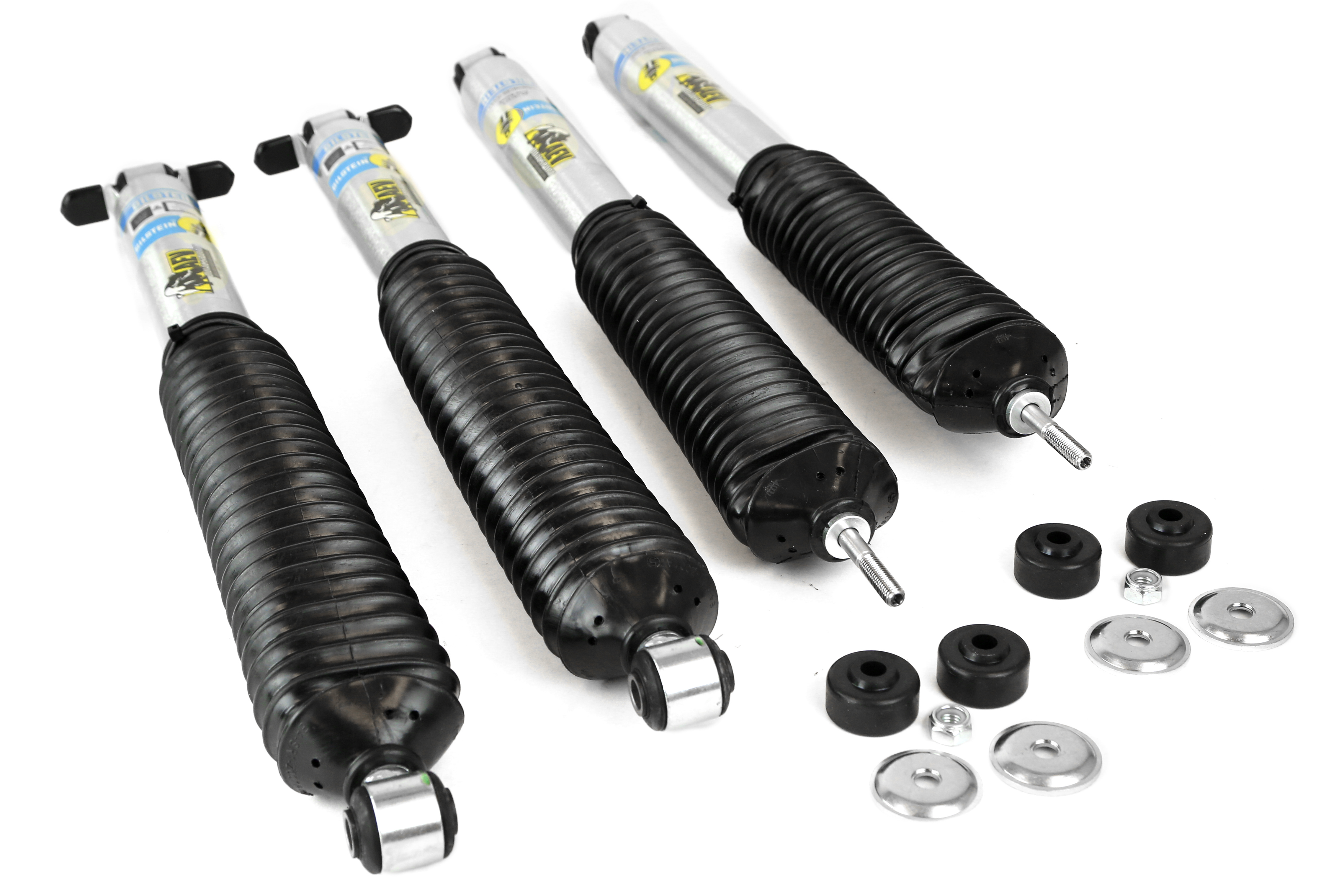

AEV Shocks for DualSport 2.5in XT Suspension System
Adjustable:
No
Color:
Silver
Damper Type:
Monotube
Install Method:
Bolt On
Location:
Front and Rear
Material:
6061-T6 Aluminum
Qty:
4
Front Collapsed Length:
Not Provided
Front Extended Length:
Not Provided
Rear Collapsed Length:
Not Provided
Rear Extended Length:
Not Provided

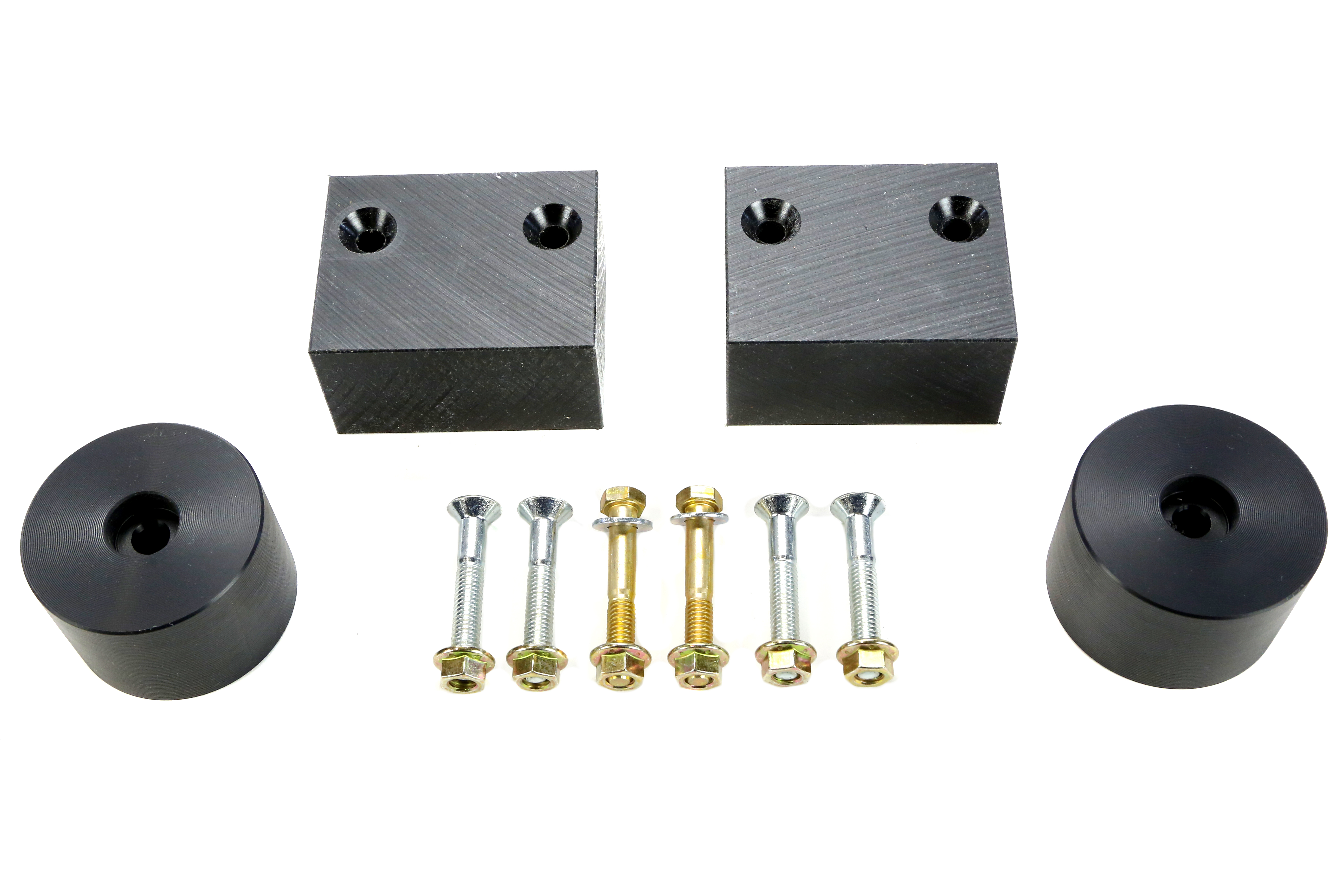

AEV Bump Stop Spacer Kit
Adjustable:
No
Color:
Black
Location:
Front and Rear
Qty:
2
Size:
2.50in
Type:
Static

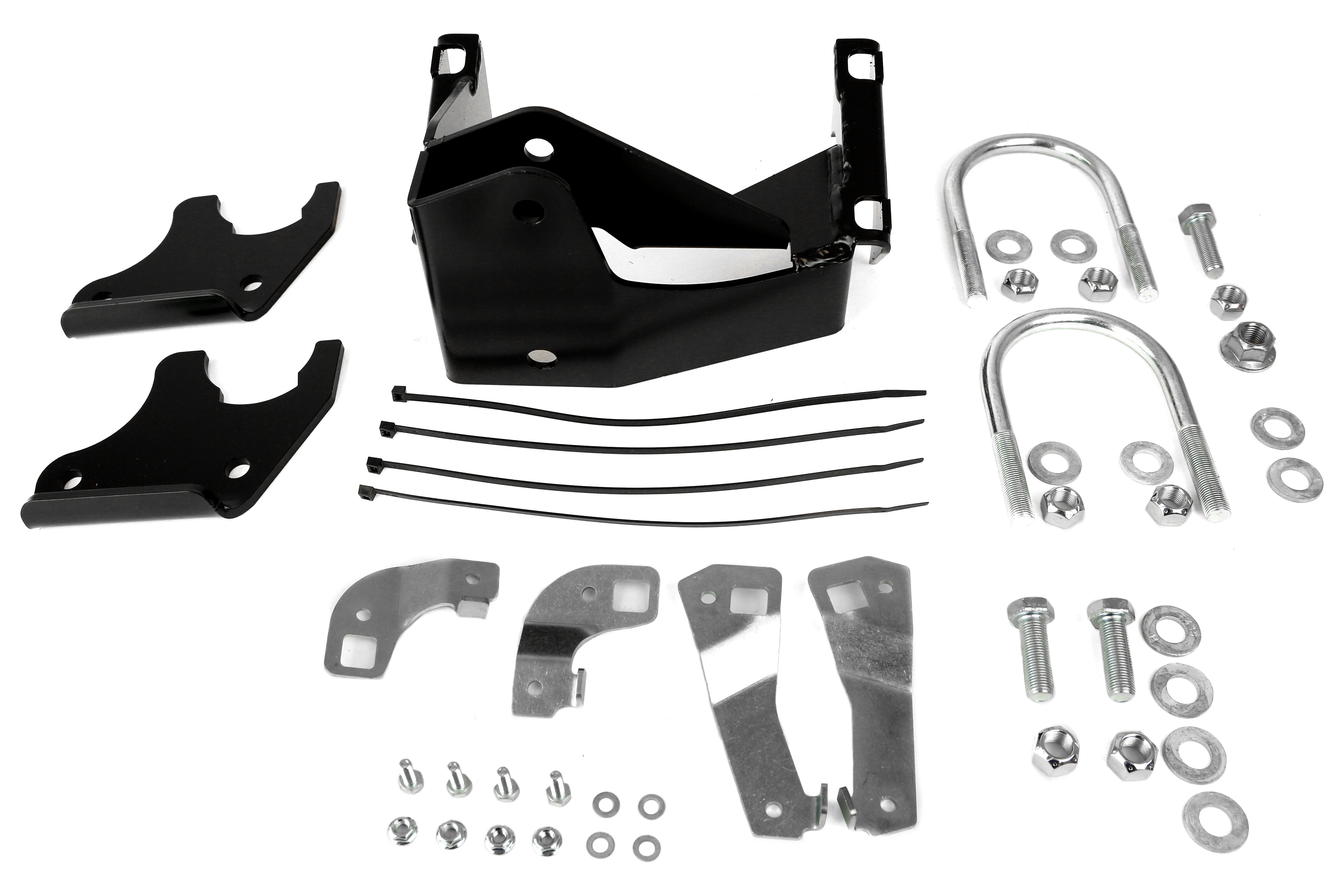

AEV Rear Trackbar Modified Kit
Adjustable:
No
Bracket Included:
Yes
Color:
Black
Finish:
Powder Coat
Location:
Rear
Material:
1040 Steel
Minimum Lift Height Required:
3.5in

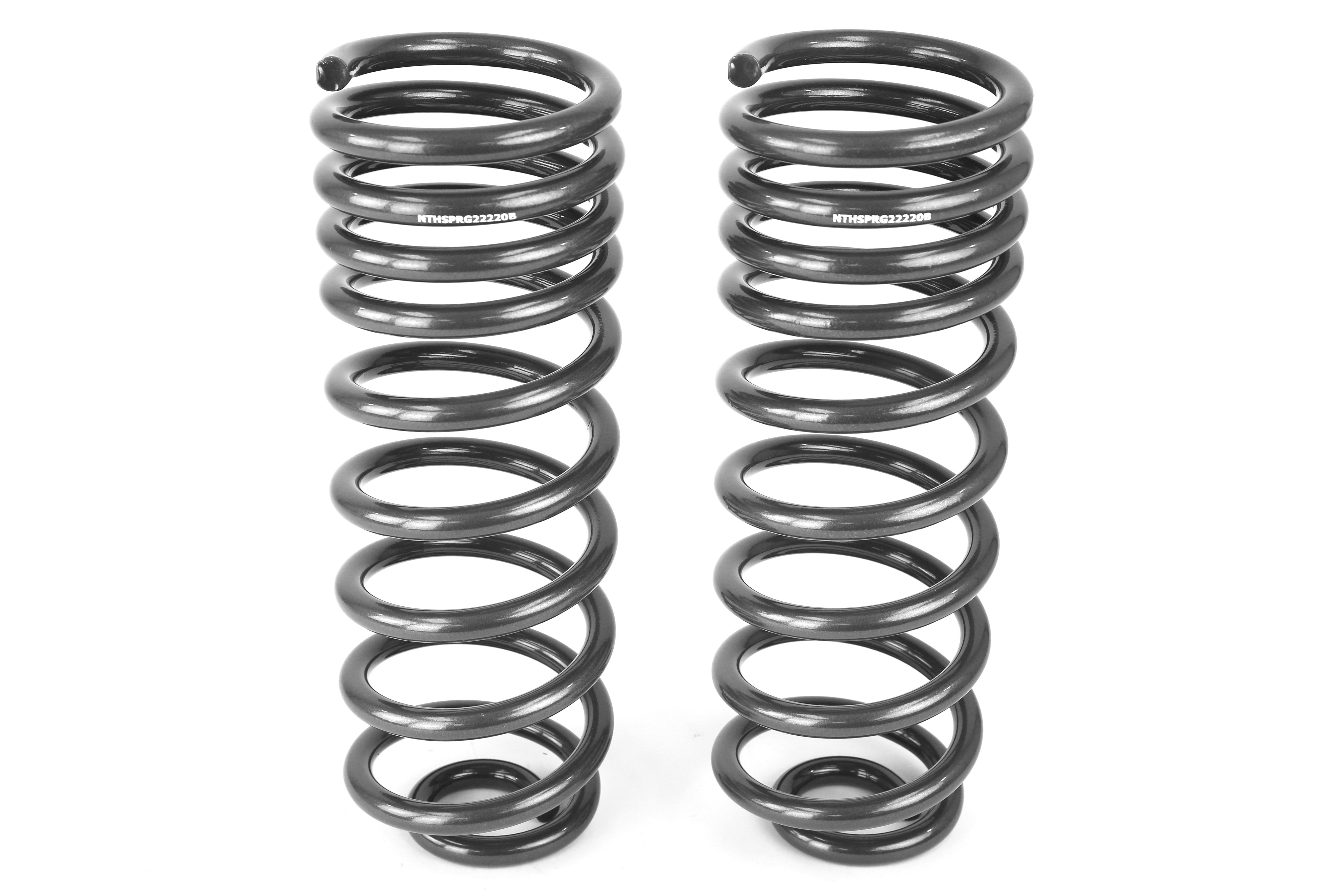

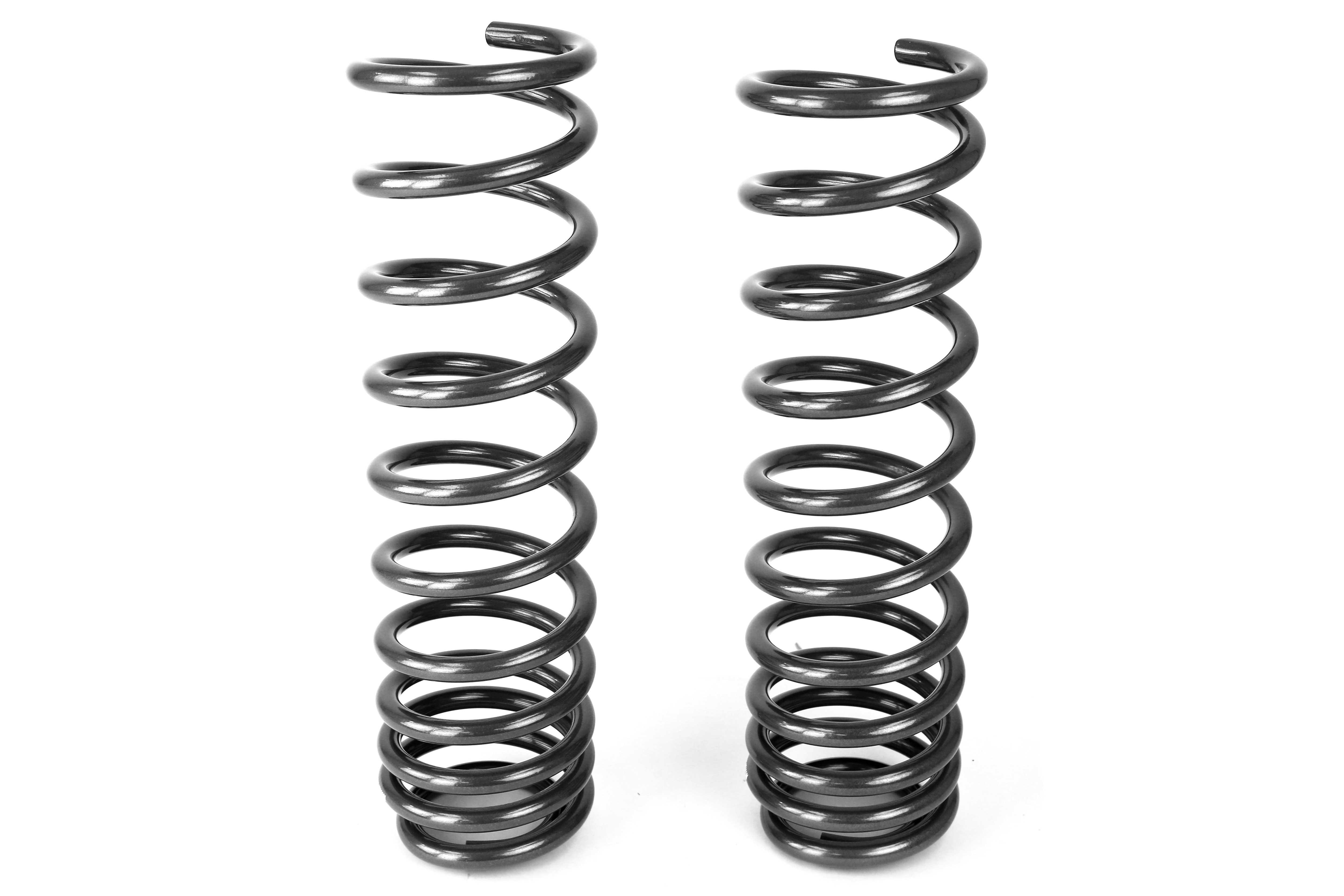

AEV Coil Springs 2.5in Full Set
Color:
Black
Finish:
Powder Coat
Height:
2.5in
Location:
Front and Rear
Qty:
4
Type:
Linear
AEV Con Box
Qty:
1
PEOPLE WHO VIEWED THIS ITEM ALSO VIEWED
REVIEWS & CUSTOMER MEDIA
Customer Photos and Videos
No user media. You can upload a photo or video of your install by posting a review.
5out of
5stars
Joe Q
I installed the AEV lift on my 2016 JKU Rubicon. Fit and finish were great, install is easy enough. It rides better than factory on the road and does great in the dirt. I went out to Wolf Caves here in Central Texas to test it, I was impressed.
2 of 2 people found the following review helpful
5out of
5stars
JKUSPORT
I put this on my 2016 JKU Sport and the ride is better than factory. Plenty of room for the 35s and looks great.
2 of 2 people found the following review helpful
5out of
5stars
Joel
I put this on my Rubicon Recon to give me some extra room for 35s along with the geometry correction brackets. This did the trick without making my Jeep too crazy. The handling actually does seem to be improved from stock and my Jeep looks awesome.
QUESTIONS & ANSWERS
-
Q: Bump Stop Kit Included DanW3 years ago
I'm going from an AEV spacer lift to this one. It already has the bump stop extensions. Can this kit be ordered without the bump stop kit to save $50?
-
-
1 of
1 people found the
following answer helpful
A: Give us a call at 866.601.5340 and we will get you taken care of.
Northridge Chris @ Northridge4x4 3 years ago
-
1 of
1 people found the
following answer helpful
-
Q: Suspensions barrycohen61113 years ago
Will the AEV 2.5in DualSport system work on a 2021 Rubicon JL?
-
-
1 of
1 people found the
following answer helpful
A: This is the wrong kit for the JL. The JL version for the 4 door is here: https://www.northridge4x4.com/part/2-5in-lifts/n0724100ab-aev-2-5in-dualsport-rt-suspension-system It will work with your 2021 as long as it is a gas model. They are currently working on designing new springs for the diesel models.
Northridge Kaleb @ Northridge4x4 3 years ago
-
1 of
1 people found the
following answer helpful
-
Q: This lift and 35" tires, do I need anything else? 1waytolookatit3 years ago
Hi, If I install this lift and 35" tires will I need anything else, like drive shafts or anything else becuase of geometry changes? Thanks,
-
-
6 of
6 people found the
following answer helpful
A: If you are using stock wheels, you will want to also get wheel spacers. Other than that, nothing is needed.
Northridge Kaleb @ Northridge4x4 3 years ago
-
6 of
6 people found the
following answer helpful
-
Q: What shocks are included 1waytolookatit3 years ago
Hello, I saw a very recent install video of this lift kit and they stated that the shocks were Bilstein shocks, do you sets have Bilstein shocks?
-
-
3 of
3 people found the
following answer helpful
A: The shocks included are AEV tuned Bilstein shocks
Northridge Kaleb @ Northridge4x4 3 years ago
-
3 of
3 people found the
following answer helpful
