Rock Krawler 3in Pro-X Coilover System Lift Kit - JT

Rock Krawler 3in Pro-X Coilover System Lift Kit

JT

Rock Krawler 3in Pro-X Coilover System Lift Kit - JT
INCLUDED IN PRICE

Product Resources

Features & Product Details

The Rock Krawler JT 3.0” Pro-X Coil Over System was specifically designed for JT owners who want coil overs up front, maximum articulation from a mid-arm kit and the durability and off-road performance you expect from Rock Krawler Suspension. The triangulated 4 link rear assembly maintains the rear axle perfectly centered; allows for removal of the rear track bar, eliminates rear suspension bind, and the cross talk of the front and rear track bar arrangement greatly smoothing the highway ride. The X Factor Series adjustable lower control arms offer a total of 90 degrees of misalignment. The Triple Rate front coils paired with our Quad rate rears coils provide unmatched ride quality and off-road performance, while maintaining standard JT rear load capacities.

System Benefits:

  • 2.625” Remote Reservoir Coil Over Front
  • 2.625” Remote Reservoir Shock Rear
  • Excellent Highway Ride
  • Improved Off-Road Ability
  • Bolt In Triangulated 4 Link Rear
  • Eliminates Front and Rear Track Bar ”Cross Talk”
  • The Rear Axle Remains Perfectly Centered
  • Greatly Improved Rear Pinion Cycle w/ Equal Length Rear Upper and Lower Arms
  • Quad Rate Rear Coils
  • Rear Spring Correction Spring Seats to minimize Coil Bow
  • Lifetime Warranty on All Hard Parts
  •

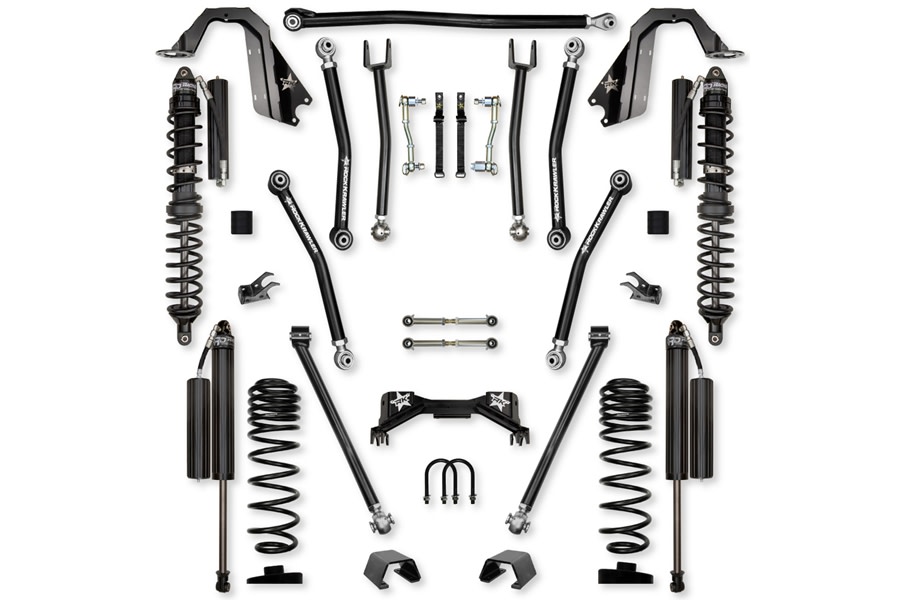

    System Includes:

  • (2) 2.625” remote reservoir front coil overs
  • (2) 2.625” remote reservoir rear shocks
  • (2) Frame side coil over mounts
  • (2) Axle side coil over mounts
  • (2) Quad rate rear coil springs
  • (4) High clearance adjustable lower control arms
  • (4) Adjustable upper control arms
  • (2) Rear spring correction seats
  • (1) Adjustable front track bar
  • (2) Front sway bar links

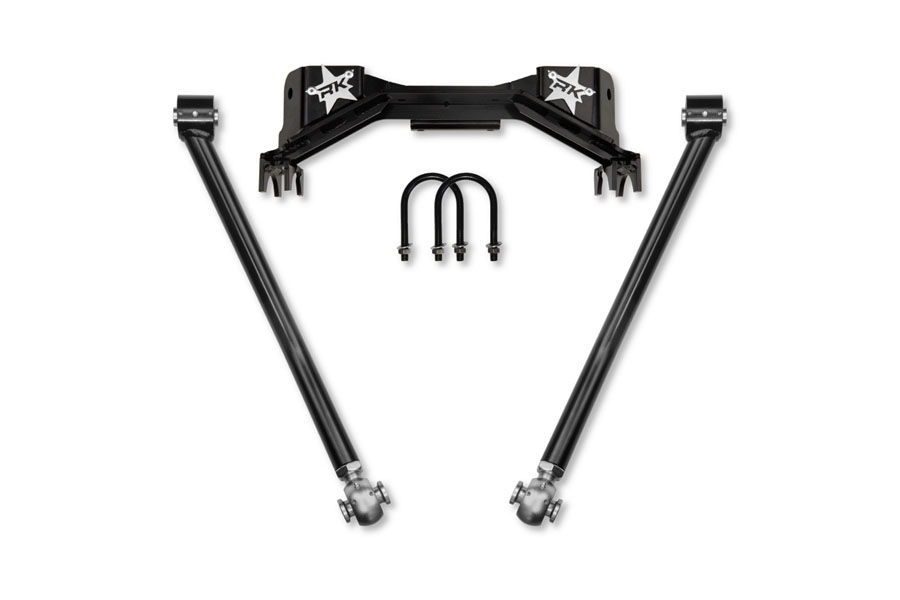

  • (1) Pro-X bolt in rear axle cradle
  • (2) Extended rear sway bar links
  • (1) Drill and Tap Kit
  •

    Tire Fitment:

  • Sport and Overland with Full OEM Fenders
  • 37” Tall Tires (3” Bump Stop Height Recommended)
  • Sport and Overland with Trimmed or High Lined OEM Fenders
  • 38” Tall Tires (3” Bump Stop Height Recommended)
  • Rubicon with Full OEM Fenders
  • 37”/38” Tall Tires (3” Bump Stop Height Recommended)
  • Rubicon with Trimmed or High Lined OEM Fenders
  • 40” Tall Tires (3” Bump Stop Height Recommended)
  •

    Wheel Fitment:

  • Sport and Overland Wheel Fitment Recommendations
  • 37”/38” Tall Tires - Recommend 3.5” of Backspacing
  • Rubicon or Sport with Wide Track Axles Fitment Recommendations
  • 37”/38” Tall Tires - Recommend 4.5” of Backspacing
  • 40” Tall Tires - Recommend 3.5” of Backspacing
  •

    General Notes:
    *All lift heights based on Rubicon models
    *Designed to maintain 1/2” of rake on Rubicon Models
    *As shown valid for OEM axles only
    *If so equipped will require removal of rear shutter shock
    *For tires larger than 37” or hard core off-road use, welding of the rear cradle to the axle tubes is required.

    Specifications

    Brand: Rock Krawler
    Kit Package: Yes
    Mfgr. Warranty: Limited Lifetime
    Condition: New Product
    Return Policy:
    Standard
