Rock Krawler 3in X Factor Coilover System - JT

Rock Krawler 3in X Factor Coilover System

JT

Rock Krawler 3in X Factor Coilover System - JT
INCLUDED IN PRICE

Product Resources

Features & Product Details

The Rock Krawler JT 3” X Factor Mid Arm Coil Over System was specifically designed for those who want a front coilover set-up, maximum articulation from a mid-arm kit and the durability and off-road performance you expect from Rock Krawler Suspension. This system feature a 2.625” remote reservoir coil overs up front and 2.625” remote reservoir shocks in the back. The X Factor Series adjustable lower control arms offer a total of 90 degrees of misalignment. Rock Krawler’s industry leading triple rate coils give you 3” of lift and improves the on-road ride over the factory linear rate springs. All Rock Krawler JT systems includes two rear spring seats, as well as the corresponding two front spring pads. The provided track bar geometry corrections, both front and rear, lets you perfectly center the axles so there is no compromise in on-road handling.

System Benefits:

  • 2.625” Remote Reservoir Coil Over Front
  • 2.625” Remote Reservoir Shock Rear
  • Excellent Highway Ride
  • Improved Off-Road Ability
  • Triple Rate Coil Springs
  • Front & Rear Spring Leveling Pads
  • Lifetime Warranty on All Hard Parts
  •

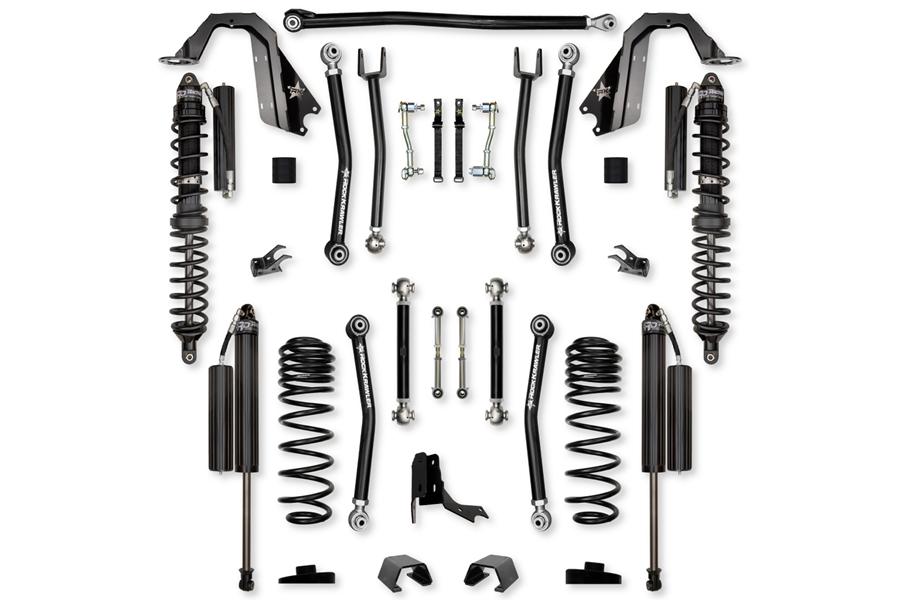

    System Includes:

  • (2) 2.625” remote reservoir front coil overs
  • (2) 2.625” remote reservoir rear shocks
  • (2) Frame side coil over mounts
  • (2) Axle side coil over mounts
  • (2) Front adjustable lower control arms
  • (2) Front adjustable upper control arms
  • (1) Adjustable front track bar
  • (2) Sway bar disconnects
  • (2) Front Spring Pads
  • (2) Sway bar link relocation brackets
  • (2) Sway bar disconnect straps
  • (2) Rear shock reservoir mounts
  • (2) Rear adjustable lower control arms
  • (2) Rear adjustable upper control arms
  • (2) Extended rear sway bar links
  • (2) Triple rate rear coil springs
  • (2) Rear Spring Seats
  • (1) Bolt-on rear track bar relocation bracket
  •

    Tire Fitment:

  • Sport and Overland with Full OEM Fenders
  • 37” Tall Tires (3” Bump Stop Height Recommended)
  • Sport and Overland with Trimmed or High Lined OEM Fenders
  • 38” Tall Tires (3” Bump Stop Height Recommended)
  • Rubicon with Full OEM Fenders
  • 37”/38” Tall Tires (3” Bump Stop Height Recommended)
  • Rubicon with Trimmed or High Lined OEM Fenders
  • 40” Tall Tires (3” Bump Stop Height Recommended)
  •

    Wheel Fitment:

  • Sport and Overland Wheel Fitment Recommendations
  • 37”/38” Tall Tires - Recommend 3.5” of Back Spacing
  • Rubicon or Sport with Wide Track Axles Fitment Recommendations
  • 37”/38” Tall Tires - Recommend 4.5” of Back Spacing
  • 40” Tall Tires - Recommend 3.5” of Back Spacing
  •

    General Notes:
    *All lift heights based on Rubicon models
    *Designed to maintain 1/2” of rake on Rubicon Models
    *As shown valid for OEM axles only
    *If so equipped will require removal of rear shutter shock

    Specifications

    Brand: Rock Krawler
    Kit Package: Yes
    Mfgr. Warranty: 10 Year Limited
    Condition: New Product
