Rock Krawler 4.5in PRO-X Stage 1 Lift Kit   - JT

Rock Krawler 4.5in PRO-X Stage 1 Lift Kit

JT

Rock Krawler 4.5in PRO-X Stage 1 Lift Kit   - JT
INCLUDED IN PRICE

Product Resources

Features & Product Details

The Rock Krawler JT 4.5-inch Pro-X System was specifically designed for JT owners who want a complete bolt-in installation, maximum articulation from a mid-arm kit and the durability and off-road performance you expect from Rock Krawler Suspension. The triangulated 4 link rear assembly maintains the rear axle perfectly centered; allows for removal of the rear track bar, eliminates rear suspension bind, and the cross talk of the front and rear track bar arrangement greatly smoothing the highway ride. The X Factor Series adjustable lower control arms offer a total of 90 degrees of misalignment. The Triple Rate front coils paired with our Quad rate rears coils provide unmatched ride quality and off-road performance, while maintaining standard JT rear load capacities. The Rock Krawler Pro-X Gladiator Mid Arm System is the pinnacle of bolt in suspension for the JT platform.

System Benefits:

  • Complete Bolt in System
  • Excellent Highway Ride
  • Improved Off-Road Ability
  • Bolt in Triangulated 4 Link Rear
  • Eliminates Front and Rear Track Bar "Cross Talk"
  • The Rear Axle Remains Perfectly Centered
  • Greatly Improved Rear Pinion Cycle w/ Equal Length Rear Upper and Lower Arms
  • Triple Rate Front Coil Springs paired with Quad Rate Rear Coils
  • Front & Rear Spring Correction Spring Seats to minimize Coil Bow
  • Lifetime Warranty on All Hard Parts

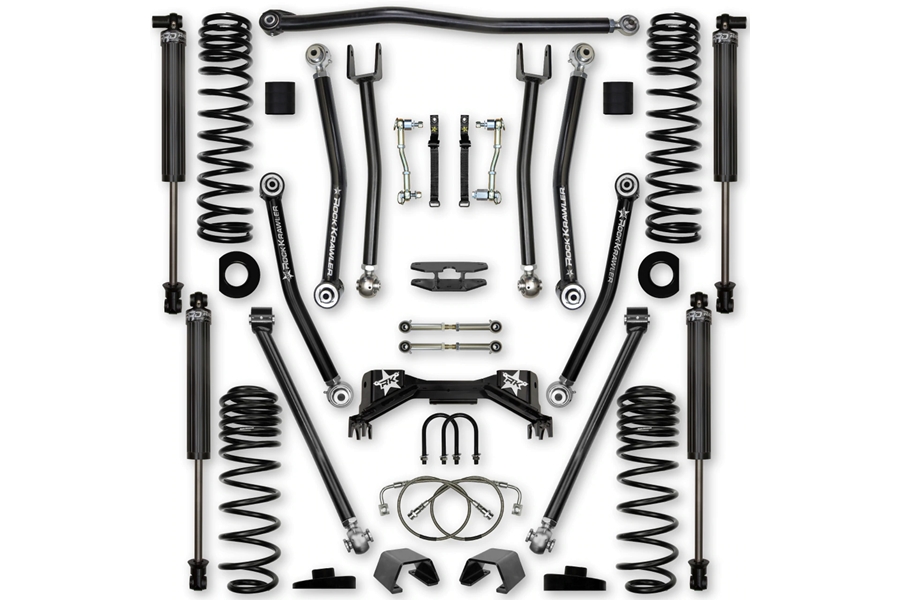

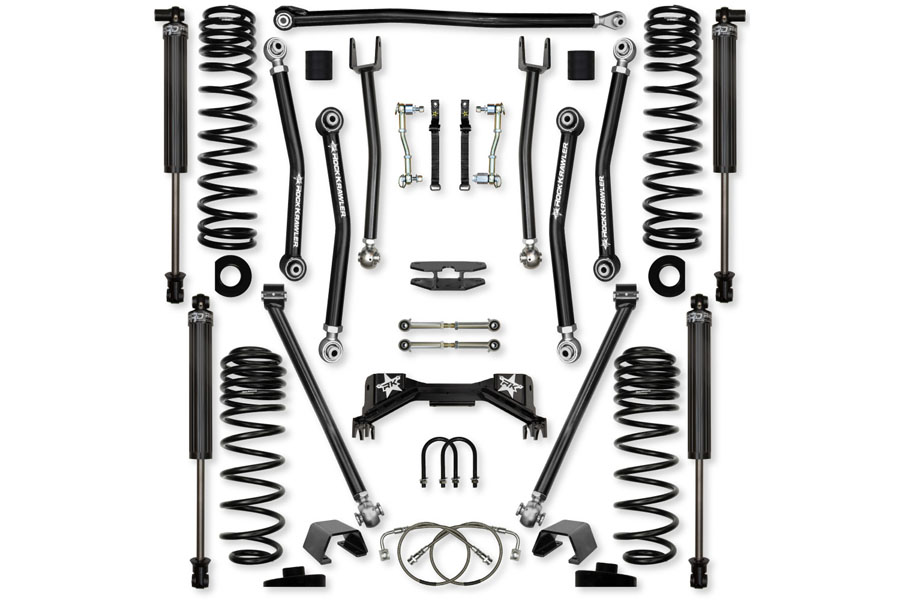

  • System Includes:

  • (2) Triple rate front coil springs
  • (2) Quad rate rear coil springs

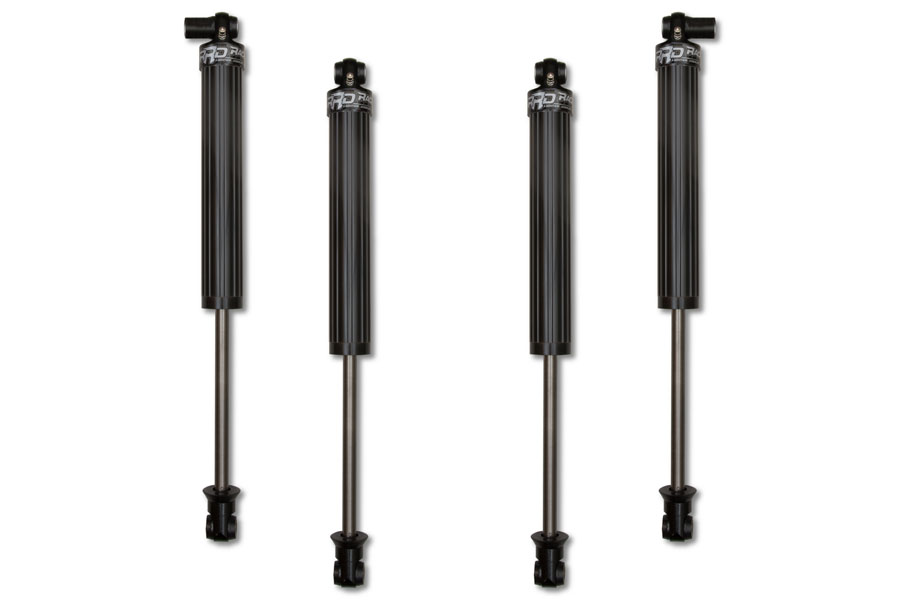

  • (4) 2.25 RRD Spec shocks
  • (4) High clearance adjustable lower control arms
  • (4) Adjustable upper control arms
  • (4) Spring correction seats
  • (1) Adjustable front track bar
  • (1) Carrier bearing drop bracket
  • (2) Front sway bar links
  • (1) Pro-X bolt in rear axle cradle
  • (2) Extended rear sway bar links
  • (1) Drill and Tap Kit
  • Tire Fitment:
    Sport and Overland with Full OEM Fenders
    37” Tall Tires (3” Bump Stop Height Recommended)
    Sport and Overland with Trimmed or High Lined OEM Fenders
    38” Tall Tires (3” Bump Stop Height Recommended)
    Rubicon with Full OEM Fenders
    37”/38” Tall Tires (3” Bump Stop Height Recommended)
    Rubicon with Trimmed or High Lined OEM Fenders
    40” Tall Tires (3” Bump Stop Height Recommended)

    Wheel Fitment:
    Sport and Overland Wheel Fitment Recommendations
    37”/38” Tall Tires - Recommend 3.5” of Back Spacing
    Rubicon or Sport with Wide Track Axles Fitment Recommendations
    37”/38" Tall Tires - Recommend 4.5” of Back Spacing
    40” Tall Tires - Recommend 3.5” of Back Spacing

    Shock Notes:
    Generic Front Shock Length – 17.5” Collapsed/ 29.5” Maximum Extended
    Generic Rear Shock Length – 17” Collapsed/ 28” Maximum Extended

    General Notes:
    *All lift heights based on Rubicon models
    *Designed to maintain 1/2" of rake on Rubicon Models
    *As shown valid for OEM axles only
    *If so equipped will require removal of rear shutter shock
    *For tires larger than 37" or hard core off-road use, welding of the rear cradle to the axle tubes is required.



    Specifications

    Brand: Rock Krawler
    Kit Package: Yes
    Mfgr. Warranty: See Individual Parts
    Condition: New Product
    Return Policy:
    Standard
