The Rock Krawler JT 3” X Factor Mid Arm Coil Over System was specifically designed for those who want a front coilover set-up, maximum articulation from a mid-arm kit and the durability and off-road performance you expect from Rock Krawler Suspension. This system feature a 2.625” remote reservoir coil overs up front and 2.625” remote reservoir shocks in the back. The X Factor Series adjustable lower control arms offer a total of 90 degrees of misalignment. Rock Krawler’s industry leading triple rate coils give you 3” of lift and improves the on-road ride over the factory linear rate springs. All Rock Krawler JT systems includes two rear spring seats, as well as the corresponding two front spring pads. The provided track bar geometry corrections, both front and rear, lets you perfectly center the axles so there is no compromise in on-road handling.
System Benefits:

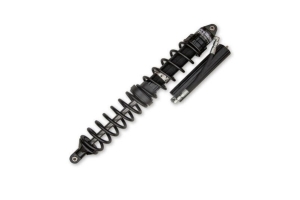

2.625” Remote Reservoir Coil Over Front

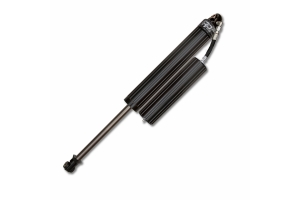

2.625” Remote Reservoir Shock Rear
Excellent Highway Ride
Improved Off-Road Ability
Triple Rate Coil Springs
Front & Rear Spring Leveling Pads
Lifetime Warranty on All Hard Parts

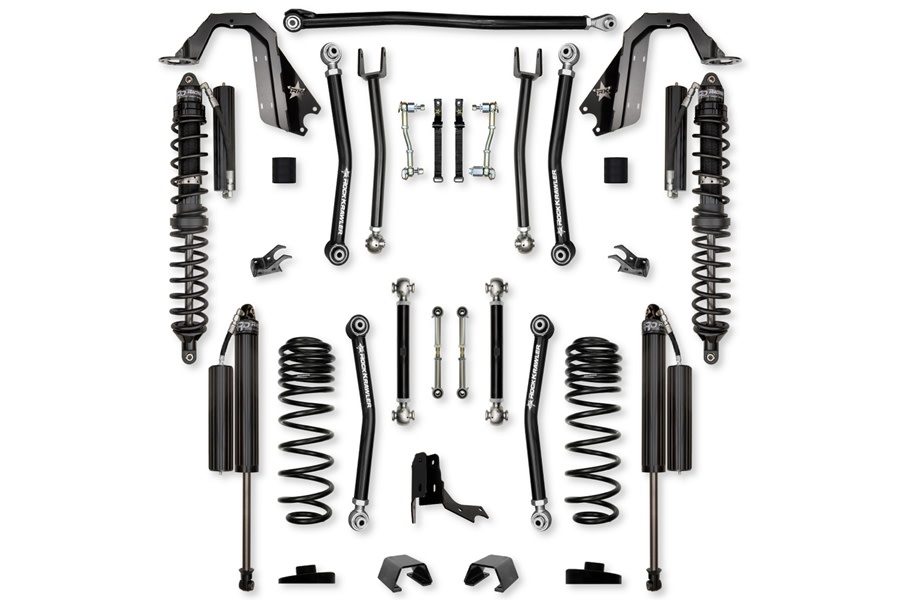

System Includes:
(2) 2.625” remote reservoir front coil overs
(2) 2.625” remote reservoir rear shocks
(2) Frame side coil over mounts
(2) Axle side coil over mounts
(2) Front adjustable lower control arms
(2) Front adjustable upper control arms
(1) Adjustable front track bar
(2) Sway bar disconnects
(2) Front Spring Pads
(2) Sway bar link relocation brackets
(2) Sway bar disconnect straps
(2) Rear shock reservoir mounts
(2) Rear adjustable lower control arms
(2) Rear adjustable upper control arms
(2) Extended rear sway bar links
(2) Triple rate rear coil springs
(2) Rear Spring Seats
(1) Bolt-on rear track bar relocation bracket
Tire Fitment:
Sport and Overland with Full OEM Fenders
37” Tall Tires (3” Bump Stop Height Recommended)
Sport and Overland with Trimmed or High Lined OEM Fenders
38” Tall Tires (3” Bump Stop Height Recommended)
Rubicon with Full OEM Fenders
37”/38” Tall Tires (3” Bump Stop Height Recommended)
Rubicon with Trimmed or High Lined OEM Fenders
40” Tall Tires (3” Bump Stop Height Recommended)
Wheel Fitment:
Sport and Overland Wheel Fitment Recommendations
37”/38” Tall Tires - Recommend 3.5” of Back Spacing
Rubicon or Sport with Wide Track Axles Fitment Recommendations
37”/38” Tall Tires - Recommend 4.5” of Back Spacing
40” Tall Tires - Recommend 3.5” of Back Spacing
General Notes:
*All lift heights based on Rubicon models
*Designed to maintain 1/2” of rake on Rubicon Models
*As shown valid for OEM axles only
*If so equipped will require removal of rear shutter shock
