Next Venture Motorsports Rock Sliders Rimrocker Series, Frame Mounted

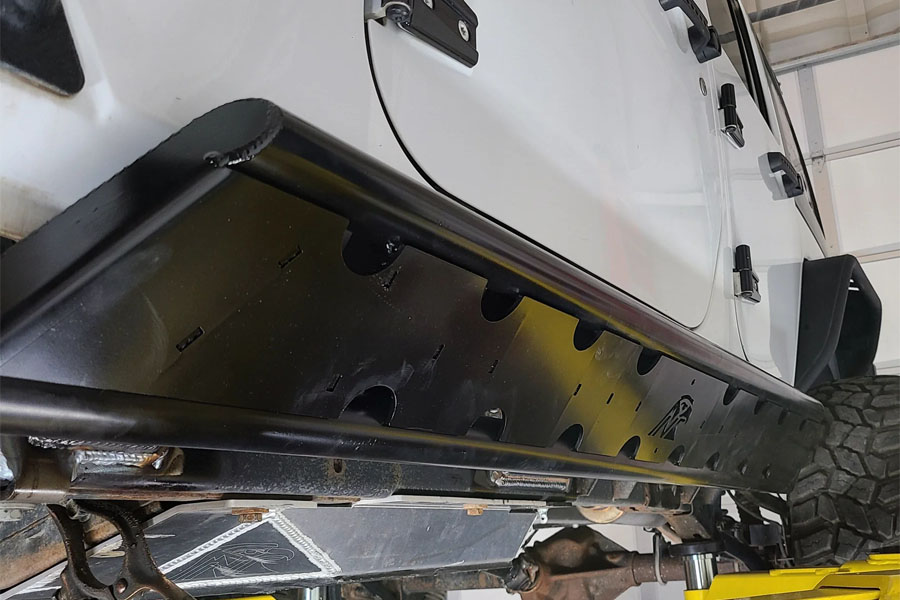

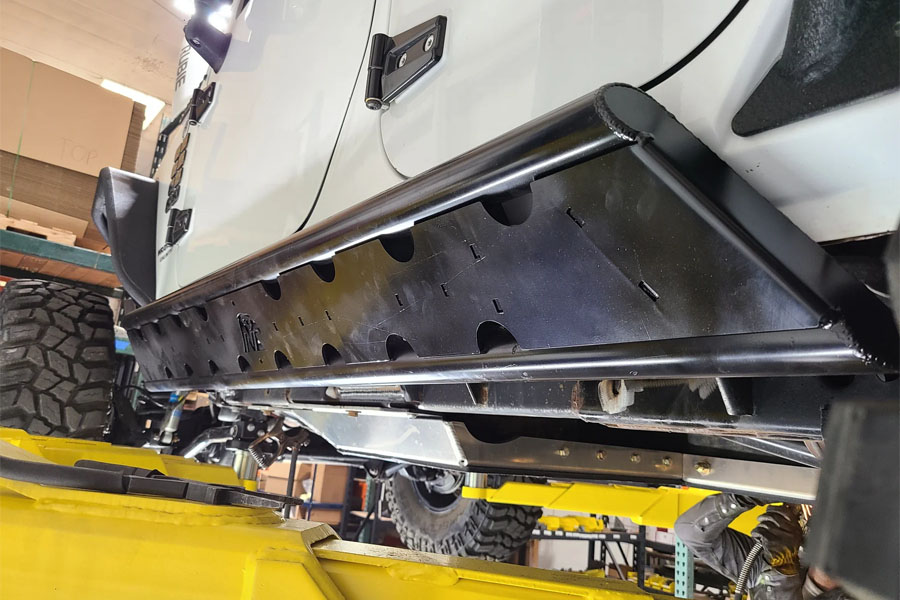

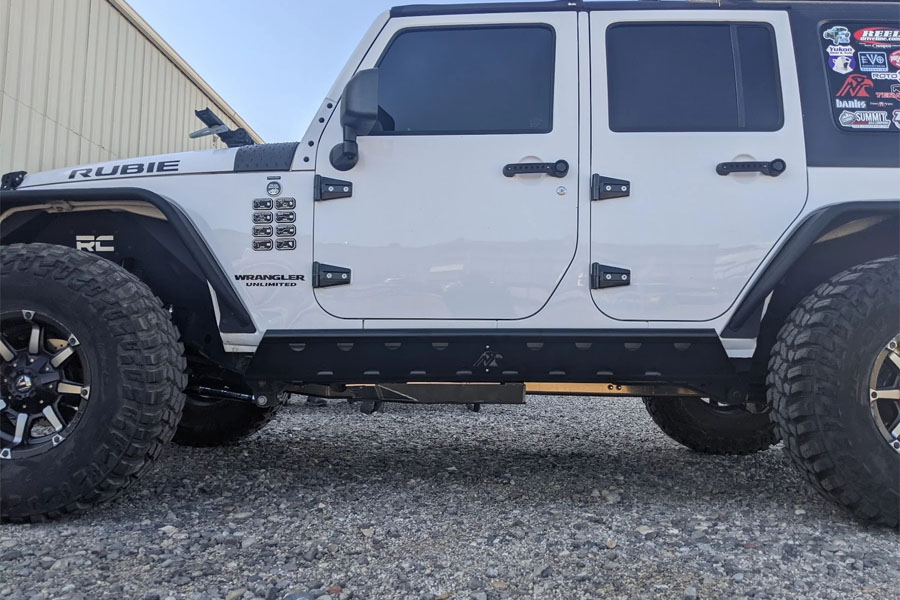

Originally featured on the Lite Brite Studios 'Stepchild' Build, these are Next Venture Motorsports' heaviest duty rock sliders for the JKU. Designed to work with long arm kits (with straight rear lower links) and other popular upgrades without lots of modification... and of course to cruise down the hardest trails without a worry in the world!

If you want rock sliders you can bounce off of big rocks day after day, wheeling trip after wheeling trip, you'll care as much about what they're made of as what they're mounted to. That is why they mount these off of the frame and recommend *welding* them to the frame -- because, unlike bolts, welds don't back out and come loose after vibrations or boulders.

These are made from a combination of 2" DOM Round Tube (120 wall) and 1/4"+3/16" laser cut steel plate that is CNC formed. The 3/16" laser cut steel plate that spans the distance between the 2 structural tubes is designed with minimal rock catching cutouts -- to provide a strong smooth surface that will slide over rocks and obstacles while still allowing for drain cutouts near the bottom. The lower tube can also be supplemented with a solid aluminum insert for added strength against the toughest drops. Inserts are made of 1.75" OD 6061 Solid Stock, and increase the effective wall thickness and strength of the rock sliders and make them practically impossible to dent.

Due to the gussets/reinforcements that prevent unwanted flex of the rock sliders, 1 small notche for clearance (using a cut and fold method) are required in the rear section of the JKU pinch seam.

Additional Details

Products are designed and fabricated to fit vehicles that have varying tolerances from the factory, minor hand fitting may be required.

Products are shipped bare metal unless otherwise specified by the customer. Bare metal products may have scratches or surface imperfections as a result of raw material handling, manufacturing, and fabrication. However, these imperfections are easily covered up with a textured powder coat finish. Additional finishing, sanding, and prep work may be required if you wish to also have them finished with a smooth powder coat or paint.

Projected lead times are estimates only, and are subject to changes due to production realities, including material and labor availability and sudden variability in order volume. Lead times are not guaranteed, but we do guarantee that we are hard at work trying to get the best product we can produce and into our customers’ hands as quickly as possible.

Note: Images are for illustrative purposes only. Actual product may vary
