RockJock 4in Pro Edition Johnny Joint Lift Kit - JK 4DR

Suspension
Lift Kits
4-5in Lifts >RockJock 4in Pro Edition Johnny Joint Lift Kit - JK 4DR

RockJock 4in Pro Edition Johnny Joint Lift Kit

JK 4DR

INCLUDED IN PRICE

Front Coil Springs $284.00

1 x RockJock Coil Springs Front 4in Lift - JK/LJ/TJ
RJKCE-9132FP

In stock!
Relocation Bracket $33.00

1 x RockJock Front Brake Hose Relocation Bracket Kit - JK
RJKCE-9807FBLBK

In stock!
Front Upper Control Arms $480.00

1 x RockJock Off Road Suspension System Control Arms Front Upper - JK
RJKCE-9807FUA

In stock!
Rear Relocation Bracket $33.00

1 x RockJock Rear Brake Hose Relocation Bracket Kit - JK
RJKCE-9807RBLBK

In stock!
Rear Bump Stop Kit $125.00

1 x RockJock Rear Bump Stop Extension Kit - 3in - JK
RJKCE-9807RBSK

In stock!
Rear Upper Control Arms $490.00

1 x RockJock Rear Upper Johnny Joint Control Arms - JL/JK
RJKCE-9807RUA

Only 1 left!
Rear Shock Mount Relocator $41.00

1 x RockJock Shock Mount Relocator Kit Rear - JK
RJKCE-9807RSRK

In stock!
Rear Track Bar $365.00

1 x RockJock Adjustable Rear Track Bar - JK
RJKCE-9120RJK

In stock!
Front Lower Control Arms $480.00

1 x RockJock Front Lower Johnny Joint Control Arms - JK
RJKCE-9807FLA

Only 1 left!
Rear Lower Control Arms $490.00

1 x RockJock Rear Lower Johnny Joint Control Arms - JL/JK
RJKCE-9807RLA

In stock!
Front Track Bar $374.00

1 x RockJock Johnny Joint Adjustable Front Trac Bar - JK
RJKRJ-9120FJKF

In stock!
Sway Bar End Links $191.00

1 x RockJock Adjustable Sway Bar End Link Kit
RJKRJ-203005-101

Only 2 left!
Rear Coil Springs $284.00

1 x RockJock Rear Coil Springs 4in - JK
RJKCE-9132RP

Out of stockEstimated to ship in 1-2 days
Front Bump Stop Kit $144.00

1 x RockJock Off Road Suspension System Front Bump Stop Kit - JK
RJKCE-9807FBSK

In stock!
Rear Track Bar Correction Bracket $120.00

1 x RockJock Rear Trac Bar Geometry Correction Bracket - JK
RJKCE-9807RTBK

In stock!
Sway Bar End Links $191.00

1 x RockJock Adjustable Sway Bar End Link Kit (8.5in Long) - Pair
RJKRJ-203004-101

Only 1 left!

$4,125.00

Qualifies for
free shipping!

Does not fit your
2011 Toyota Tacoma Base

You will earn Reward Points with this Purchase.

★★★★★

()
Write a Review | Q&A

Part # RJ-JK4DR1-101

Any Questions?
Chat with an expert!

ANY QUESTIONS?

Authorized
Dealer

Product Resources

Installation Instructions

Fitment Details

Features & Product Details

RockJock's Pro Edition Johnny Joint Suspension System for JK Wrangler Unlimited provides 4 inches of lift and allows for efficient clearance of up to 37 in. tall tires (larger tires will require aftermarket fenders and minor trimming)! This kit is comprised of only the highest end components in the areas of strength, fit, finish, function, and the engineering to back them, delivering a smooth, comfortable on-road ride with the ultimate in off-road capability – all in a complete, direct bolt-on kit. This kit is designed specifically for the serious off-roader who not only wants to lift their vehicle and install big tires but also wants to tackle the toughest trails in the country with confidence and ease.

Premium shock packages from Rancho, Fox and King are offered as options so that you can select the shock brand and performance level that matches your driving style. We always recommend adjustable shocks, as they allow the ride to be tuned to match the terrain and driver’s preference.

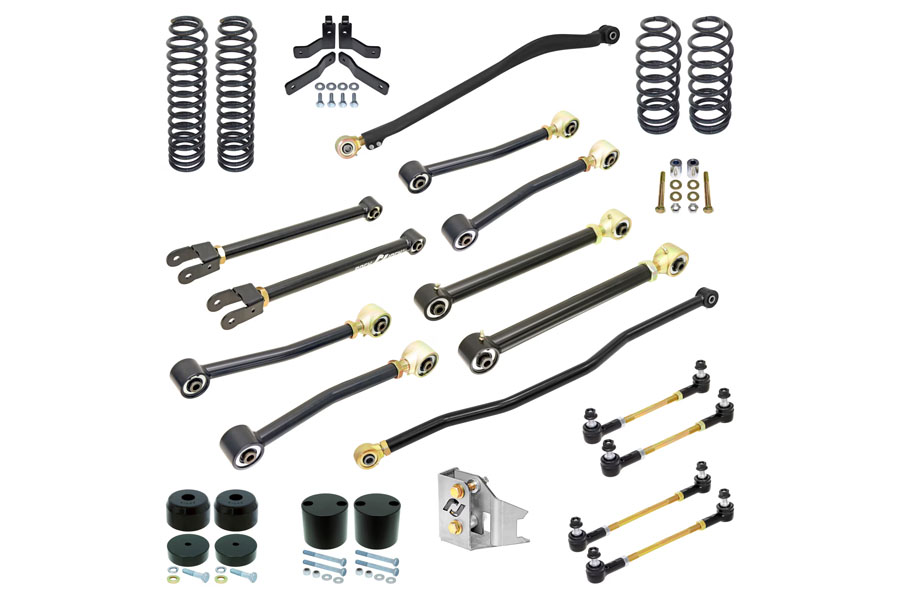

Kit Includes:

4 in. Lift Dual-Rate Front And Rear Springs

8 Johnny Joint Adjustable Control Arms

Johnny Joint Adjustable Front Trac Bar (forged, organically shaped)

Johnny Joint Adjustable Rear Trac Bar

Front and Rear Bump Stop Kits

Front and Rear Adjustable Sway Bar Links w/ Sealed Ends

Front and Rear Brake Line Relocation Brackets

Rear Trac Bar Geometry Correction Bracket

Rear Shock Relocator Kit

All Required Hardware

Kit Features:

RockJock Spec. Dual-Rate Springs - Feature a soft initial rate that absorbs small bumps and trail chop, to deliver a smooth, comfortable ride, while a firmer secondary rate helps soak up larger impacts and reduce bottoming. A key differentiator of RockJock spec. dual-rate springs is the positioning of the crossover point between the initial and secondary spring rates so that a portion of the softer initial rate is available and active at ride height before crossing over to the firmer secondary rate deeper into the travel.

Bump Stop Spacers - Proper bump stop extensions are a must and the heavy-duty kits stand up to hard use while keeping the tires off of your JK’s fenders!

Johnny Joint Control Arms – Heavy duty adjustable upper control arms feature RockJock Johnny Joints, the original and most durable high-articulation urethane suspension joint on the market. Johnny Joints feature a smooth steel ball that pivots inside a proprietary urethane shell to provide over 30 degrees (per joint) of quiet, shock dampening articulation - without the excessive deflection found in soft rubber-based flex joints. Johnny Joints are so trusted that they are used by multiple commercial suspension companies, for both street and off-road suspension systems.

Johnny Joint Trac Bars - Heavy duty adjustable length Trac Bars included are forged chromoly, organically shaped front bar and the chromoly rear bar. RockJock's Trac Bars combine a precise fit with increased strength and adjustable length to perfectly center front and rear axles under the vehicle. High-articulation Johnny Joint ends provide maximum durability and suspension flex.

Optional Add-On Components - Add-on components enable the RockJock Pro Edition Suspension Lift to be customized for increased off-road capabilities and tuning.

Shock Packages - Select from a range of performance shocks with race-proven technology from Rancho, Fox and King to meet your requirements.

Antirock Sway Bars - The most popular off-road sway bar on the market enhances off-road driving capabilities with balanced performance of front and rear suspension in rugged off-road conditions. Off-road traction is improved with increased suspension flex and by equalizing and distributing the weight of the vehicle over all four tires - without the overly loose feeling created by sway bar disconnects.

Currectlync Steering and High Steer Knuckle Systems - For maximum strength, reliability and confidence off-road, as well as improved on-road drivability of a lifted vehicle - upgrade your steering components!

Geometry Correction Brackets - Depending on your usage and application, check out our Geometry Correction Bracket sets and see if they are for you.

Axle Housing Johnny Joints - Adding this simple kit to your Pro Edition Suspension System converts 2 more pivoting points in your suspension to high articulation Johnny Joint rod ends.

Lift Details - The RockJock Suspension System provides 4 in. of suspension lift.

Actual lift height may vary due to factory build specs. and added equipment and accessories.

Exhaust Clearance:

2012 and newer models will most likely require exhaust modifications to allow for full suspension down travel.

Tire Fitment:

37 in. tires – no inner fender modification necessary

38 in. or larger tires – aftermarket high-clearance fenders suggested/required

Wheel Backspace:

4.5 in. wheel backspace is recommended for all tire sizes
