RockJock 2.5in Johnny Joint Rod End - 2.368in X 0.625in Ball  - TJ/XJ

RockJock 2.5in Johnny Joint Rod End - 2.368in X 0.625in Ball

TJ/XJ

RockJock 2.5in Johnny Joint Rod End - 2.368in X 0.625in Ball  - TJ/XJ
★★★★★
★★★★★
()
Write a Review | Q&A
Part # CE-9110P-18We price match! Call 866-601-5340!
We Price Match
$67.00

In stock!
Does not fit your
1980 Jeep CJ5 Renegade
You will earn Reward Points with this Purchase.
ANY QUESTIONS?

Product Resources

Features & Product Details

RockJock's Johnny Joint Rod Ends have been a staple in the off road industry since 1996! Available universally for builders or found in our RockJock suspension components, John Currie’s proven formula provides a reliable, greasable, rebuildable joint that is capable of dramatic articulation in off-road applications, while still providing smooth, cushioned, quiet performance during on-road use.

Johnny Joints are available as a forged rod end with various RH and LH thread sizes from 3/4 in. up to a massive 1 1/2 in. thread! Additionally, weld-on versions of all Johnny Joints are available for fabricators.

Specialty joints, such as polished stainless steel, long body and bent forgings and application specific machined joints are all available for custom builder use.

All sizes of joints offer a standard or a narrow width joint body which provide different levels of overall articulation range (up to 30 plus degrees on a standard body and up to 40 plus degrees on a narrow body). The narrow body’s 1 piece bushing will provide a slightly firmer ride.

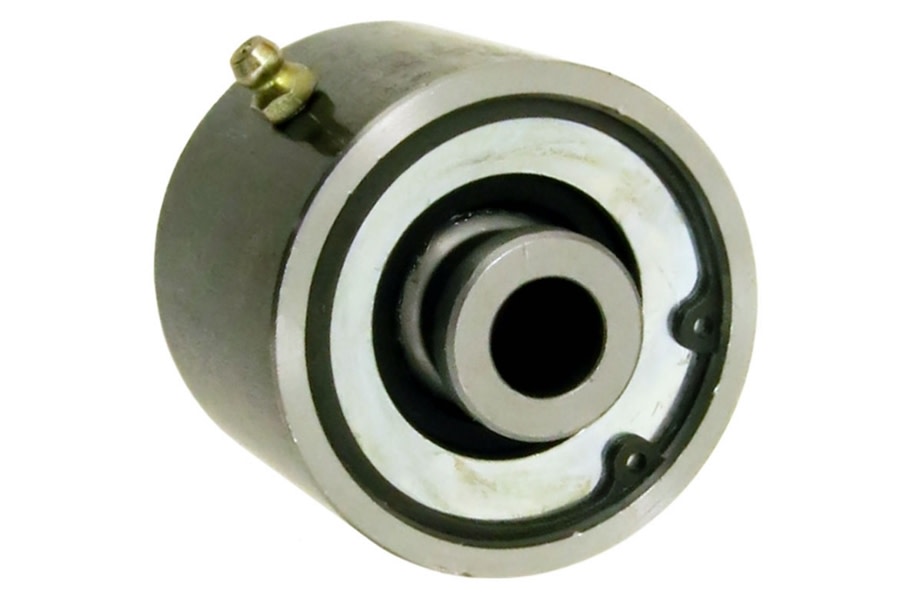

This 2 1/2 in. Johnny Joint incorporates our weld-on, standard width, steel outer barrel and a 2.465 in. overall width x .625 in. thru-bolt hole pivot ball with a single shoulder (intended for use on our CE-9120TJS trac bar.

Greasing is handled externally via the included zerk fitting that installs into the threaded hole in the joint outer barrel.



Rod End Fits:

Universal Application

TJ Wrangler – F Trac Bar (frame end)

TJ Wrangler Unlimited (LJ) – F Trac Bar (frame end)

XJ Cherokee – F Trac Bar (frame end)

MJ Comanche – F Trac Bar (frame end)

ZJ Grand Cherokee – F Trac Bar (frame end)



Rod End Features:

  • 30 degrees of articulation capability
  • Weldable steel construction
  • 2 1/2 in. O.D. x 2 in. wide barrel dimensions
  • 2-piece bushing internals
  • 2.465 in. wide x .625 in. thru-hole pivot ball
  • Ball features single shoulder (intended for use on  track bar)
  • Accepts a 5/8 in. bolt
  • 1/4 in.-28 zerk fitting for greasing
  • Ships disassembled, ready for welding
  •

    Notes:



    Johnny Joints require non-synthetic, hi-moly lube grease

    Applicable Johnny Joint tool for this rod end

    *** IMPORTANT *** - joints require greasing at normal intervals, but they do not hold a lot of grease! Over greasing can cause damage to the joint. To prevent damage, use only a hand pump grease gun, do not expect the joint to take a lot of grease and DO NOT use pneumatic or electric grease guns!

    Specifications

    Brand: RockJock
    Greaseable: Yes
    QTY: 1
    Type: Jonny Joint Rod End
    Color: Silver
    Mfgr. Warranty: 2 Year Warranty
    Condition: New Product
    Return Policy:
    Standard

    REVIEWS & CUSTOMER MEDIA

    Be the first to write a review

    QUESTIONS & ANSWERS

    No questions have been asked about this product.

    This Part Fits

    Jeep Cherokee XJ
    Base
    1989 Jeep Cherokee XJ Base
    1990 Jeep Cherokee XJ Base
    1991 Jeep Cherokee XJ Base
    1992 Jeep Cherokee XJ Base
    1993 Jeep Cherokee XJ Base
    Briarwood
    1991 Jeep Cherokee XJ Briarwood
    1992 Jeep Cherokee XJ Briarwood
    Classic
    1996 Jeep Cherokee XJ Classic
    1998 Jeep Cherokee XJ Classic
    1999 Jeep Cherokee XJ Classic
    2000 Jeep Cherokee XJ Classic
    2001 Jeep Cherokee XJ Classic
    Country
    1993 Jeep Cherokee XJ Country
    1994 Jeep Cherokee XJ Country
    1995 Jeep Cherokee XJ Country
    1996 Jeep Cherokee XJ Country
    1997 Jeep Cherokee XJ Country
    Laredo
    1989 Jeep Cherokee XJ Laredo
    1990 Jeep Cherokee XJ Laredo
    1991 Jeep Cherokee XJ Laredo
    1992 Jeep Cherokee XJ Laredo
    Limited
    1989 Jeep Cherokee XJ Limited
    1990 Jeep Cherokee XJ Limited
    1991 Jeep Cherokee XJ Limited
    1992 Jeep Cherokee XJ Limited
    1998 Jeep Cherokee XJ Limited
    1999 Jeep Cherokee XJ Limited
    2000 Jeep Cherokee XJ Limited
    2001 Jeep Cherokee XJ Limited
    Pioneer
    1989 Jeep Cherokee XJ Pioneer
    1990 Jeep Cherokee XJ Pioneer
    SE
    1994 Jeep Cherokee XJ SE
    1995 Jeep Cherokee XJ SE
    1996 Jeep Cherokee XJ SE
    1997 Jeep Cherokee XJ SE
    1998 Jeep Cherokee XJ SE
    1999 Jeep Cherokee XJ SE
    2000 Jeep Cherokee XJ SE
    2001 Jeep Cherokee XJ SE
    Sport
    1989 Jeep Cherokee XJ Sport
    1990 Jeep Cherokee XJ Sport
    1991 Jeep Cherokee XJ Sport
    1992 Jeep Cherokee XJ Sport
    1993 Jeep Cherokee XJ Sport
    1994 Jeep Cherokee XJ Sport
    1995 Jeep Cherokee XJ Sport
    1996 Jeep Cherokee XJ Sport
    1997 Jeep Cherokee XJ Sport
    1998 Jeep Cherokee XJ Sport
    1999 Jeep Cherokee XJ Sport
    2000 Jeep Cherokee XJ Sport
    2001 Jeep Cherokee XJ Sport
