Rock Krawler 3in PRO-X Suspension System
JT
Product Resources
Features & Product Details

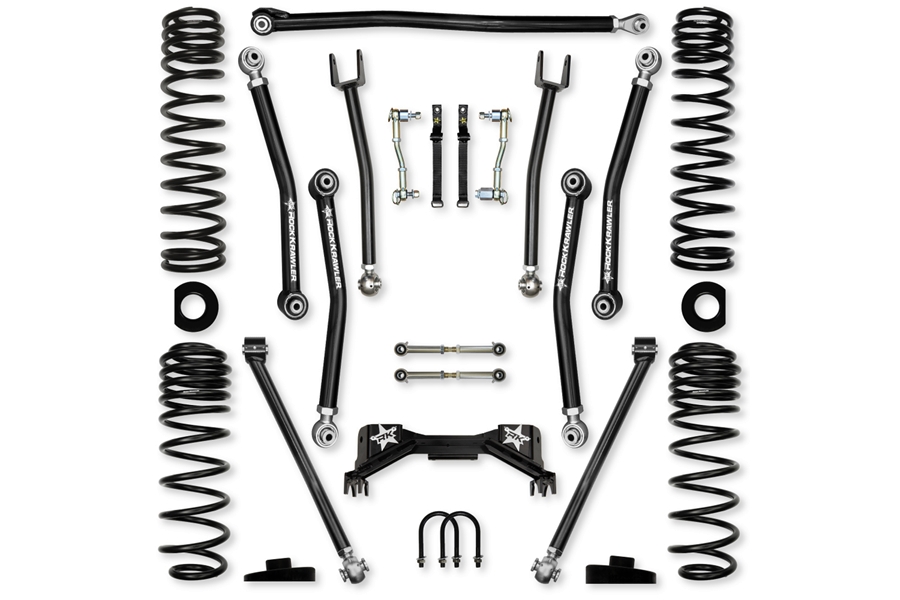

The Rock Krawler JT 3.0 inch Pro-X System was specifically designed for JT owners who want a complete bolt-in installation, maximum articulation from a mid-arm kit and the durability and off-road performance you expect from Rock Krawler Suspension. The triangulated 4 link rear assembly maintains the rear axle perfectly centered; allows for removal of the rear track bar, eliminates rear suspension bind, and the cross talk of the front and rear track bar arrangement greatly smoothing the highway ride.
The X Factor Series adjustable lower control arms offer a total of 90 degrees of misalignment. The Triple Rate front coils paired with our Quad rate rears coils provide unmatched ride quality and off-road performance, while maintaining standard JT rear load capacities. The Rock Krawler Pro-X Gladiator Mid Arm System is the pinnacle of bolt in suspension for the JT platform.
System Benefits:
Tire Fitment:
Sport and Overland with Full OEM Fenders
37” Tall Tires (3” Bump Stop Height Recommended)
Sport and Overland with Trimmed or High Lined OEM Fenders
38” Tall Tires (3” Bump Stop Height Recommended)
Rubicon with Full OEM Fenders
37”/38” Tall Tires (3” Bump Stop Height Recommended)
Rubicon with Trimmed or High Lined OEM Fenders
40” Tall Tires (3” Bump Stop Height Recommended)
Wheel Fitment:
Sport and Overland Wheel Fitment Recommendations
37”/38” Tall Tires - Recommend 3.5” of Back Spacing
Rubicon or Sport with Wide Track Axles Fitment Recommendations
37”/38" Tall Tires - Recommend 4.5” of Back Spacing
40” Tall Tires - Recommend 3.5” of Back Spacing
General Notes:
*All lift heights based on Rubicon models for standard style build (i.e., front bumper and winch).
*If building an overland or heavily upfitted build in the back, we recommend upsizing 1” in coil lift height for the rear.
*Designed to maintain 1/2" of rake on Rubicon Models
*As shown valid for OEM axles only
*If so equipped will require removal of rear shutter shock
*For tires larger than 37" or hard core off-road use, welding of the rear cradle to the axle tubes is required.
