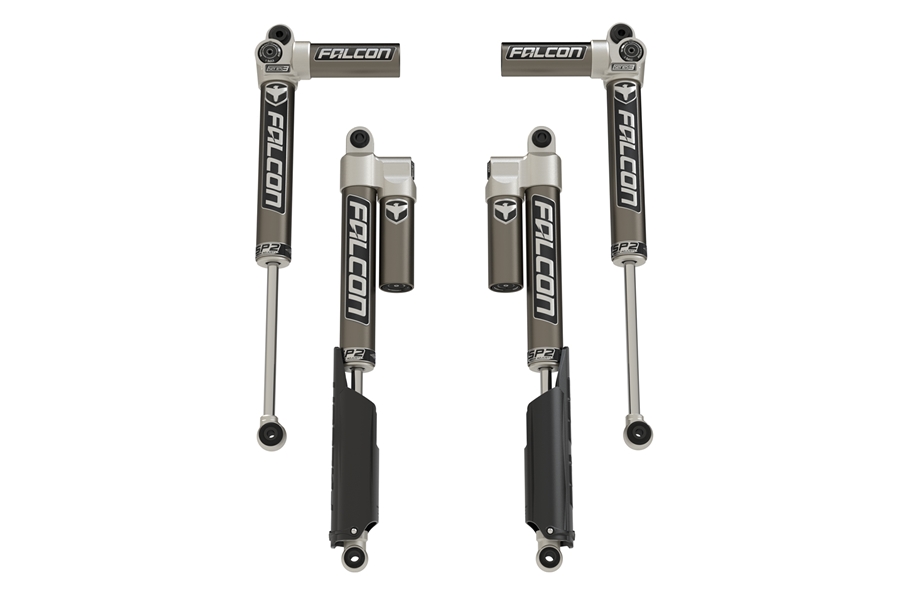

Teraflex Falcon SP2 3.1 Piggyback Shocks, 2-3in Lift

Falcon SP2 3.1 Piggyback Shocks deliver increased stability, improved ride quality, and comfort on road, while the increased compression damping provides more aggressive off-road handling. Our unique SP2 Mode Adjust feature tunes compression and rebound for Soft or Performance settings. SP2 3.1 Shocks have been optimized for on- and off-road driving.

“High-Value Performance” is the driving force behind our vehicle-specific Falcon shocks for Jeeps, trucks, and SUVs. Our shock absorbers deliver increased stability, improved ride quality, and comfort for daily driven vehicles as well as race-inspired performance, handling, and stability for off-road rigs. Falcon Performance Shocks by TeraFlex.

Includes:

• SP2 3.1 Piggyback Shocks – all 4
• Rear roost guards – pair
• All necessary hardware

Features & Benefits:

SP2 3.1 Piggyback Shocks

• SP2 3.1 Piggyback Shocks deliver increased stability, improved ride quality, and comfort on road, while the increased compression damping provides more aggressive off-road handling
• Preset damping optimized for on- and off-road driving
• Ideal for daily driven Jeeps as well as the serious enthusiast wanting a consistent, firm feel through all driving conditions
• Upgradeable to 3.3 Fast Adjust (# 00-10-33-400-160) via Cartridge Upgrade Kits for quick compression adjustments (sold separately) – contact customer service for details

JT Falcon Performance Shocks:

• JT corner-specific shock absorber
• Front lower offset eyelet design provides maximum shock body to frame clearance during articulation
• Rear roost guards prevent shock shaft damage from rocks kicked up by the tires
• Ideal for daily driven Jeeps as well as the serious enthusiast wanting a consistently firm feel through all driving conditions

SP2 Mode Adjust Shocks:

• SP2 Mode Adjust shocks add Soft and Performance modes
• Tunes both compression and rebound – provides noticeable benefits in ride quality and handling
• Twist counterclockwise for Soft and clockwise for Performance
• Adjustment is only possible w/ shock fully extended
• During normal driving, the Soft mode allows a partial bypass of the main piston for less restriction and a softer ride.
• During aggressive driving, the Soft mode retains performance tuning for optimal handling
• Soft is recommended for rough roads/trails, embedded rocks, expansion joints, and/or winter temperatures
• Performance setting recommended for maximum highway and/or off-road handling, stability, and control w/ minimal head toss
• Fast Adjust Knob and Micro Position Knob (3.3 Fast Adjust Piggyback Shock) operation unaffected

Falcon Series 3 Piggyback Shocks:

• Piggyback design features increased oil and gas capacity vs. monotube or twin-tube designs reducing heat buildup for more consistent performance
• Piggyback fluid passage design flows 6x more oil than restrictive reservoir hose designs as well as eliminates common leakage issues found in banjo and swivel fittings
• Front shock features unique piggyback design w/ horizontal reservoir to increase clearance for large tires

Falcon Performance Shocks (All):

• Vehicle-specific shock absorbers
• Race-inspired performance for increased vehicle stability
• Improved dynamic roll control and low-speed damping
• Dramatic improvement in on-road comfort and off-road performance
• Optimized fitment for maximum clearance and unobstructed suspension travel and articulation
• 2.25” shock body provides optimal performance
• 6061-T6 aluminum alloy shock body resists wear and protects internal components while providing superior heat dissipation
• Smooth honed internal shock body surface for long-term performance
• 3/4” induction hardened chrome plated shaft resists rock damage and corrosion as well as prevents shaft buckling
• Maximum shaft diameter allows for more precise tuning
• Hard anodized billet piston
• 1-piece Teflon bronze piston wear band w/ O-ring
• Digressive linear piston and base valve technology
• VOD (Volume Optimized Damping) features a digressive linear piston and base valve technology
• As the piston compresses and rebounds, the valve restricts oil flow creating a damping effect
• VOD’s quicker ramp up increases damping volume during low speed driving as well as reduces shock bottoming at full compression during faster speeds or over uneven terrain
• Inline OGS (Oil/Gas Separator) prevents cavitation
• Red Line full synthetic shock oil w/ high viscosity index of 519 for consistent performance across all temperatures and reduced shock fade
• Synthetic formula also contains special anti-wear and lubricity agents for excellent thermal stability
• 1,000-hour salt spray corrosion resistance test on all hardware
• Serviceable and rebuildable (factory serviced)
• Designed, engineered, and assembled in-house from domestic and globally sourced components
• Patent pending design
• 3-year warranty

Note(s):

• Bump stop configuration varies depending on shock absorber collapsed length, tire size, and fenders – See instructions for proper configuration for your application.
