Rock Krawler 2.5in Adventure Series 2 System Lift Kit

System Benefits:

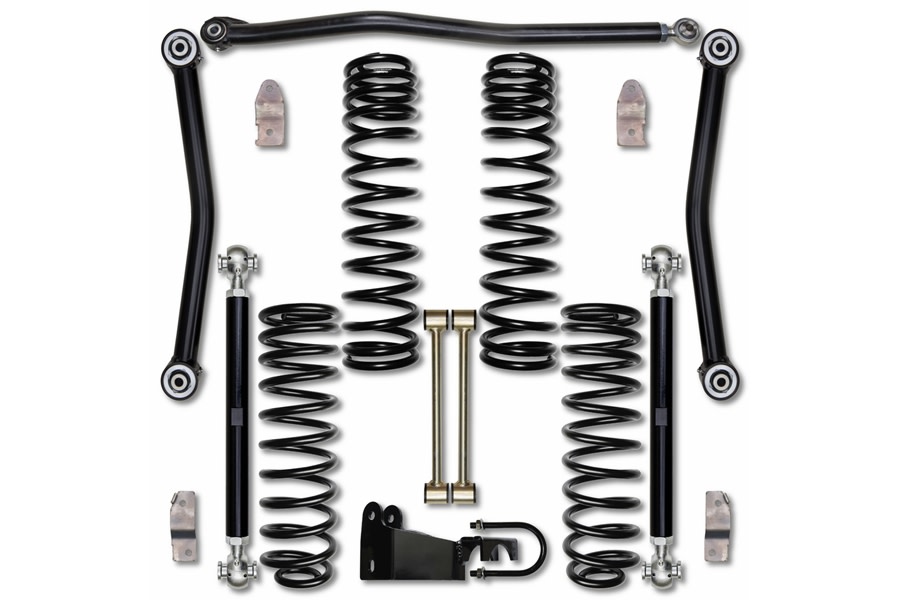

System Includes:
(4) Triple rate coil springs
(1) Adjustable 1.5 inch solid alloy steel front track bar
(2) High clearance lower control arms made of 1.625" solid alloy steel
(2) Double adjustable rear upper control arms made from solid alloy steel
(1) Rear track bar relocation bracket made from thick laser cut steel
(2) Extended rear sway bar links
(2) Front brake line relocation bracket
(2) Rear brake line relocation bracket

Bilstein 5100 Shocks:

Bilstein Part #

Front

24-186995

Rear

24-146715

(bump stops are sold separately on our components page)

If choosing a brand of shock that we have not provided a part number for, match
your shock choice as closely as possible to the generic length recommendations
below.

(We can not ensure that the valving profile in your shock choice will pair well with
our kits. This is why we recommend using our RRD Racing shocks or the provided
Bilstein part numbers)

Generic Front Shock
Recommendation with 2" bump stops - 16" Collapsed to 28" Extended

Generic Rear Shock
Recommendation with 2 " bump stops - 16" Collapsed to 26" Extended

NOTES!
- We typcially recommend 4.5" of back spacing on rims for 12.5" wide tires.

- For 2012 and newer models an aftermarket front driveshaft with 2" O.D. steel tubing is recommended, but not required.
