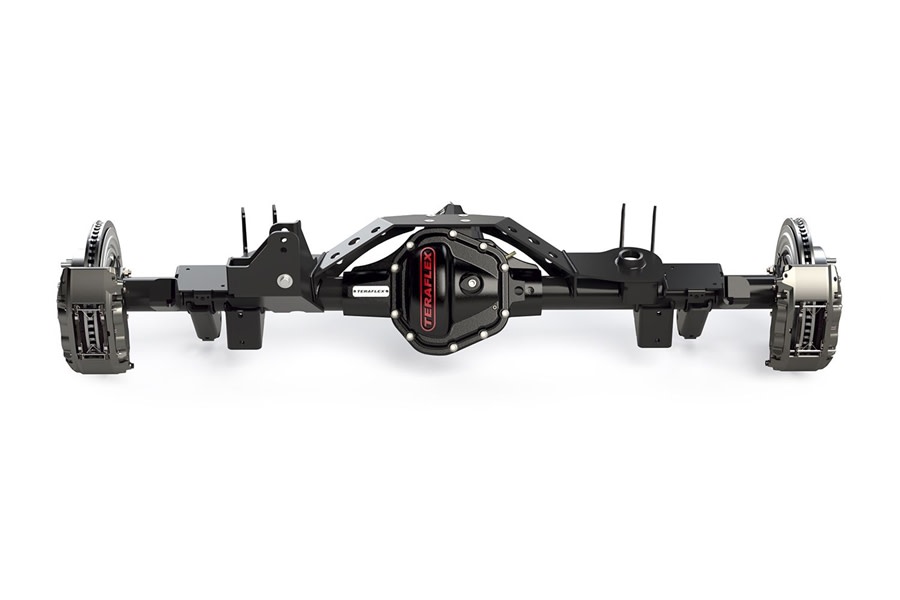

Teraflex 70in CRD60 HD Rear Axle w/ Semi-Float - 4.30 R&P and ARB Locker (0-6in Lift) - JT

Teraflex 70in CRD60 HD Rear Axle w/ Semi-Float - 4.30 R&P and ARB Locker (0-6in Lift)

JT

Teraflex 70in CRD60 HD Rear Axle w/ Semi-Float - 4.30 R&P and ARB Locker (0-6in Lift) - JT
Write a Review | Q&A
Part # 4181430We price match! Call 866-601-5340!
We Price Match
$6,712.99
NEW

Out of Stock. Average time to ship: 1-2 business days
You will earn Reward Points with this Purchase.
ANY QUESTIONS?

Product Resources

Features & Product Details

The Tera CRD60 HD Rear Axle Assembly w/ Semi-Float includes, Spicer Super 60 bearings, semi-float rear axle shafts, and sensors.

TeraFlex Tera CRD60 HD Rear Axle Housings are perfect for replacing bent, broken, or damaged axles in JT Gladiator vehicles including Rubicon models. Can also be used as a direct bolt-on upgrade for Jeep owners looking to beef up the stock axle’s weak areas.

The exclusive Constant Radius Design (CRD) provides high ground clearance that is unaffected by pinion angle adjustments. Compatible with all Super 60 gear ratios for extreme duty applications requiring additional ring & pinion strength. Our heavy-duty axle housings feature smooth profile surfaces, axle tubes, all necessary mount brackets, control arm bushings, and more!

Features and Benefits

JT: 70” Tera CRD60 HD Rear Axle w/ Semi-Float:

  • Factory-style semi-float axle design
  • 70” wheel mounting surface to wheel mounting surface
  • 3.25” O.D. x 0.375” wall DOM axle tube for superior strength vs. weight
  • 40-spline semi-float axle shafts and bearings
  • JT: Tera CRD60 Rear Axle Assembly:

  • Fixed spindle mount hub assembly
  • Tera CRD60 specific high-pinion rear axle housing design
  • Includes Spicer Super 60 bearings and install kits
  • Includes Spicer 1350 series pinion yoke
  • HD bearing caps increase rigidity and reduce ring & pinion distortion
  • Constant Radius Design (CRD) provides maximum ground clearance regardless of pinion angle
  • Built-in “skimmer” cuts ring gear oil halo and forces it into the pinion bearings
  • Outer pinion bearing pocket features a renewable oil reservoir that sends cool oil to the pinion bearing
  • Oversized outer pinion bearing handles increased torque and high-load conditions
  • High-capacity housing holds maximum amount of oil
  • Pre-installed inner axle seals
  • Ductile cast iron housing w/ increased rib gussets
  • HD ductile iron differential cover w/ increased cover mounting area
  • Integrated lower control arm skid plates
  • High-flow oil passages
  • Reinforced rear track bar mount w/ multiple mounting locations
  • UV protected triple-stage powder coat for corrosion resistance
  • 1/4”-thick CNC laser cut axle brackets for extreme strength
  • Pre-installed upper control arm bushings
  • Proper pinion angle and raised track bar bracket for lifted JL applications
  • Pre-tapped hole on spring perch for bump stop extensions
  • Retains all JL ESP, ABS, and speedometer sensor capability
  • 100% engineered, designed, and built in the USA w/ new components
  • 1-Year/Unlimited Mileage Warranty
  • Specifications

    Brand: Teraflex
    Axle Style: Semi-Float
    Axle Type: Dana 60
    Ratio: 4.30
    Spline Count: 40
    Tubing Diameter: 3.25in
    Width: 70in
    Mfgr. Warranty: 1 Year Warranty
    Condition: New Product
    Return Policy:
    Standard
