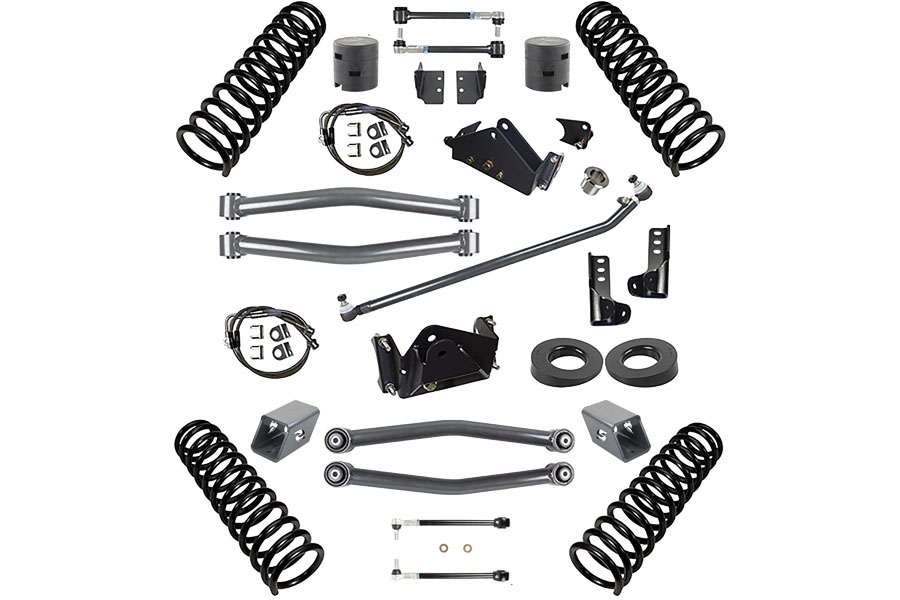

Synergy Manufacturing 3in Suspension System Lift Kit, Stage 2 - JK 2DR

Suspension
Lift Kits
3-3.5in Lifts >Synergy Manufacturing 3in Suspension System Lift Kit, Stage 2 - JK 2DR

Synergy Manufacturing 3in Suspension System Lift Kit, Stage 2

JK 2DR

INCLUDED IN PRICE

Heavy Duty Drag Link $450.00

1 x Synergy Manufacturing Heavy Duty Drag Link Kit - JK
SYN8000-01

Only 1 left!
Front Coil Springs $310.00

1 x Synergy Manufacturing Coil Springs Front 3in Lift 2-Dr / 2in Lift 4-Dr - JK/TJ/LJ/XJ
SYN8063-20

Out of stockEstimated to ship in 10-15 days
Rear Coil Springs $310.00

1 x Synergy Manufacturing Coil Springs Rear 3in Lift 2-Dr / 2in Lift 4-Dr - JK
SYN8064-20

Out of stockEstimated to ship in 10-15 days
Bump Stop Spacers $90.00

1 x Synergy Manufacturing Snap-Lock Bump Stop Spacer Kit 2-4in - JL/JK/JT
SYN8057-10

Out of stockEstimated to ship in 10-15 days
Rear Bump Stop Extension $150.00

1 x Synergy Manufacturing 3in Rear Bump Stop Spacer Kit - JT/JL/JK
SYN8858-30

Out of stockEstimated to ship in 10-15 days
Front Sway Bar Links $145.00

1 x Synergy Manufacturing Front Sway Bar Links - Pair - JK
SYN8059-11

Out of stockEstimated to ship in 10-15 days
Rear Sway Bar Links $150.00

1 x Synergy Manufacturing Rear Sway Bar Links - Pair - JK
SYN8060-11

Only 3 left!
Brake Line Kits $230.00

2x Synergy Manufacturing Front or Rear Extended Brake Line Kit - JK
SYN8066

Only 2 left!
Rear Track Bar Bracket $220.00

1 x Synergy Manufacturing Track Bar Bracket 3.00-4.50in Lift Rear - JK
SYN8056

Out of stockEstimated to ship in 10-15 days
Front Track Bar Bracket $220.00

1 x Synergy Manufacturing Track Bar Bracket Front - JK
SYN8055

Out of stockProduct will ship from manufacturer, average time to ship: 10-15 business days
Front Lower Control Arms $540.00

1 x Synergy Manufacturing Adjustable Control Arms Front Lower - JK
SYN8051

Out of stockEstimated to ship in 10-15 days
Rear Lower Control Arms $475.00

1 x Syngery Manufacturing Adjustable Control Arms Rear Lower - JL/JK
SYN8052

Out of stockEstimated to ship in 10-15 days
Rear Shock Mounts $125.00

1 x Synergy Manufacturing Rear Lower Shock Mount Kit - JK
SYN8074

Only 1 left!
Front Shocks Mounts $125.00

1 x Synergy Manufacturing Shock Mount Bracket Front Lower - JK
SYN8073

Only 2 left!
Coil Wedges $30.00

1 x Synergy Manufacturing Rear Coil Wedges - JK
SYN8097

Only 2 left!

$3,570.00

Qualifies for
free shipping!

Set your vehicle to confirm fitment

You will earn Reward Points with this Purchase.

★★★★★

(0)
Write a Review | Q&A

Part # 8022-30

Any Questions?
Chat with an expert!

ANY QUESTIONS?

Authorized
Dealer

Product Resources

Fitment Details

Features & Product Details

The Stage 2 System is the first to include lower control arms and is the first system you'll be comfortable dragging over rocks. It includes all the components from the Stage 1.5 System with the addition of Heavy-Duty Lower Control Arms (front/rear) to correct caster and increase durability off road. These lower control arms are designed to take abuse and are adjustable for low maintenance and worry free wheeling. This system will fit 35" tires with stock fenders or 37" tires with high fenders.

Features:

Stage 2 key features are front and rear track bar relocation brackets, flipped drag link, and heavy-duty fixed length lower control arms

Front and rear bump stop extension kits

Front and rear sway bar links

Front and rear extended stainless steel braided brake lines

Synergy double adjuster sleeve & pinch bolt assembly allows for adjustment of control arm, track bar, tie rod, and drag link length without removal

Front and rear track bar relocation brackets raise track bar mounting positions increasing suspension roll center heights which improves handling on and off road

Lower control arms manufactured from high quality crush resistant 1-3/4" X .188" Wall 1026 DOM tubing to increase durability and correct caster

Features Synergy Dual Durometer Bushings (DDB) with Teflon® bearing surface for a maintenance free design focusing on performance, flex, longevity, and ride quality.

Front and rear lower shock mounts

Optional front sway bar disconnect system for ultimate trail articulation mounts sway bar up and out of the way when disconnected from the axle

Progressive wound coil spring manufactured using the latest in CNC hot winding technology keeps spring from coming unbound at full suspension droop

Suspension components feature an abrasion-resistant powder coat finish for maximum durability and corrosion resistance

100% bolt on components assure an easy, trouble free installation with the use of basic hand tools

Requires a maximum 4-3/4" backspace wheel or wheel spacer with factory wheel setup. 4-1/2" back spacing is recommended

Synergy suspension systems are a modular design so all components are available separately

Fitment Notes:

2012+ JK's lifted over 2" will require exhaust spacers (5017), or a front aftermarket drive shaft to prevent interference with the exhaust.

"3" and up lifts, aftermarket driveshafts are recommended. When a rear aftermarket driveshaft is used with the Stage 2 Suspension System, rear adjustable upper control arms must also be used to correct the rear pinion angle.

Springs are designed to provide the advertised amount of lift with use of aftermarket bumpers, winches, & tire carriers. More lift will occur on vehicles in stock trim.

Springs retain the factory rake of the vehicle where the rear is higher than the front. Vehicle should sit level when loaded. Request one size shorter rear springs to level the vehicle out when unloaded.

Requires 16" or larger wheel diameter

Recommended Components:

(1) 8002-15 - Synergy Chromoly Tie Rod

(1) 8007-03 - Fox Hi-Mount Stabilizer Kit

(1) 8077 - Synergy Sway Bar Disconnect Mount Hardware

(1) 5017 - 2012+ Exhaust Spacer
