Synergy Manufacturing Stage 4 Suspension System 4in Lift - JK 2dr

Suspension
Lift Kits
4-5in Lifts >Synergy Manufacturing Stage 4 Suspension System 4in Lift - JK 2dr

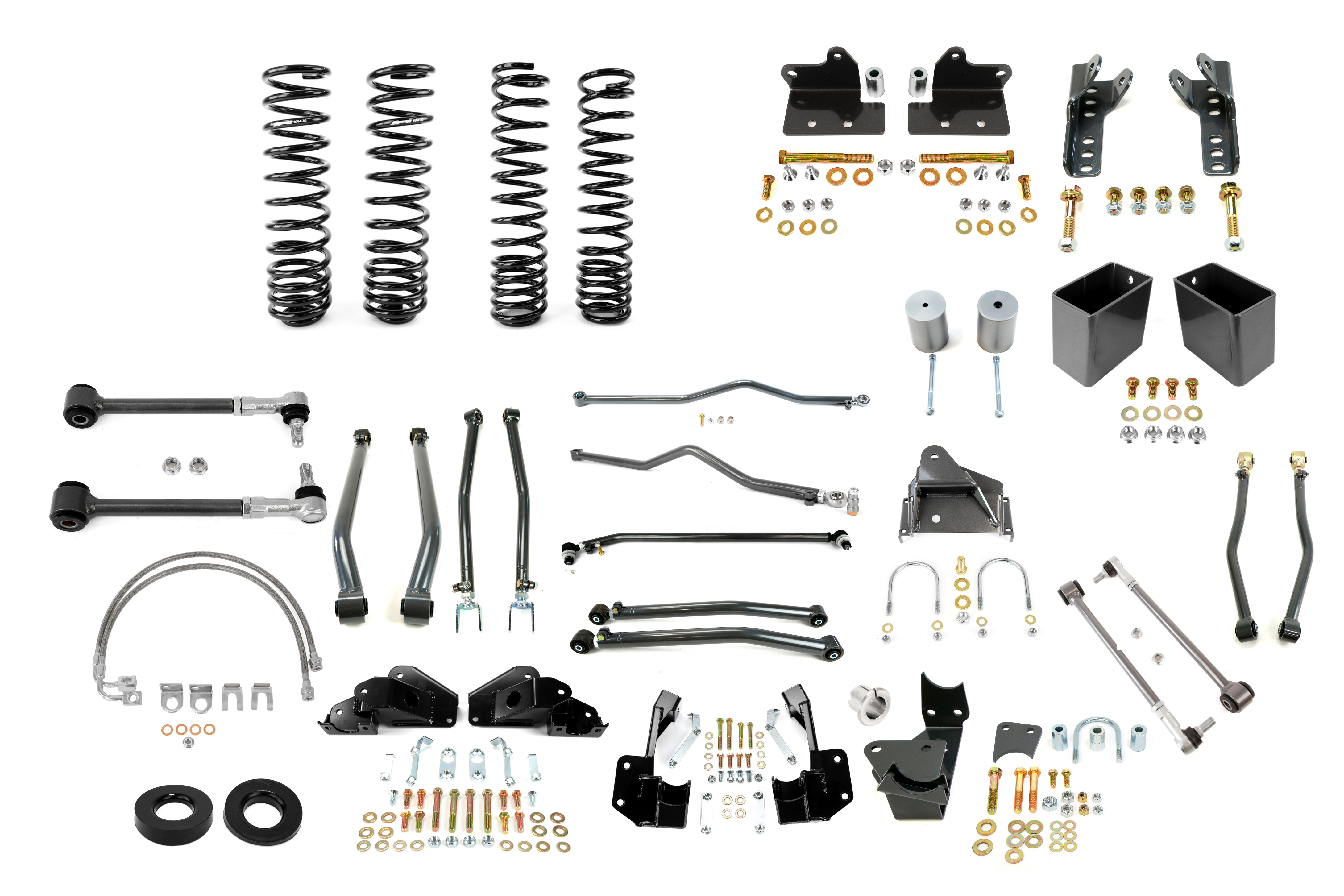

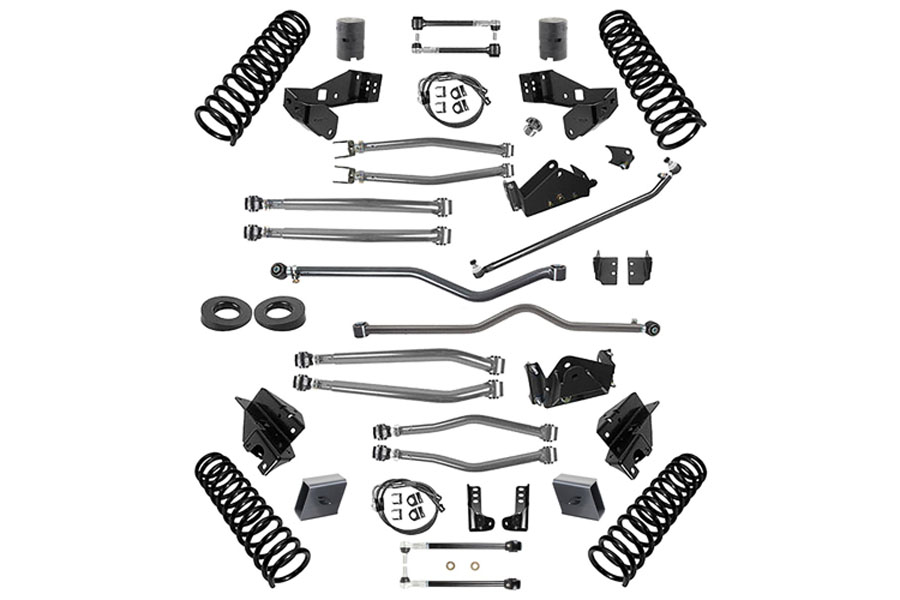

Synergy Manufacturing Stage 4 Suspension System 4in Lift

JK 2dr

INCLUDED IN PRICE

Front/Rear Bump Stop Spacers $90.00

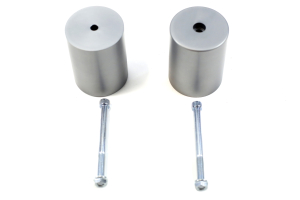

1 x Synergy Snap-Lock Bump Stop Spacer Kit 2-4in - JL/JK/JT
SYN8057-10

In stock!
Front Coil Springs $310.00

1 x Synergy Manufacturing Coil Springs Front 4in Lift 2-Dr / 3in Lift 4-Dr - JK/TJ/LJ/XJ
SYN8063-30

Only 1 left!
Rear Coil Springs $310.00

1 x Synergy Manufacturing Coil Springs Rear 4in Lift 2-Dr / 3in Lift 4-Dr - JK
SYN8064-30

Only 2 left!
Front/Rear Brake Line Kit $230.00

2x Synergy Manufacturing Front or Rear Extended Brake Line Kit - JK
SYN8066

In stock!
Rear Track Bar Bracket $220.00

1 x Synergy Manufacturing Track Bar Bracket 3.00-4.50in Lift Rear - JK
SYN8056

Only 3 left!
Front Track Bar Bracket $220.00

1 x Synergy Manufacturing Track Bar Bracket Front - JK
SYN8055

In stock!
Front Track Bar $330.00

1 x Synergy Manufacturing Front Track Bar - JK
SYN8075-02

In stock!
Drag Link $450.00

1 x Synergy Manufacturing Heavy Duty Drag Link Kit - JK
SYN8000-01

In stock!
Rear Long Arm Brackets $900.00

1 x Synergy Manufacturing Rear Long Arm Frame Brackets - JK
SYN8030

Only 1 left!
Front Long Arm Brackets $680.00

1 x Synergy Manufacturing Front Long Arm Frame Brackets - JK
SYN8031

Out of stockEstimated to ship in 10-15 days
Front Long Arm Lower Control Arms $630.00

1 x Synergy Manufacturing Long Arm Front Lower Control Arms - JK
SYN8033

Only 1 left!
Front Long Arm Upper Control Arms $490.00

1 x Synergy Manufacturing Front Long Arm Upper Control Arms - JK
SYN8035

Only 2 left!
Rear Long Arm Lower Control Arms $530.00

1 x Synergy Manufacturing High Clearance Long Arm Lower Control Arms Rear - JK
SYN8036

Out of stockEstimated to ship in 10-15 days
Rear Long Arm Upper Control Arms $450.00

1 x Synergy Manufacturing Rear Long Arm Upper Control Arms - JK
SYN8038

Only 3 left!
Rear Lower Shock Mounts $125.00

1 x Synergy Manufacturing Rear Lower Shock Mount Kit - JK
SYN8074

In stock!
Front Lower Shock Mounts $125.00

1 x Synergy Manufacturing Shock Mount Bracket Front Lower - JK
SYN8073

Only 2 left!
Rear Coil Wedges $30.00

1 x Synergy Manufacturing Rear Coil Wedges - JK
SYN8097

In stock!
Rear Track Bar $350.00

1 x Synergy Manufacturing Rear Track Bar - JK
SYN8062-02

Only 1 left!
Rear Bump Stop Extension $150.00

1 x Synergy Manufacturing Rear Bump Stop Spacer Kit, 4in - JK/JL/JT
SYN8858-40

Out of stockEstimated to ship in 10-15 days
Front Sway Bar Links $145.00

1 x Synergy Manufacturing Front Sway Bar Links - Pair - JK
SYN8059-11

In stock!
Rear Sway Bar Links $150.00

1 x Synergy Manufacturing Rear Sway Bar Links - Pair - JK
SYN8060-11

In stock!

$6,915.00

6915 entries6915 entries - 2025 Northridge4x4 Jeep Giveaway

Qualifies for
free shipping!

Set your vehicle to confirm fitment

You will earn Reward Points with this Purchase.

Write a Review | Q&A

Part # 8024-40

Any Questions?
Chat with an expert!

ANY QUESTIONS?

Authorized
Dealer

Product Resources

Installation Instructions

Fitment Details

Features & Product Details

The Stage 4 System is for those wanting maximum performance and capability without sacrificing ride quality. It carries over the quality components of the Stage 3 System but improves upon them by swapping out the Standard-Length Control Arms for Adjustable Long Arms and Long Arm Mounting Brackets. This is a 100% bolt on system with no welding required. This system will fit 37" tires with stock fenders or 40" tires with high fenders.

Notes:

Diesel models will require a set of spacers to be fabricated for installation. The transmission cross member is located further back on diesel models and the front long arm brackets will not sit flush to the cross member

Springs retain the factory rake of the vehicle where the rear is higher than the front. Vehicle should sit level when loaded. Request one size shorter rear springs to level the vehicle out when unloaded

Features:

Stage 4 key features are front and rear track bar relocation brackets, flipped drag link, and all adjustable upper & lower long arms

Front and rear bump stop extension kits

Front and rear sway bar links

Front and rear extended stainless steel braided brake lines

Synergy double adjuster sleeve & pinch bolt assembly allows for adjustment of control arm, track bar, tie rod, and drag link length without removal

Front and rear track bar relocation brackets raise track bar mounting positions increasing suspension roll center heights which improve handling on and off road

Lower control arms are manufactured from high quality crush resistant 2" X .250" Wall 1026 DOM tubing

Features Synergy Dual Durometer Bushings (DDB) with Teflon® bearing surface for a maintenance free design focusing on performance, flex, longevity, and ride quality.

Front and rear lower shock mounts

Optional front sway bar disconnect system for ultimate trail articulation mounts sway bar up and out of the way when disconnected from the axle

Progressive wound coil spring manufactured using the latest in CNC hot winding technology keeps spring from coming unbound at full suspension droop

Suspension components feature an abrasion-resistant powder coat finish for maximum durability and corrosion resistance

100% bolt on components assure an easy, trouble-free installation with the use of basic hand tools

Requires a maximum 4-3/4" backspace wheel or wheel spacer with factory wheel setup. 4-1/2" back spacing is recommended

Synergy suspension systems are a modular design, so all components are available separately

Note: 2012+ JK's lifted over 2" will require exhaust spacers, or a front aftermarket drive shaft to prevent interference with the exhaust.
