Suspension
Lift Kits

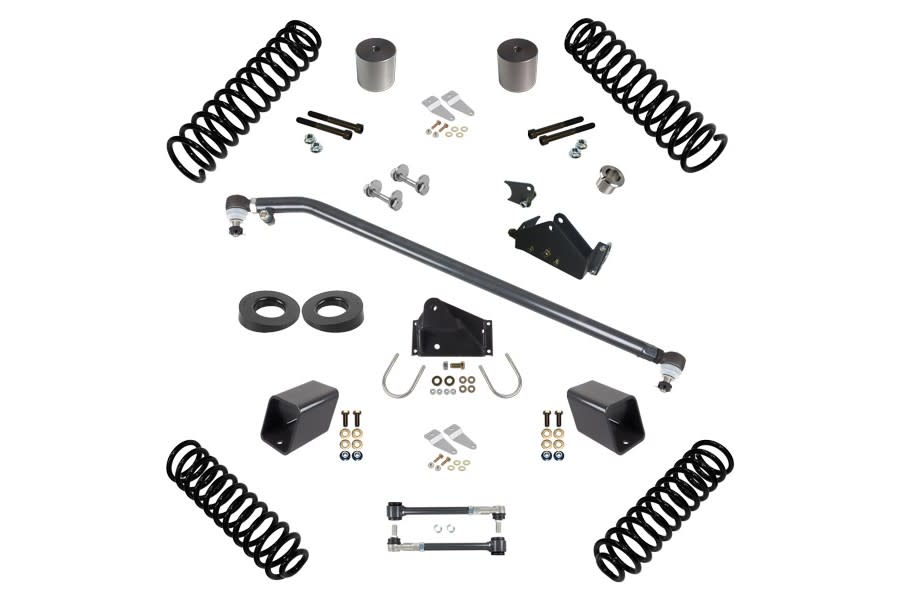

3-3.5in Lifts >Synergy Manufacturing 3in Suspension System Lift Kit, Stage 1.5 - JK 2DR

Synergy Manufacturing 3in Suspension System Lift Kit, Stage 1.5

JK 2DR

INCLUDED IN PRICE

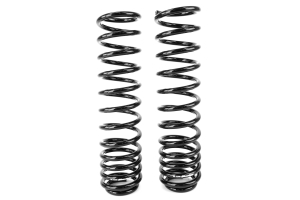

Front Coil Springs $270.00

1 x Synergy Manufacturing Coil Springs Front 3in Lift 2-Dr / 2in Lift 4-Dr - JK/TJ/LJ/XJ
SYN8063-20

Estimated to ship in 30 days

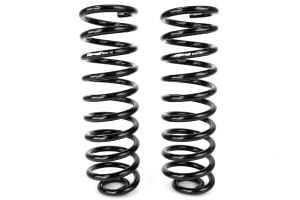

Rear Coil Springs $270.00

1 x Synergy Manufacturing Coil Springs Rear 3in Lift 2-Dr / 2in Lift 4-Dr - JK
SYN8064-20

Only 1 left!
Front Bump Stop Spacers $85.00

1 x Synergy Snap-Lock Bump Stop Spacer Kit 2-4in - JL/JK/JT
SYN8057-10

In stock!
Rear Sway Bar Links $125.00

1 x Synergy Manufacturing Rear Sway Bar Links - Pair - JK
SYN8060-11

Only 3 left!

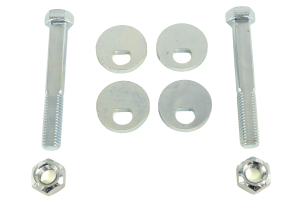

Control Arm Cam Bolt Kit $45.00

1 x Synergy Manufacturing Lower Control Arm Cam Bolt Kit - JK
SYN8004

Only 2 left!
Rear Track Bar Bracket $220.00

1 x Synergy Manufacturing Track Bar Bracket 3.00-4.50in Lift Rear - JK
SYN8056

Estimated to ship in 30 days
Front Track Bar Bracket $220.00

1 x Synergy Manufacturing Track Bar Bracket Front - JK
SYN8055

Only 3 left!
Drag Link $425.00

1 x Synergy Manufacturing Heavy Duty Drag Link Kit - JK
SYN8000-01

In stock!
Rear Coil Wedges $30.00

1 x Synergy Manufacturing Rear Coil Wedges - JK
SYN8097

Only 2 left!
Brake Line Relocation Kit $35.00

1 x Synergy Manufacturing Brake Line Relocation Kit, Front - JK
SYN8083

Estimated to ship in 30 days
Rear Brake Line Relocation Kit $35.00

1 x Synergy Manufacturing Brake Line Relocation Kit Rear - JK
SYN8084

Estimated to ship in 30 days
Rear Bump Stop Spacer Kit $150.00

1 x Synergy Manufacturing 3in Rear Bump Stop Spacer Kit - JT/JL/JK
SYN8858-30

Only 2 left!

$1,910.00

Qualifies for
free shipping!

Set your vehicle to confirm fitment

You will earn Reward Points with this Purchase.

Write a Review | Q&A

Part # 8025-30

Any Questions?
Chat with an expert!

ANY QUESTIONS?

Authorized
Dealer

Product Resources

Fitment Details

Features & Product Details

The Stage 1.5 System increases the lift height to 3" with our 3" Progressive Coil Springs and takes full advantage of our Raised Rear Track Bar Bracket and Front Steering Correction Kit for optimal steering and suspension geometry. With the steering corrected for 3" of lift, this system will drive as good, if not better, than stock. This system will fit 35" tires with stock fenders or 37" tires with high fenders.

Features

Stage 1.5 key features are front and rear track bar relocation brackets and flipped drag link

Front and rear bump stop extension kits

Rear sway bar links so the factory rears can be used in the front

Front and rear brake line relocation kits

Synergy double adjuster sleeve & pinch bolt assembly allows for adjustment of control arm, track bar, tie rod, and drag link length without removal

Front and rear track bar relocation brackets raise track bar mounting positions increasing suspension roll center heights which improves handling on and off road

Control arm cam bolt kit to correct caster

Progressive wound coil spring manufactured using the latest in CNC hot winding technology keeps spring from coming unbound at full suspension droop

Suspension components feature an abrasion-resistant powder coat finish for maximum durability and corrosion resistance

100% bolt on components assure an easy, trouble-free installation with the use of basic hand tools

Requires a maximum 4-3/4" backspace wheel or wheel spacer with factory wheel setup. 4-1/2" back spacing is recommended

Synergy suspension systems are a modular design, so all components are available separately

Notes:

2012+ JK's lifted over 2" will require exhaust spacers, or a front aftermarket drive shaft to prevent interference with the exhaust.

3" and up lifts, aftermarket driveshafts are recommended

Springs are designed to provide the advertised amount of lift with use of aftermarket bumpers, winches, & tire carriers. More lift will occur on vehicles in stock trim.

Springs retain the factory rake of the vehicle where the rear is higher than the front. Vehicle should sit level when loaded. Request one size shorter rear springs to level the vehicle out when unloaded.

Requires 16" or larger wheel diameter
