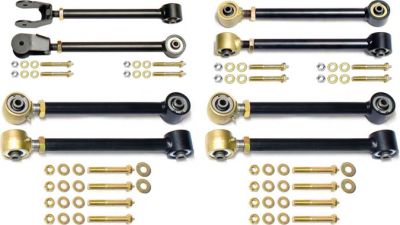

RockJock Complete Johnny Joint Control Arms Set - TJ

RockJock Complete Johnny Joint Control Arms Set

TJ

INCLUDED IN PRICE
You will earn Reward Points with this Purchase.
Write a Review | Q&A
Part # CE-9100We price match! Call 866-601-5340!
We Price Match
ANY QUESTIONS?

Features & Product Details

RockJock's complete set of 8 Johnny Joint control arms for TJ Wrangler and LJ Unlimited vehicles provides length adjustability on all 8 arms, allowing the pinion angle and caster angle to be adjusted. The adjustable feature of our arms allows your vehicle to be upgraded to different lift amounts without having to replace the control arms in the future.

All arms are made from 1 in. x .156 in. wall DOM tubing, are powder coated semi-gloss black, and come with zerk fitted grade 8 mounting bolts. To allow complete unrestricted movement, the Johnny Joint is used at both ends of all 4 of the rear arms, both ends of the front lowers, and on one end of the front upper arms. This is also a great time to replace the stock front differential housing bushings with our CE-9102K Johnny Joint front end housing conversion kit to add Johnny Joints to that point also!

Kit Includes:

  • Johnny Joint Front Upper Control Arms
  • Johnny Joint Front Lower Control Arms
  • Johnny Joint Rear Upper Control Arms
  • Johnny Joint Rear Lower Control Arms
  •

    Adjustment Range:

  • Front Upper = 14.405 in. Closed & 15.500 in. Extended
  • Front Lower = 15.292 in. Closed  & 16.882 in. Extended
  • Rear Upper = 12.834 in. Closed & 14.000 in. Extended
  • Rear Lower = 15.292 in. Closed & 16.882 in. Extended
  •

    Notes:

  • Upper Arms include Greasable Bolts & Lower Arms include Greasable Bolts.
  • Upper arms are fabricated from 1 in. x .156 in. wall D.O.M. steel tubing, lower arms are 1 1/4 in. x .188. in. wall D.O.M. steel tubing.
  • Upper arms feature 3/4 in.-16 RH threads, lower arms feature 1 in.-14 RH threads.
  • Installation of the front upper arms may require reaming the front differential housing bushing inner sleeve out to 7/16 in.
  • We highly recommend the use of our Front End Housing Johnny Joint Kit in conjunction with this arm set.
  • Johnny Joints require non-synthetic, hi-moly lube grease such as our Johnny Joint Grease.
  • Specifications

    Brand: RockJock
    Kit Package: Yes
    Mfgr. Warranty: 2 Year
    Condition: New Product
    Return Policy:
    Standard
