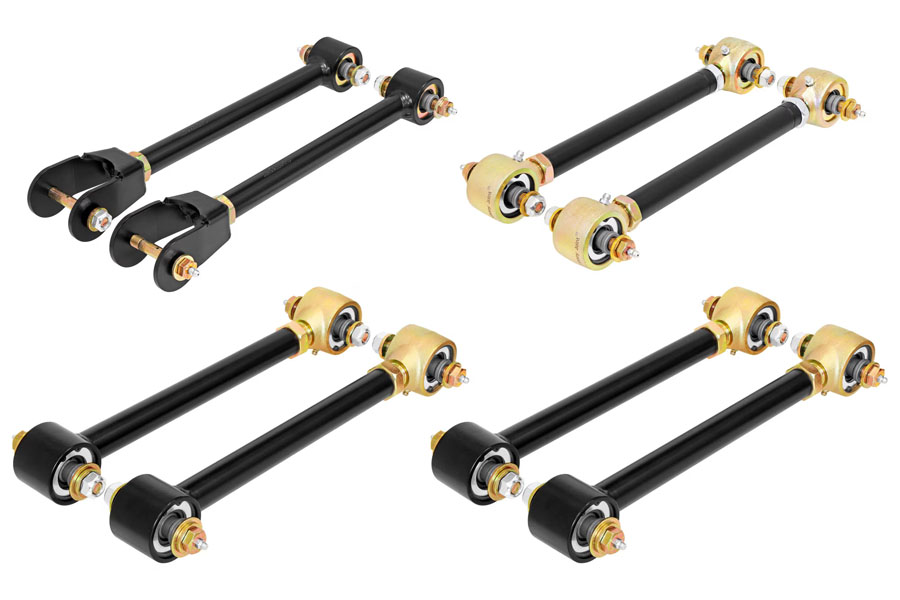

RockJock Complete Johnny Joint Control Arms Set w/Double Adjustable Rear Uppers - TJ/LJ

RockJock Complete Johnny Joint Control Arms Set w/Double Adjustable Rear Uppers

TJ/LJ

INCLUDED IN PRICE
$1,850.00

Does not fit your
1971 Jeep CJ5 Base
You will earn Reward Points with this Purchase.
★★★★★
★★★★★
()
Write a Review | Q&A
Part # CE-9100AWe price match! Call 866-601-5340!
We Price Match
ANY QUESTIONS?

Features & Product Details

RockJock's Johnny Joint Control Arm Set with double adjustable rear upper arms for all TJ Wrangler and Unlimited (LJ) models provides you with extremely heavy duty, adjustable length control arms to replace all 8 of your factory control arms. Adjustable control arms are an absolute must after your lifting your vehicle to get your caster and pinion angles back in check!

The double adjustable feature of the rear upper arms allows you to make adjustments quickly and easily without having to remove either end of the arms from the vehicle! Additionally, the double adjustable arms can achieve shorter and longer open and closed lengths, if you are needing a little extra that the single adjustable arms are unable to provide.

Arms feature RockJock’s Johnny Joints, the original and most durable high-articulation urethane suspension joint on the market. Johnny Joints feature a smooth steel ball that pivots inside a proprietary urethane shell to provide over 30 degrees (per joint) of quiet, shock dampening articulation - without the excessive deflection found in soft rubber-based flex joints. Johnny Joints deliver a smooth, comfortable on-road ride with the ultimate in off-road capability. They are so trusted that they are used by multiple commercial suspension companies, for both street and off-road suspension systems. Learn more here.

Arms are fully greasable via zerk fitted Grade 8 hardware. Finish is semi-gloss black powder coat on the arms & front forks and gold zinc plating on the Johnny Joint adjuster ends.



Adjustment Range:

  • Front Upper  =  14.405 in. Closed  /  15.500 in. Extended
  • Front Lower  =  15.292 in. Closed  /  16.882 in. Extended
  • Rear Upper  =  12.668 in. Closed  /  15.000 in. Extended
  • Rear Lower  =  15.292 in. Closed  /  16.882 in. Extended
  •

    Notes:

  • Upper Arms include CE-91127 Greasable Bolts & Lower Arms include CE-91107 Greasable Bolts.
  • Upper arms are fabricated from 1 in. x .156 in. wall D.O.M. steel tubing, lower arms are 1 1/4 in. x .188 in. wall D.O.M. steel tubing.
  • Front upper arms feature 3/4 in.-16 RH threads, rear upper arms feature 3/4 in.-16 RH & LH threads, and all lower arms feature 1 in.-14 RH threads.
  • Installation of the front upper arms may require reaming the front differential housing bushing inner sleeve out to 7/16 in.
  • We highly recommend the use of CE-9102K kit in conjunction with this arm set.
  • Johnny Joints require non-synthetic, hi-moly lube grease such as CE-9013G
  • Specifications

    Brand: RockJock
    Kit Package: Yes
    Mfgr. Warranty: 2 Year
    Condition: New Product
    Return Policy:
    Standard
