Rock Krawler 4.5in X Factor X2 Long Arm Suspension Lift Kit w/ 6in Rear Stretch - JK 2dr

Rock Krawler 4.5in X Factor X2 Long Arm Suspension Lift Kit w/ 6in Rear Stretch

JK 2dr

Rock Krawler 4.5in X Factor X2 Long Arm Suspension Lift Kit w/ 6in Rear Stretch - JK 2dr
INCLUDED IN PRICE
$5,345.62
+$ Oversize Shipping Surcharge

Write a Review | Q&A
Part # JK45X2LA-6S
ANY QUESTIONS?

Product Resources

Features & Product Details

The Rock Krawler JK 4.5 X Factor X2 Stretch Systems is the ultimate JK Long Arm system for the trail. The X Factor systems feature 3 link rear set-up front & rear for maximum articulation and off-road performance. The rear suspension provides the tried and true independent 3 link conversion with X2 rear suspension geometry. New high clearance axle mounts provide 3.5” of ground clearance under the rear axle as compared to stock. Rear upper shock relocation brackets ensure you do not lose any shock travel. The combination of high clearance mounts and 3 link suspension geometry lets you dominate the trails.

System Benefits:

  • Improved Highway Ride
  • 6” Rear Stretch
  • High Steer Upgrade
  • Best in class Off-Road Ability
  • Independent 3 Link Long Arm Front Suspension
  • Independent 3 Link Long Arm Rear Suspension
  • Heat Shield thermal barrier products, just like OEM to protect the front control arm joints at the frame
  • 3.5” Rear Clearance Gain from the X2 Axle Bracket System
  • Adjustable Rear Anti-Squat Featuring X2 Geometry

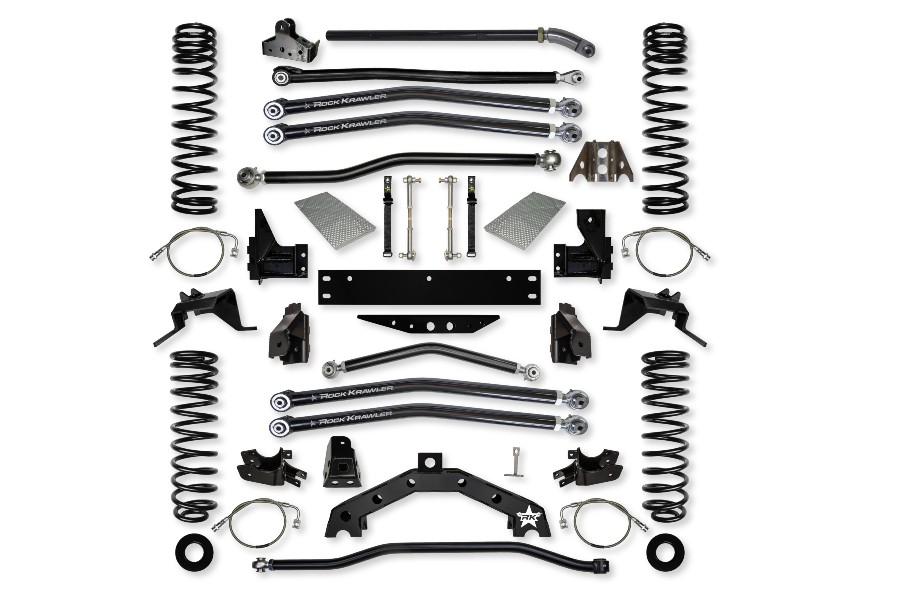

  • System Includes:



    (2) Front frame side long arm mounts

    (2) Heat Shield Products thermal barrier

    (1) Front axle side weld-on track bar bracket

    (1) Pro series drag link

    (1) 1/4” thick laser cut steel cross member

    (2) Front high clearance adjustable lower control arm

    (1) Front double adjustable upper control arm

    (1) Front axle side weld-on control arm bracket

    (1) Front adjustable anti-wobble track bar

    (1) Front sway bar disconnect kit

    (2) Front triple rate coil spring

    (2) Rear frame side weld-on control arm bracket

    (2) Rear high clearance adjustable lower control arm

    (1) Rear double adjustable upper control arm

    (1) Rear adjustable anti-wobble track bar

    (1) Rear weld-on dual sport track bar bracket

    (1) Rear weld-on axle truss

    (2) Rear frame side weld-on shock mount

    (2) Rear axle side high clearance control arm/shock/sway bar link mount

    (2) Rear triple rate coil spring

    (2) 6” offset spring mount

    (1) Rear frame side track bar mount

    (2) Front extended brake line

    (2) Rear extended brake line

    *hardware and detailed instructions

    General Notes:

    *All lift heights based on Rubicon models for standard style build (i.e. front bumper and winch, rear bumper and full size spare).

    *If building with a spare delete we recommend dropping 1” in coil lift height for the rear.

    *If building an overland or heavily upfitted build in the back, we recommend upsizing 1” in coil lift height for the rear.

    *The X Factor Stretch System is designed for flat fender and stretch rear corner use. This will require body work.

    *Requires removal of many OEM brackets both at the frame and axles. See instructions for details.

    *Requires welding of many Rock Krawler brackets both at the frame and axle. See instructions for details.

    *Minor exhaust rerouting required before the collector on the driver's side to be done prior to the suspension system install.

    *Recommend installation of limiting straps to avoid over extension of suspension components.

    *This system pushes the rear axle back approximately 1”, to center the rear axle assembly and prevent larger tire from contacting the rock sliders and pinch seam.

    *System designed for low pinion axles. Contact Rock Krawler for high pinion options.

    *Recommend 4.5” of back spacing on rims for 33” and 35” tall tires.

    *Recommend 3.5” of back spacing on rims for 37” tall tires.

    Specifications

    Brand: Rock Krawler
    Kit Package: Yes
    Mfgr. Warranty: Limited Lifetime
    Condition: New Product
    Return Policy:
    Standard
