Now available with a thicker-wall bottom tube! Select the .250-wall option for a 2" OD × .250" wall DOM bottom tube, paired with a 2" OD × .125" wall DOM top tube. This option adds material to the lower tube while limiting the added weight of the complete assembly.
The .250-wall option is made to order with a 2–3 week lead time.
When you install an aftermarket long-arm suspension on a Jeep Gladiator JT, the rear lower control arm brackets are often relocated along the frame rails. That creates a clearance problem when installing traditional frame-mounted rock sliders because the rear rocker guard mounting brackets can occupy the same space as the suspension brackets. The Motobilt MB1259 Frame Mounted Rocker Guards are designed specifically for Gladiator builds where rear long-arm suspension mounting locations require additional fabrication clearance.
Unlike body-mounted rocker guards that transfer impacts into the sheet metal and body mounts, the MB1259 rock sliders weld directly to the Jeep frame. This creates a barrier between the Gladiator body and trail obstacles while directing impacts into the frame instead of the body panels.

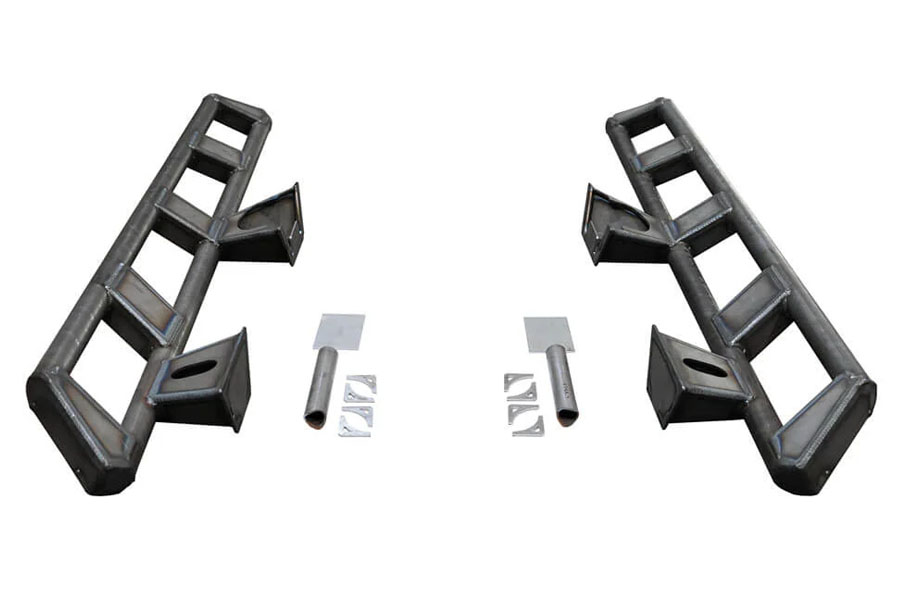

The MB1259 kit includes a pair of fully welded rocker guard assemblies with the rearmost frame mounting connections left off. Loose mounting tubes, plates, and gussets are included so the installer can position and fabricate the rear frame connections around the existing long-arm suspension brackets. This allows the mounting layout to be adapted to many aftermarket rear long-arm suspension configurations without having to redesign the entire rocker guard.
The main slider sections are constructed from 2" DOM steel tubing. The frame mounting plates, end caps, center bracing, and gussets are fabricated from 3/16" steel plate, with laser-cut and CNC-formed components used throughout the assemblies.
These Gladiator rock sliders are built for fabricators who need frame-mounted rocker protection without ignoring the suspension packaging underneath the Jeep. The kit ships in bare steel and requires fitting, welding, and protective finishing. Step-by-step installation instructions are included to guide the fabrication and installation process.
Important information
Designed for aftermarket rear long-arm suspension applications
Sold as a pair, driver and passenger side
Frame-mounted design transfers trail impacts into the vehicle frame
Main rocker guard assemblies arrive fully welded, except for the customizable rear frame mounting connections
Includes loose rear mounting tubes, plates, and gussets
Rear mounting connections must be positioned, fitted, and welded during installation
Allows rear frame mounts to be fabricated around many aftermarket long-arm suspension brackets
Main slider tubing constructed from 2" DOM steel
Frame mounting plates, end caps, center bracing, and gussets constructed from 3/16" steel
Laser-cut and CNC-formed steel components
Certain 2019–2020 Gladiator JT models with three-bolt transmission crossmembers on the passenger-side frame rail require trimming the base of the mounting bracket
Requires installation by a qualified welder or fabricator
Ships bare steel and must be painted or coated before use
For Gladiators without a rear long-arm suspension, see the standard MB1193 Frame Mounted Rocker Guards
Product specifications
Suspension Application: Aftermarket rear long-arm suspensions
Main Slider Tubing: 2" DOM steel tubing
Frame Mount Material: 3/16" steel plate
End Caps and Center Bracing: 3/16" laser-cut and formed steel plate
Rear Mounting Components: Loose steel tubes, plates, and gussets for custom fitting and welding
Mounting Method: Weld-on frame mounts with installer-fabricated rear mounting connections
Finish: Bare steel
Quantity: Pair, driver and passenger side
Dimensions (H/W/D): 94" x 28" x 12"
Weight: 275 lbs
Manufactured: Made in the USA
Notes
The MB1259 requires welding and fabrication. The rocker guard assemblies are supplied with the rearmost frame mounting connections left off so the installer can position those connections around the rear lower control arm brackets used by the aftermarket long-arm suspension.
Test fit the rocker guards against the frame rails and identify the suspension bracket locations before cutting, positioning, or welding the loose rear mounting components. The supplied tubes, plates, and gussets allow the rear mounting connections to be adapted to the available space. Final mounting geometry will depend on the suspension configuration.
Certain 2019–2020 Gladiator JT models equipped with a three-bolt transmission crossmember on the passenger-side frame rail require trimming the base of the mounting bracket for clearance.
The kit ships in bare steel. Complete all fitting and welding before applying the final protective finish. If powder coating is used before final installation, coating must be removed from all weld areas, and those areas must be protected after welding.
Always disconnect the vehicle battery cables before welding. Installation should be completed by a qualified welder or fabricator familiar with frame-mounted components and suspension bracket clearance.
Step-by-step installation instructions are included.
