Motobilt Cage Bracket Kit - Bare

Build your own custom JT 4 Door tubular cage!

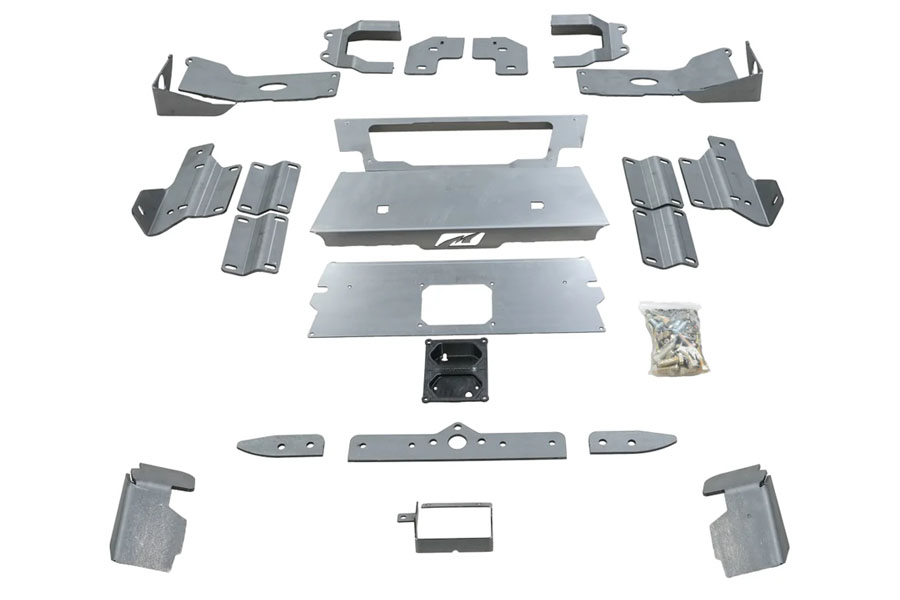

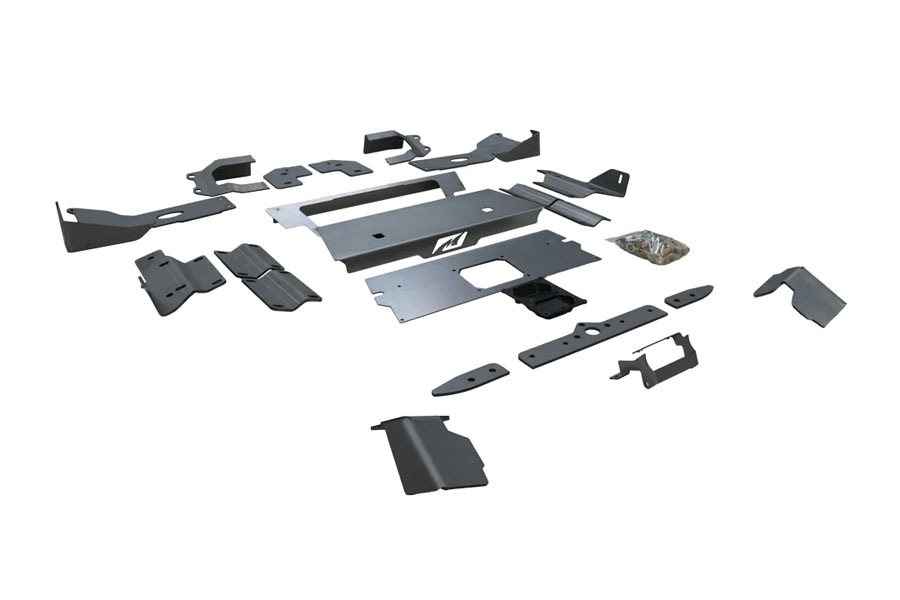

This premium Builder Kit includes a complete set of precisely engineered plates designed to establish all major mounting points for fabricating your own tubular cage. Each connection allows you to design and assemble your cage, then unbolt it from the vehicle using our machined threaded weld nuts. This feature makes it easy to remove your cage for welding, powder coating, or painting before final installation.

A-PILLAR:

The lower A-Pillar brackets weld into the existing reinforced substructure behind the dash. We provide plates that mount at these factory points to secure a lower windshield dash tube.

B-PILLAR:

Lower B-Pillar connections combine factory mounts with reinforced drill-through locations. We provide machined weld nuts to secure our Tubing Foot Plates, resulting in a strong, bolted connection. Integrated cutouts let you reuse factory seat belts.

C-PILLAR:

The C-Pillar substructure  welds to the factory structure. This allows for both a mounting point for the rear cage but also a mount for a rear cross brace to tie the rear mounts together.

If you’ve always wanted to build your own custom roll cage but didn’t know where to start, this kit is the perfect solution.

We recommend using a minimum of 1.75" OD x 0.120" wall DOM tubing (not included). This kit also accommodates 2.0" OD x 0.120" wall DOM tubing.
