Artec Industries Full Bellypan Skid Plate, Aluminum - JL 4Dr 2.0L
Artec Industries Full Bellypan Skid Plate, Aluminum - JL 4Dr 2.0L
Artec Industries Full Bellypan Skid Plate, Aluminum - JL 4Dr 2.0L
Artec Industries Full Bellypan Skid Plate, Aluminum - JL 4Dr 2.0L

Artec Industries Full Bellypan Skid Plate, Aluminum

JL 4Dr 2.0L

Write a Review | Q&A
Part # JL4102
$1,999.99

Only 1 left!

Product Resources

Features & Product Details

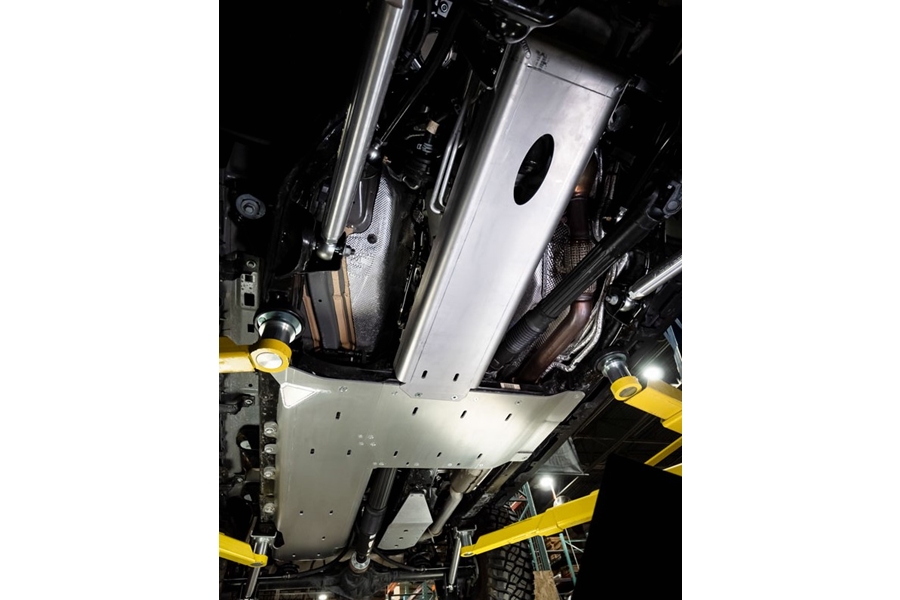

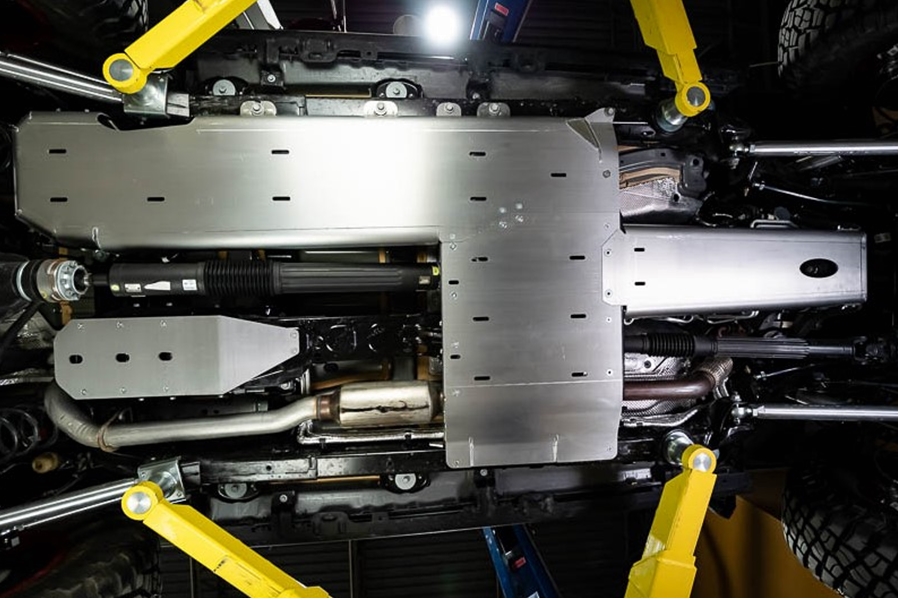

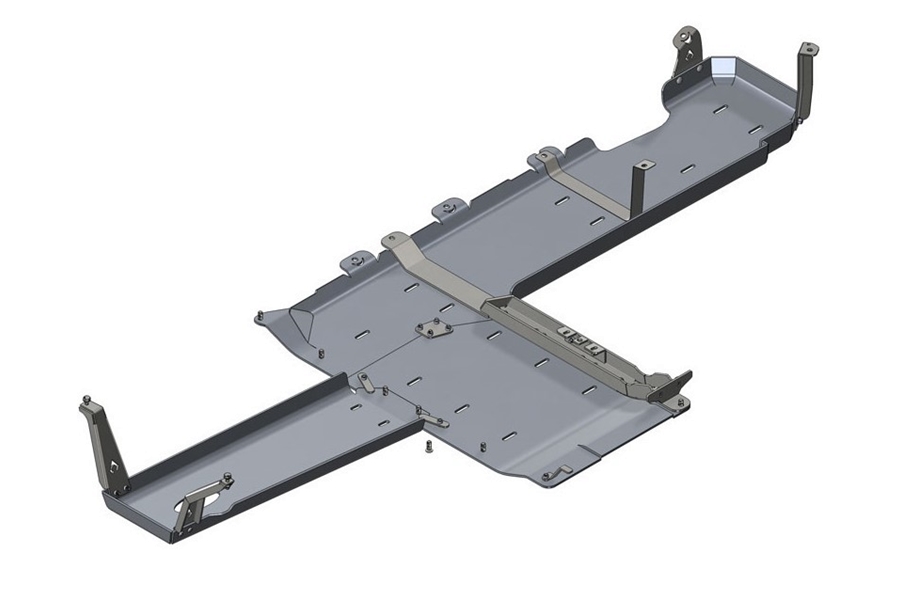

Artec Industries' NEW JL Bellypan is designed to give your 2018+ Jeep JLU Wrangler 2.0L Turbo full protection underneath the vehicle. Designed using CAD files directly from the manufacturer, this belly pan skid plate ensures that you have a great fit with factory components. Made from 1/4" thick 6061 Aluminum and 3/16" zinc plated Steel, and CNC cut and formed, the Artec JL Bellypan Kit offers both a strong and lightweight solution for your new Jeep JL.

  • Adds only 15 lbs to net weight of vehicle yet covers far more and is heavier duty than factory skids
  • 91 lbs total weight compared to the Steel version at 163 lbs...a 44% weight savings
  • Increases ground clearance of 3/4" from factory skids and even more compared to other aftermarket skid plates
  • 1/4" 6061 Aluminum for skid plates, 3/16" zinc plated steel brackets
  • Designed from factory CAD files for great and ultra precise fit.
  • CNC laser cut and CNC formed using custom rolled dies for high strength, unique look, and perfect contour fitment to OEM components.
  • All bolts under skid plate are countersunk for absolutely smooth bottom
  • All nuts are pressed into steel brackets for easy, one tool removal
  • Bolts directly to OEM T-case crossmember and frame using heavy duty flat head bolts that match OEM thread
  • No need for an aftermarket T-case crossmember for completely flat surface
  • Modular design lets you take off only one section for vehicle servicing
  • Protects Oil Pan, Transmission Pan, Gas Tank, Front Exhaust, Transfer Case, E-Torque Battery
  • OEM gas tank skid is replaced for reduced weight and 3/4" higher clearance*
  • Artec Gas tank skid can be removed without dropping entire tank thanks to new additional cross-member and tank strap.
  • Clearance near rear drive yoke shaft to prevent rubbing
  •

    *Note: Skid plate for 48 volt E-Torque battery system NOT INCLUDED. Click HERE for skid plate.

    Note: 1.5"+ LIFT RECOMMENDED FOR USE WITH BELLYPAN

    *OEM gas tank skid removal required. For easiest install, remove skid when tank is near empty. See instructions for simple ideas on removing OEM gas tank skid.

    Note: This product requires general mechanics skills and should only be installed by someone capable of using basic tools. Artec Industries is not responsible for incorrect installation.



    Product Video

    Specifications

    Brand: Artec Industries
    Color: Bare
    Finish: Raw Metal
    Install Method: Bolt On
    Location: Complete Under
    Material: Aluminum
    Material Thickness: 3/16in
    Mfgr. Warranty: No Warranty
    Condition: New Product
    Return Policy:
    Standard
