3-3.5in Lifts >Clayton 3.5in Premium Lift Kit - JK

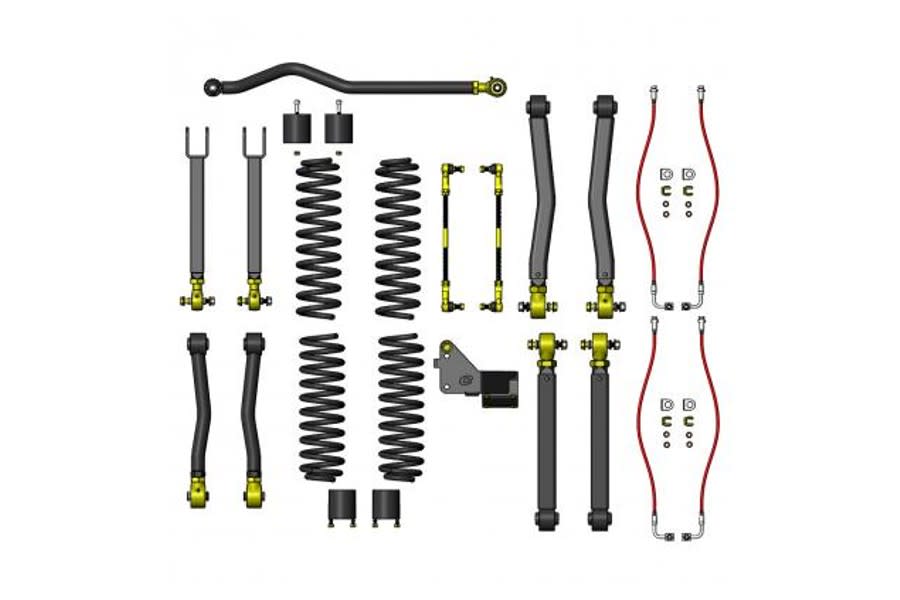

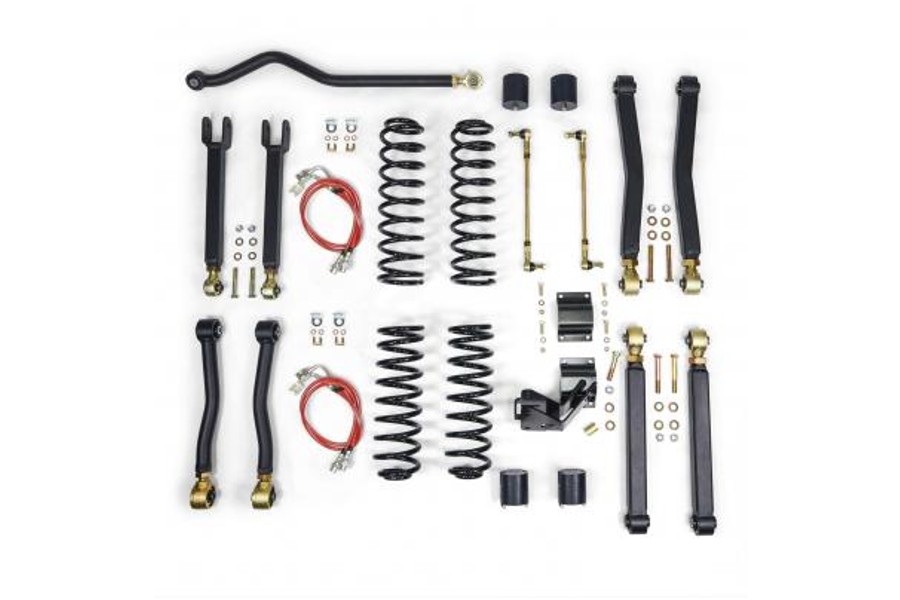

Clayton 3.5in Premium Lift Kit

JK

INCLUDED IN PRICE

Front Coil Springs $219.00

1 x Clayton Front Coil Springs - 3.5in/2.5in - JT/JL/JK
CLY1508350

In stock!
Rear Coil Springs $229.00

1 x Clayton Rear Coil Springs 3.5in - Black - JK
CLY1508351

In stock!
Front Track Bar $279.00

1 x Clayton Adjustable Front Track Bar Front - JK
CLY4508100

Only 2 left!
Front Lower Control Arms $489.00

1 x Clayton Short Front Lower Control Arms - JK
CLY1808100

Out of Stock. Average time to ship: 1-2 business days
Front Upper Control Arms $409.00

1 x Clayton Short Front Upper Control Arms
CLY1808101

Out of Stock. Average time to ship: 1-2 business days
Rear Lower Control Arms $469.00

1 x Clayton Short Rear Lower Control Arms - JL/JK
CLY1809102

Out of Stock. Average time to ship: 1-2 business days
Rear Upper Control Arms $439.00

1 x Clayton Short Rear Upper Control Arms - JL/JK
CLY1809103

Out of Stock. Average time to ship: 1-2 business days
Brake Lines $238.00

2x Clayton Brake Lines - JK
CLY1308101

Out of Stock. Average time to ship: 1-2 business days
Front Bump Stops $49.00

1 x Clayton Front Bump Stops 3in - JT/JL/JK/TJ/LJ
CLY1408100

In stock!
Rear Bump Stops $49.00

1 x Clayton Rear 3.5-4.5in Lift Bump stops - JK
CLY1408200

Only 3 left!
Rear Track Bar Relocation Bracket $129.00

1 x Clayton Rear Trackbar Bracket - JK
CLY4508200

Only 3 left!
Rear Sway Bar End Links $119.00

1 x Clayton Adjustable Rear Sway Bar End Links - JL/JK
CLY5109110

In stock!

$3,078.90

Bundle Savings: $38.10

Qualifies for
free shipping!

Set your vehicle to confirm fitment

You will earn Reward Points with this Purchase.

Write a Review | Q&A

Part # 2908030

Any Questions?
Chat with an expert!

ANY QUESTIONS?

Authorized
Dealer

Product Resources

Installation Instructions

Fitment Details

Features & Product Details

Clayton Off Road JK suspension lift systems are designed to give a smooth ride on and off-road while maintaining excellent handling characteristics. The 3.5” complete system lets you run a 35” tire. These are complete bolt-on systems and can be installed using basic shop tools. Our systems include eight adjustable control arms, which carry a lifetime, no questions asked warranty against bending or breaking.

The lower front and rear upper arms are dog-legged for tire clearance. All arms feature forged Johnny Joints or dual durometer, self-centering, maintenance-free FIIRO Joints. An adjustable front track bar and rear track bar relocation bracket are used with our systems.

An optional adjustable rear track bar is available for use with the rear track bar relocation bracket for fine-tuning the rear track or to allow pinion angle adjustments when using a CV-style drive shaft. Rear extended sway bar links, front and rear bump stops, front and rear extended brake lines, and 3.5” coil springs are supplied to complete our lift suspension systems.

NOTE:

1. Shocks are optional, and we recommend Fox or Bilstein.

2. On a 2 DR Model, a rear adjustable trackbar is required, CLY4508110.

3. Front CV Style Driveshaft is required.

4. On 2012-2016 models, an exhaust spacer is required.

Bolt-In Design

8 Fully Adjustable Control Arms

Premium Adjustable Trackbar

DOT Approved Stainless Steel Brakelines

Rear Adjustable Swaybar Links

Heavy Duty Reinforced Trackbar Bracket

Lifetime Warranty
