Currie Enterprises Low Pinion 60 Rubicon Rear Axle w/ 5.38 Gears and E-Lockers - JL Rubicon

Drivetrain
Axles
Complete Axle Sets >Currie Enterprises Low Pinion 60 Rubicon Rear Axle w/ 5.38 Gears and E-Lockers - JL Rubicon

Currie Enterprises Low Pinion 60 Rubicon Rear Axle w/ 5.38 Gears and E-Lockers

JL Rubicon

Write a Review | Q&A

Part # CE-LR6100E53

$6,162.50

msrp: $7,250.00

Quantity

Ships from Mfg. Available to ship: 7-14 business days

Qualifies for
free shipping!

Does not fit your
2022 Ford Bronco Sport Big Bend

You will earn Reward Points with this Purchase.

Authorized
Dealer

Product Resources

Fitment Details

Features & Product Details

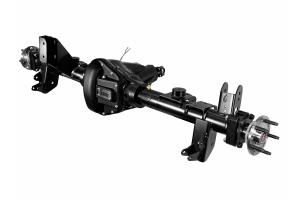

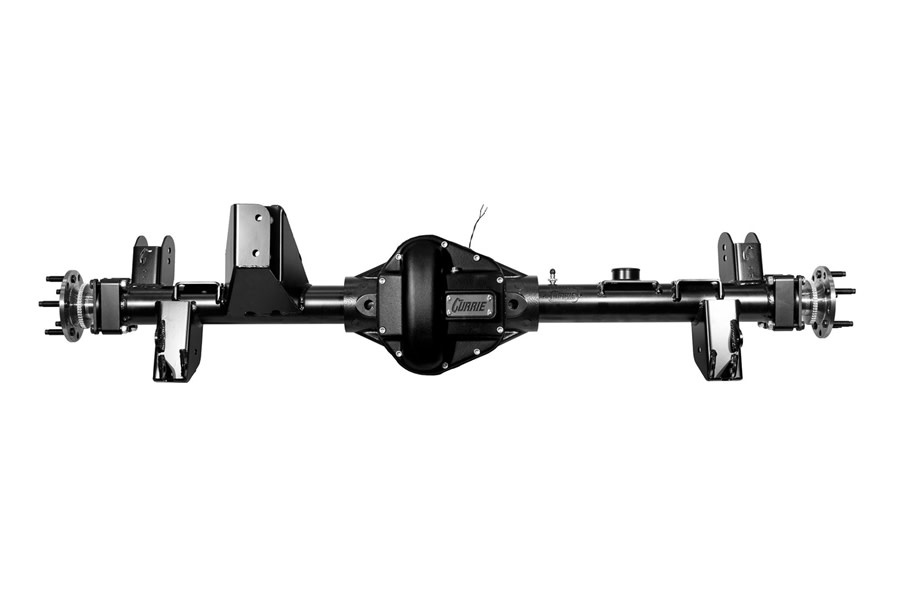

The Currie HD60 rear axle assembly for the 2018 and newer Jeep Wrangler JL is the perfect upgrade for off-road enthusiasts or overlanders seeking enhanced strength and durability. The HD60 rear features our massively reinforced 60-series center section, large 3.5-inch diameter axle tubes, and 40-spline axles that greatly upgrade strength and reliability beyond the stock Wrangle rear axle assembly. Additionally, the HD60 retains the powerful factory rear brakes and the factory wheel bolt pattern so that you can keep those nice wheels.

Features

68 in. JL Rubicon Width (+1.5 in. Over Non-Rubicon Models)

Heavy-Duty 60-Series Low-Pinion Center Section Features Thicker Walls and Webbing for Unmatched Strength

3.5 x .375-inch DOM Axle Tubes Deliver Industry-Leading Strength

40-Spline Chromoly Axles are More than 2x the Strength of Stock Axles, and 1.5x Stronger than the Competition's 35-Spline Axles

Currie Heavy-Gauge OE Fitment Brackets

Choice of Selectable Locker and Gear Ratio

Currie Rock-Proof Nodular Iron Differential Cover

Upgraded 1350 Pinion Yoke

Satin Black Powder Coat for Long Lasting Protection

Retains Stock 5x5 Wheel Bolt Pattern

Retains the Vehicles Factory Rear Brake Components

Specifications

Center Section - Currie LP60 nodular Iron low-pinion center section

Gear Set - Standard Dana 60 low-pinion

Pinion Yoke - 1350 u-joint

Differential Cover - Currie nodular-iron cover with gasketed fill plug with dipstick, Red

Axle Tubes - 3.5 in. diameter x .375 in. wall DOM tube

Axle Bearings - Set 80 tapered roller bearing

Axles - Currie Performance semi-floating, 40-spline (1.7” diameter) axles with tone rings for ABS/ESP retention

Brake Rotors - Not included, reuses the stock JL Sport/Sahara or Rubicon rear rotors

Brake Calipers - Not included, reuses the stock JL Sport/Sahara or Rubicon calipers

Suspension Brackets - Heavy gauge 3/16” steel mounting brackets

Geometry - Optimized for stock height up to 4” of lift

Width - 68-inches between wheel mounting surfaces (stock JL Rubicon width)

Wheel Bolt Pattern - 5 on 5 inch with 14 MM studs (standard Wrangler JL pattern)

Oil Capacity - 3.0 quarts of 75W-140 synthetic gear oil (API GL-5 Rated)

Finish - Black satin powder coat

Notes

ABS Sensors - The stock axle must be retained and installed on the Currie housing

Driveshaft - A replacement driveshaft compatible with the larger 60 housing and 1350 yoke is required. Spicer PN 10097842 is recommended (verify manufacturer vehicle fitment)

Brake Components - Retains the stock rear disk brake rotors or calipers; mounting brackets are designed to reuse the stock rotors and calipers from the vehicle

Wheel and Tire Size - 17-inch or larger wheels are required for proper clearance of the brake calipers. The maximum recommended tire size is 39-inches for semi-floating axles

Overall Width - Axle width is 68-inches (JL Rubicon stock) between wheel mounting surfaces
