Drag Links >RockJock Currectlync Steering System (JK Front Axle) - TJ/LJ/XJ/MJ/ZJ

RockJock Currectlync Steering System (JK Front Axle)

TJ/LJ/XJ/MJ/ZJ

Write a Review | Q&A

Part # RJ-420000-101

$915.00

2745 entries1830 entries - 2025 Northridge4x4 Jeep Giveaway

Quantity

Product will ship from manufacturer, average time to ship: 1-2 business days

Qualifies for
free shipping!

Does not fit your
2001 Jeep Cherokee XJ SE

2025 NORTHRIDGE4X4 JEEP® GIVEAWAY
Earn 2x Entries With This Purchase!

You will earn Reward Points with this Purchase.

Authorized
Dealer

Product Resources

Fitment Details

Features & Product Details

Installing a JK front axle in your TJ, LJ, XJ, MJ or ZJ? The axle swap can be tricky, but it’s doable. But what do you do for steering? Here is your solution!

RockJock's completely bolt-on Currectlync Steering System features an alloy steel 42mm (1.65 in.) diameter tie rod, 1.3 in. diameter solid forged steel drag link, larger forged, greaseable tie rod ends, premium jam nuts & adjuster and it's painted black, so it's ready for install right out of the box!
Additionally, you’ll need a modified pitman arm to hook this all up. This kit includes a brand-new TJ style pitman arm with the proper taper for the new steering system.

Both the tie rod and drag link feature double adjusters so that they do not require removal from the vehicle for adjustment once installed. This unit is designed for use on stock height or lifted vehicles, but for those with big tires, these components are also compatible with ram assist steering.
Components are completely bolt-on and kit includes our U-bolt style steering stabilizer shock mounting bracket to allow you to remount a steering stabilizer shock to the new tie rod tube.

Kit Fits:

Jeep Wrangler TJ - All Models (with stock front differential)

Jeep Wrangler TJ Unlimited (LJ) - All Models (with stock front differential)

Jeep Cherokee XJ - All Models (with stock front differential)

Jeep Comanche MJ - All Models (with stock front differential)

Jeep Grand Cherokee ZJ - All Models (with stock front differential)

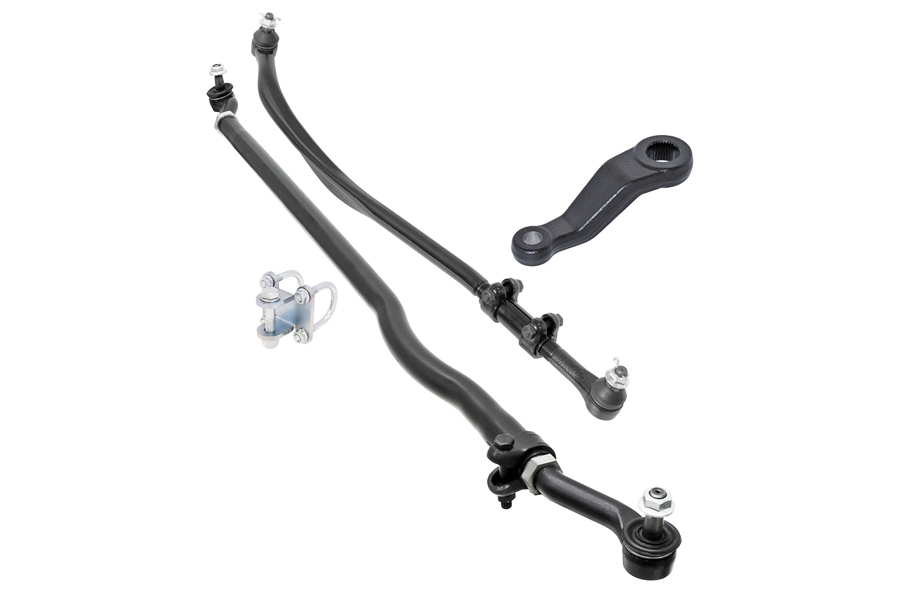

Kit Includes:

(1) Tie Rod Assembly

(1) Drag Link Assembly

(1) Steering Stabilizer Shock Bracket Kit

(1) Pitman Arm

Fitment Specs.:

For use on factory Jeep JK Dana 30 and Dana 44 differentials.

All 4 rod end tapers are designed to fit stock JK taper for ease of installation (the provided pitman arm has been retapered to JK taper).

Being that this is a completely custom application and a custom build vehicle, you’ll want to cycle your suspension before use to check for clearance and travel issues.

You may have to add bump stop in your application to prevent the components from contacting anything on up travel.

Your down travel stop may have to be adjusted to prevent the rod ends from being your down travel stop!

This is a completely custom installation! RockJock assumes NO liability for any damage to these components due to improper set up! If you have set up questions or concerns – please call!

Component Specs.:

Tie Rod = 42mm (1.650 in.) dia. alloy steel tube with indexed ends for superior strength

Tie Rod Ends = 1 1/8 in.-18 RH/LH threads, forged steel

Drag Link = 1.300 in. dia. solid forged steel

Drag Link Ends = 1 1/8 in.-18 RH/LH threads, forged steel

Steering Stabilizer Shock Bracket Plate = 1/4 in. laser cut steel

Pitman Arm = forged steel, TJ steering box spline on one end, JK taper on the opposite end

Notes:

Intended for use with 0 in.–4 in. of lift out of the box.

In vehicles with no lift, or smaller lifts, the tips of the drag link ends may require slight trimming to prevent them from touching each other inside the adjuster sleeve.

You must grease all rod ends via their zerk fittings before use.

Grease unit with non-synthetic, hi-moly lube grease.

The Steering Stabilizer Bracket Kit that is included may be used with the stock stabilizer shock, an upgraded Rancho RS5000 stabilizer shock and likely many other aftermarket shocks.
