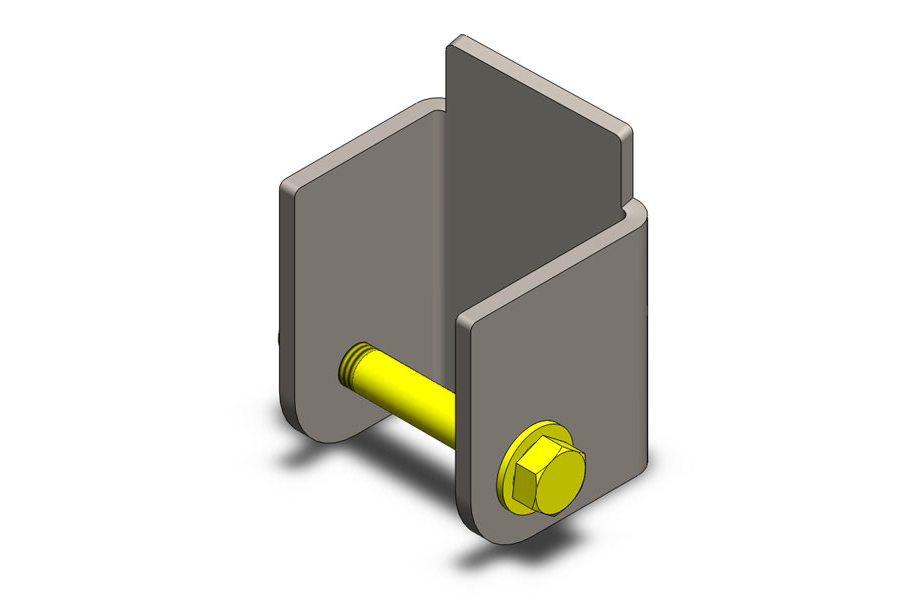

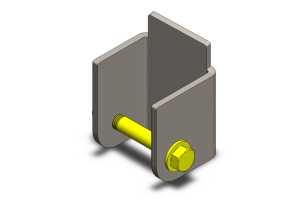

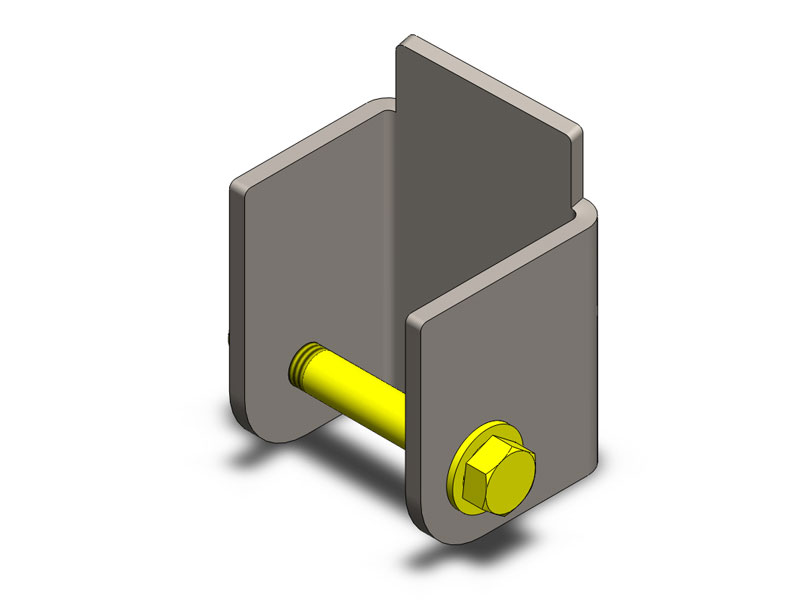

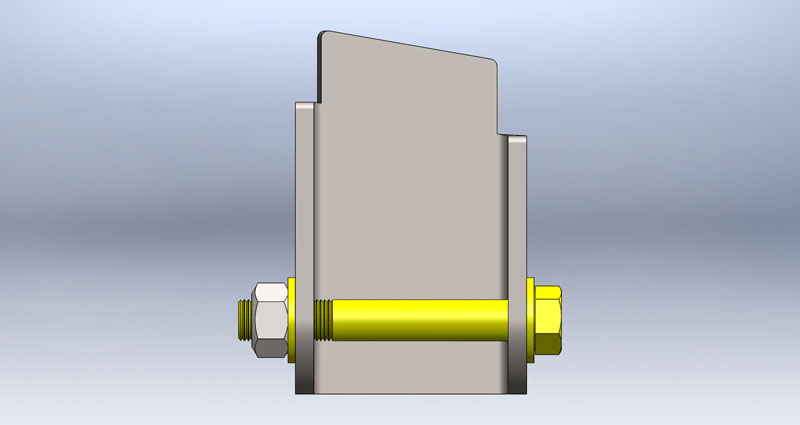

Clayton Double Sheer Track Bar Bracket

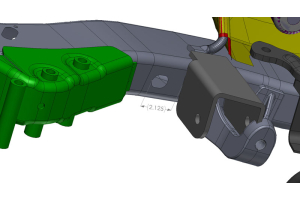

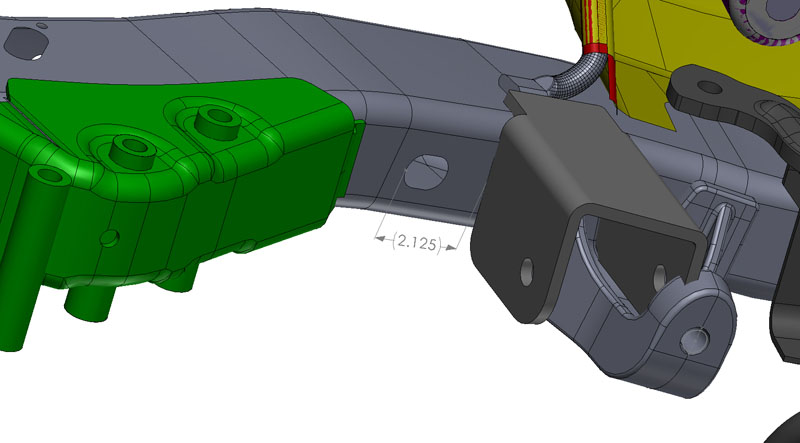

When your upgrading to a D44, D60, 9in or other aftermarket axle and will be using a hi steer application, this is the trackbar bracket you will want. This 1/4 bracket uses a 9/16s through hole, and a 2 5/8s inside diamter, intended for a 2.5in forged johnny joint. You will need to completely remove the OE cast trackbar mount and grind the frame clean. This bracket is designed to be used in the same location, but in a double sheer application, while also gaining room so you are less likely to have clearance issues between your larger housing and trackbar or trackbar mount.
