Clayton Custom Front Adjustable Track Bar w/Forged JJ 1.6 Width Lower

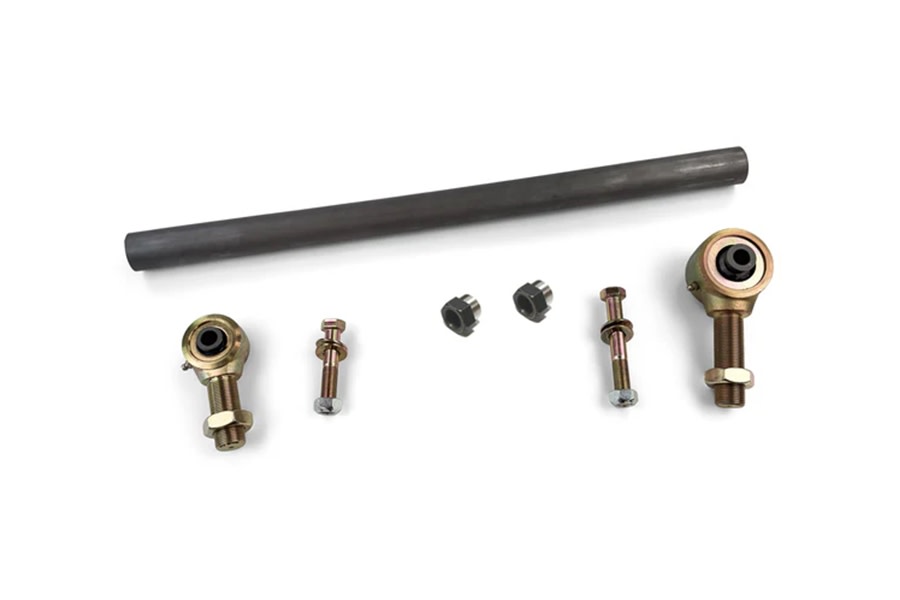

Clayton Off Roads custom builder trackbar is unfinished so you can make the final cut, weld in the tube insert, and then fine-tune your custom trackbar with the johnny joints. Designed to be used with our new high steer system, using 1/4 brackets at both ends. The axle end is a forged johnny joint with a 1.6" width and 9/16s thru bolt. Frame side is a 2.5" forged johnny joint with a 2 5/8s width and 9/16s thru bolt. Tubing is 1.5", .156 wall DOM tubing.

With 24" tube Center to Center Min = 29-13/16", Max = 31-11/16"
