PPE HD Aluminum Transmission Pan - Black

Excessive heat kills transmission life. As temperature rises, transmission fluid viscosity decreases, weakening the lubricating film that protects gears and bearings. This could cause premature wear and potential failure.

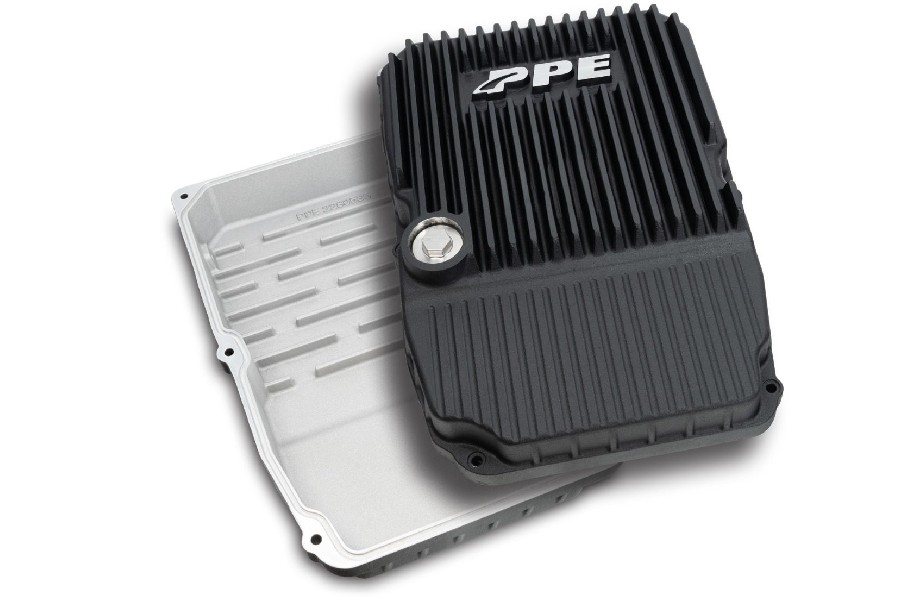

Cast from high-grade A356.0-T6 aluminum alloy, the PPE transmission pan offers 3/4 quart of additional fluid capacity, ensuring long-lasting heat management and performance.

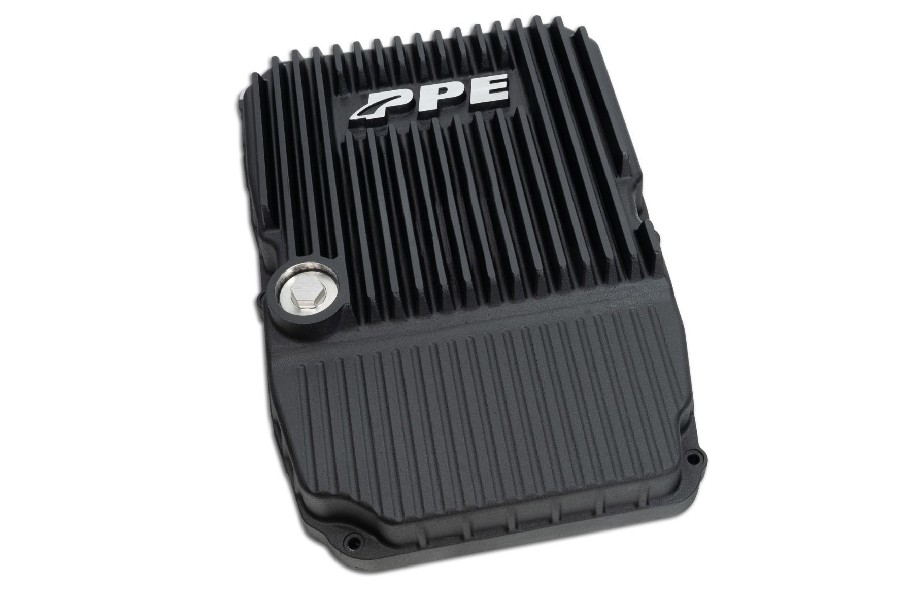

The deep external cooling fins maximize the heat-wicking surface area, effectively dissipating heat to keep your transmission cool under pressure. These fins also add strength to the bottom of the pan and enhance impact resistance.

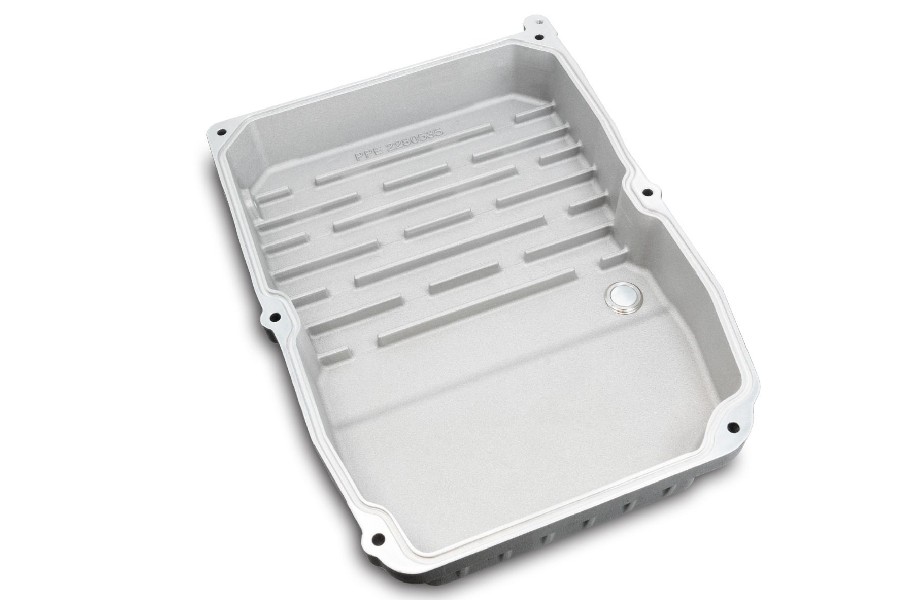

The built-in baffles at the bottom of the pan increase contact between the fluid and the cast-aluminum surfaces, enhancing heat transfer. These baffles also reduce fluid sloshing, ensuring consistent fluid pickup and stable transmission performance. Together with the longitudinal external fins, they form a stiff, cross-bracing structure, distributing loads better and increasing impact resistance.

The drain plug is equipped with a powerful, high-temperature-rated neodymium magnet that captures ferrous metal particles, providing additional protection for your transmission.

Keep your 5-speed transmission running longer, healthier, and cooler with PPE. Replacement transmission filter available (228058500).

Features

Note: Requires the use of an exhaust spacer kit or aftermarket Y-pipe in 12-18 Jeep Wrangler JK applications for extra exhaust pipe clearance.
