RockJock Rear Track Bar Relocation Bracket - TJ/LJ

Suspension
Mounts & Brackets
Track Bar Brackets >RockJock Rear Track Bar Relocation Bracket - TJ/LJ

RockJock Rear Track Bar Relocation Bracket

Name: RockJock Rear Track Bar Relocation Bracket
Brand: RockJock
SKU: CE-9121N
Price: 131 USD
Availability: InStock

TJ/LJ

★★★★★

()
Write a Review | Q&A

Part # CE-9121N

$131.00

Quantity

Only 2 left!

Qualifies for
free shipping!

Set your vehicle to confirm fitment

You will earn Reward Points with this Purchase.

Authorized
Dealer

Product Resources

Installation Instructions

Fitment Details

Features & Product Details

The RockJock Johnny Joint Rear Trac Bar Relocation Bracket Kit for TJ Wrangler and Unlimited (LJ) vehicles installs onto any factory TJ or LJ Dana 35 or 44 rear differential housing. The extended height of this bracket, combined with it’s compound bends, allow it to place the Trac Bar mounting point back at the proper height to replicate factory geometry, even after your rear pinion angle has been raised dramatically. The upper bend in the bracket also keeps it away from the gas tank in your TJ so you don’t run into any interference issues.

Finish is semi-gloss black powder coat on the bracket and gold zinc plating on the hardware.

If you are currently in the market for an Adjustable Rear Trac Bar as well, see the CE-9123N Kit that includes this bracket as well as the CE-9120RS Johnny Joint Adjustable Trac Bar.

Additionally, see the RJ-510100-101 Rear Trac Bar Replacement Bolt Kit to finish off your install with all new hardware!

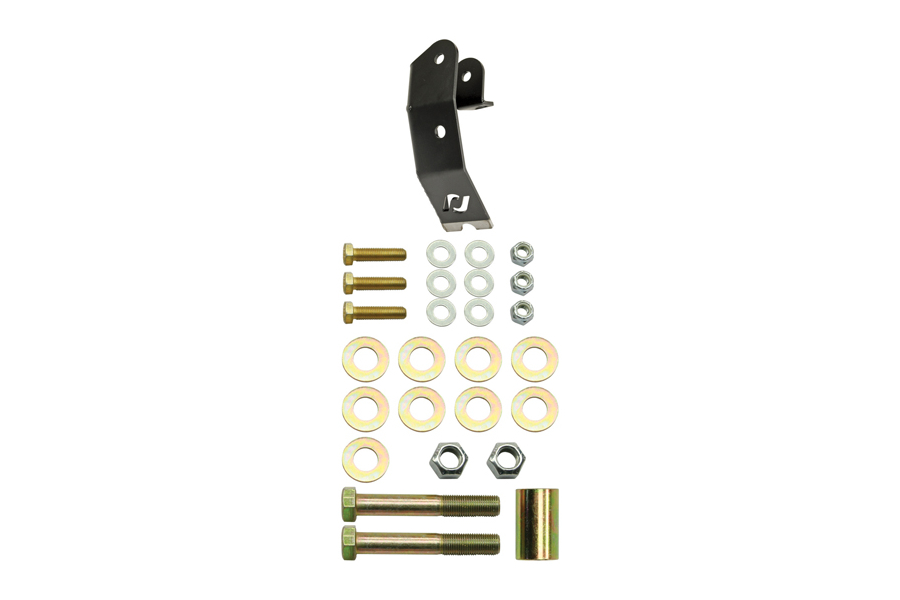

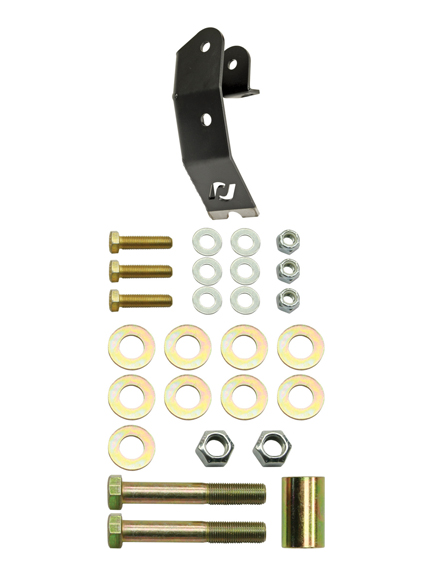

Kit Includes:

Rear Trac Bar Relocation Bracket

All necessary hardware

Fitment Specs.:

Intended to be used with 2 in.– 4 1/2 in. of lift

Intended to be used with a minimum of an additional 2 1/2 in. of bump stop over stock

Notes:

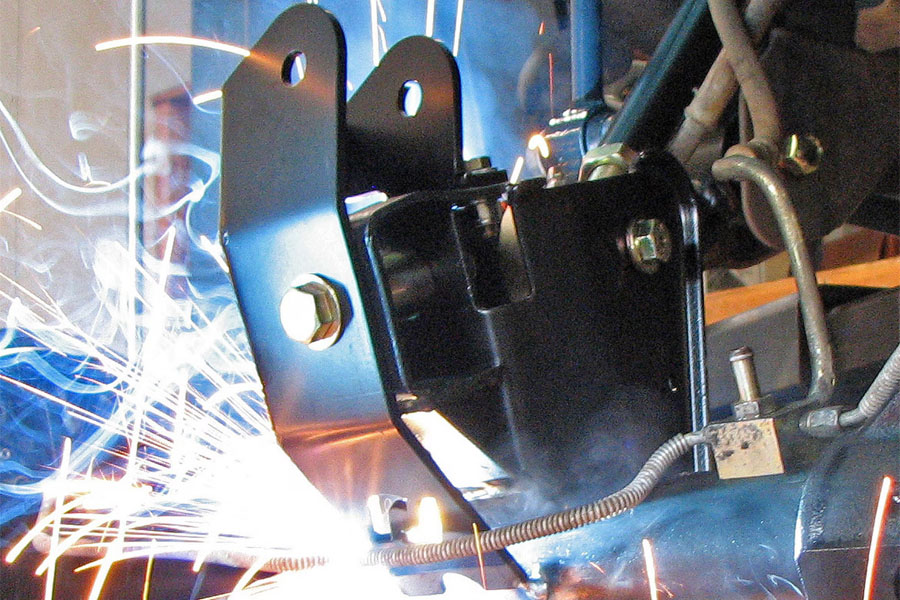

Welding required! The Rear Trac Bar Relocation Bracket has 2 tabs that anchor it to the axle housing that need to be welded (see instructions). If you do not have the facilities to do the welding, be advised that once the bracket is bolted on, it is secure enough that you may drive the vehicle to someone to do the welding for you.

Factory Trac Bar hardware may be used with this bracket, however, consider replacing your rusty old original rear Trac Bar hardware with the RJ-510100-101 replacement bolt kit.

Bracket is fabricated from laser cut and formed 3/16 in. steel.

**IMPORTANT**:

This bracket is intended for use in conjunction with a transfer case tail shaft slip yoke eliminator kit and a double cardan driveshaft.,

The tail shaft slip yoke eliminator kit we recommend is from Tom Wood’s Driveline and can be found here. They can also supply the double cardan driveshaft!

If you’ll be retaining your stock driveshaft, the CE-9120RS Johnny Joint rear trac bar becomes mandatory for a successful installation of this bracket.
