RockJock Johnny Joint Rear Track Bar w/ Geometry Correction Bracket Kit

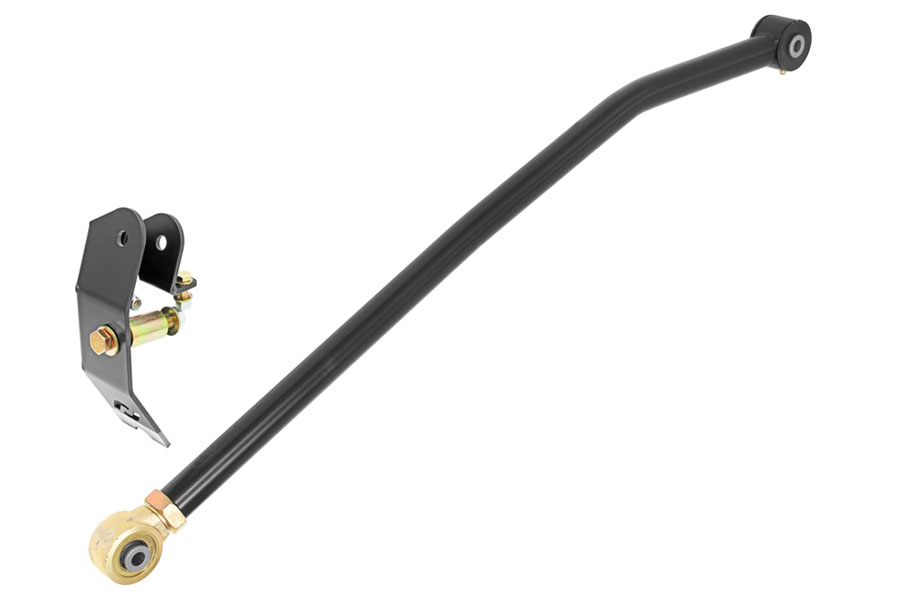

The RockJock Johnny Joint Adjustable Length Rear Trac Bar and Trac Bar Relocation Bracket Kit for TJ Wranglers and Unlimited (LJ) vehicles provide you with everything you need to properly and easily address your rear Trac Bar on a lifted vehicle.

The Trac Bar included in this kit features narrow body Johnny Joint rod end at the chassis end of the bar and a narrow, forged, adjustable Johnny Joint at the axle end. Johnny Joints provide maximum articulation in extreme off-road situations. The 1 1/4 in. x .250 in. wall 4130 chromoly bar incorporates precise bends in the interest of providing maximum clearance between large differentials and the bar itself. Bar is fully greasable via zerk fittings. Finish is semi-gloss black powder coat on the bar and gold zinc plating on the Johnny Joint adjuster end.

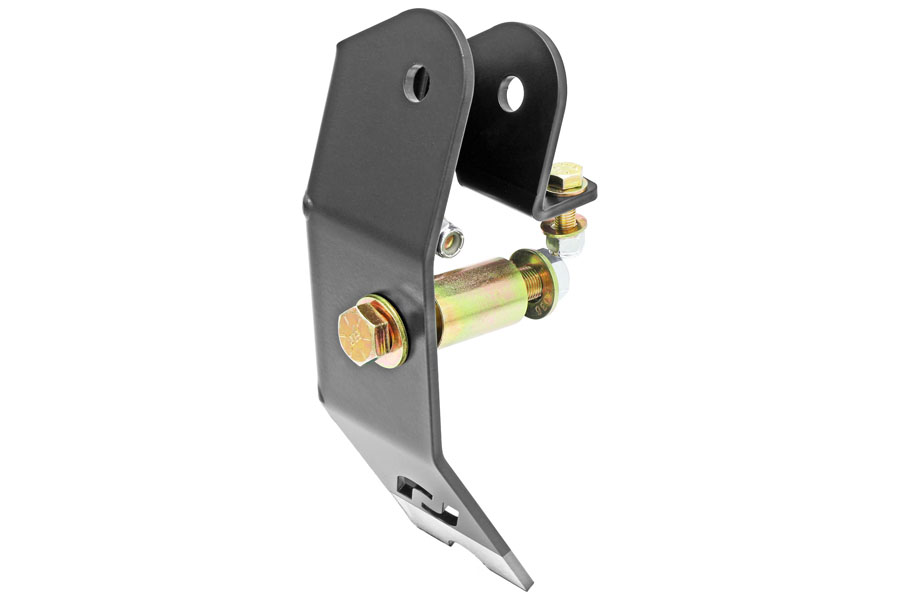

RockJock's Trac Bar Relocation Bracket installs onto any factory TJ or LJ Dana 35 or 44 rear differential housing. The extended height of this bracket, combined with it’s compound bends, allow it to place the Trac Bar mounting point back at the proper height to replicate factory geometry, even after your rear pinion angle has been raised dramatically. The upper bend in the bracket also keeps it away from the gas tank in your TJ so you don’t run into any interference issues. Finish is semi-gloss black powder coat on the bracket and gold zinc plating on the hardware.

Additionally, see RJ-510100-101 Rear Trac Bar Replacement Bolt Kit to finish off your install of these new parts with all new hardware!

Kit Includes:

Trac Bar Adjustment Range:

Fitment Specs.:

Notes:
