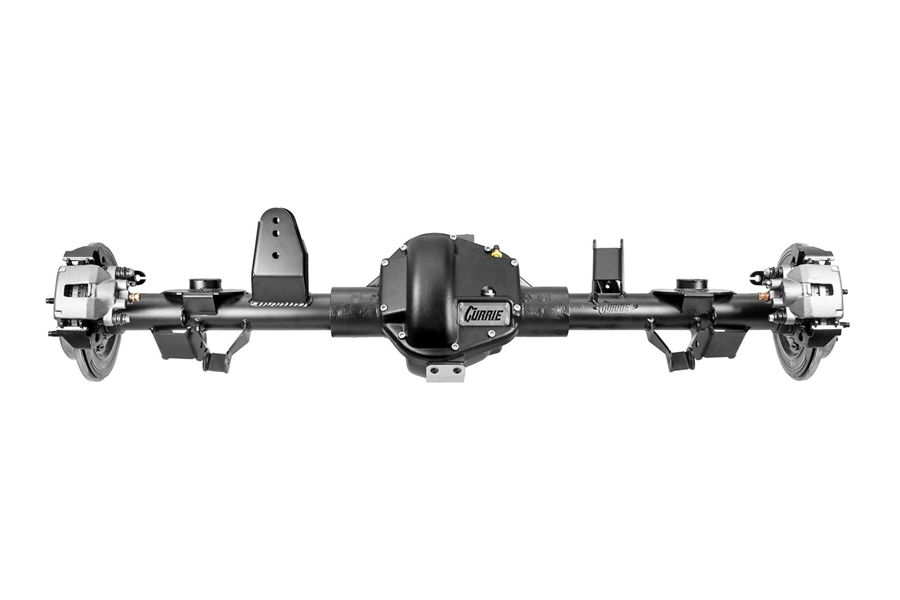

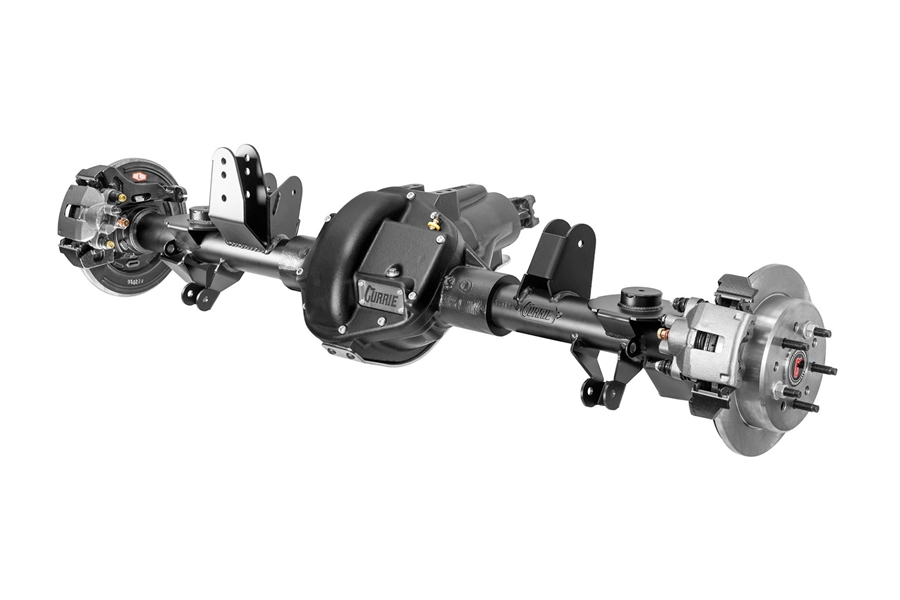

Currie Enterprises High Pinion 60 Rear Axle w/ Disc Brakes (Stock Width) – 4.88 Truetrac - TJ/LJ
Currie Enterprises High Pinion 60 Rear Axle w/ Disc Brakes (Stock Width) – 4.88 Truetrac - TJ/LJ

Currie Enterprises High Pinion 60 Rear Axle w/ Disc Brakes (Stock Width) – 4.88 Truetrac

TJ/LJ

Write a Review | Q&A
Part # CE-JR6304T48We price match! Call 866-601-5340!
$5,300.00
+$ Oversize Shipping Surcharge
NEW

Out of Stock. Average time to ship: 60 business days
You will earn Reward Points with this Purchase.
ANY QUESTIONS?

Product Resources

Features & Product Details

The Currie 60 high-pinion performance axle for the Jeep Wrangler TJ, is a complete bolt-in axle assembly with all required brackets and mounts in place. The vehicle's factory driveshaft will require modification or replacement to accommodate the larger 60 series housing and 1350 series u-joint.



  • The Currie high-pinion, high-clearance center section with rotated cover delivers unmatched ground clearance, and improved obstacle slide-over by presenting a smooth curve, rather than the sharp edge found on other 60 housings.
  • Rock Slider - Integrated AR400 hardened steel skid plate resists deformation and gouging to slide over obstacles far better than iron housings or mild steel plates.
  • Large diameter outer pinion bearing (right) is designed for the demands of reverse rotation/high pinion housings. Stock low pinion bearing (left).
  • High volume flow-thru recirculating oil system keeps pinion bearings bathed in cool oil, reducing operating temperatures and eliminating oil starvation issues.
  • Large 3 in. diameter x .5 in. wall axle tubes (left) are more than 2.5 times stronger than the stock Dana 30 tubes (right).
  • Explorer 11.250-inch disk brakes with internal parking brake provide increased stopping power over the stock TJ drum brakes.
  • Heavy-duty 3/16 inch brackets feature multiple mounting options for adjusting suspension geometry to accommodate a range of vehicle lifts.
  • Black satin powder coat finish adds long-lasting protection against rust and corrosion to keep your Currie 60 looking its best.
  •

    Details:

  • Complete Currie 60 High-Pinion Rear Axle
  • 3 in. Diameter x .5 in. Wall DOM Axle Tubes
  • Currie Performance 35-Spline Semi-Float Axles
  • 11 in. Explorer Disc Brakes with Internal Parking Brake
  • Stock 60.50 in. Width and 5 x 4.5 In. Wheel Bolt Pattern
  • Pinion Angle and Brackets Setup for Lifted Vehicles
  • Satin Black Powder Coat Finish for Long Lasting Protection
  •

    Notes:

    Sway Bar: The factory TJ/LJ rear sway bar must be flipped side to side (installed upside down) to be used with a high pinion Currie 60. However, due to its design, the factory sway bar will interfere/limit the housings downward travel at full droop.

    Specifications

    Brand: Currie Enterprises
    Axle Type: Dana 60
    Bolt Pattern: 5x4.5
    Brakes: 11.25in
    Ratio: 4.88
    Spline Count: 35
    Tubing Diameter: 3.0in
    Width: 60.5in
    Mfgr. Warranty: 2 Year Warranty
    Condition: New Product
    Return Policy:
    Standard
