Motobilt Aluminum 15 Gallon Fuel Cell Kit - Bare
LJ/TJ
Product Resources
Features & Product Details

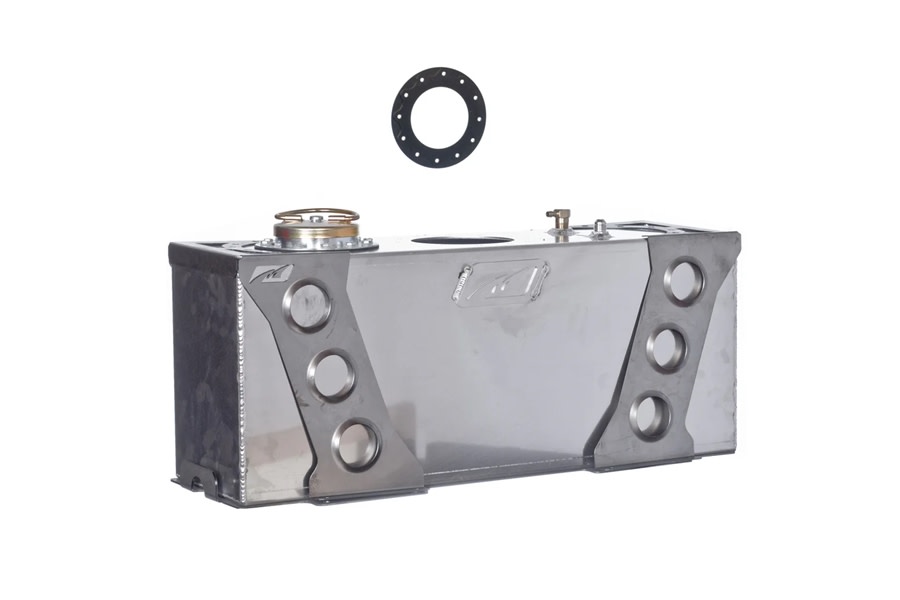

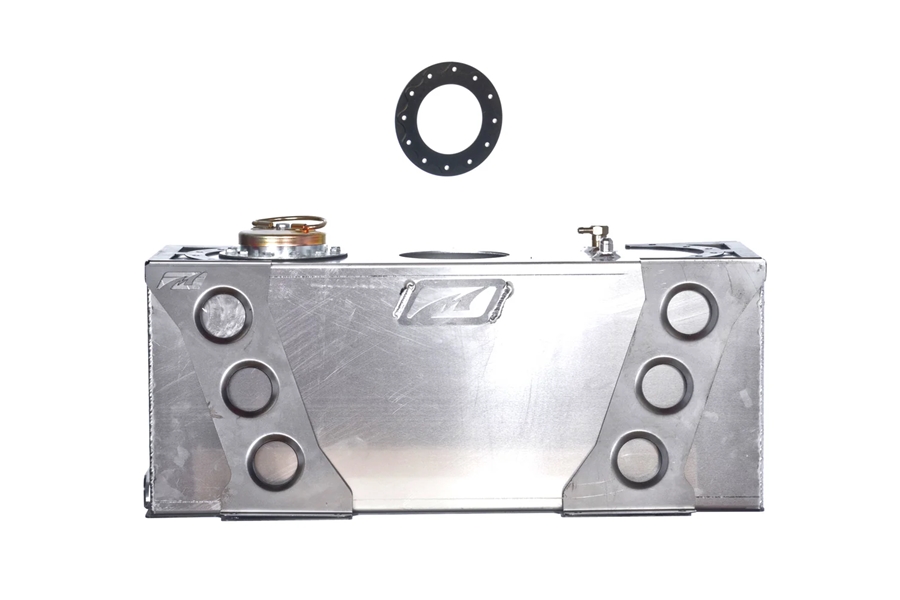

The Motobilt MB5005-TJ was designed to use the stock Jeep TJ, LJ, JK, or JKU fuel pump and was designed to fit in the back bed of your Jeep. (See Notes) It is 30 inches L x 12 inches H x 9 inches W and can fit behind your seat if you choose. The tank has a capacity of roughly 15 US gallons. The Motobilt fuel tank is CNC cut from 1/8 inch aluminum and formed on a press brake, is TIG welded for ultimate strength and includes a large D-ring style cap. This can be converted to remote fill by purchasing a different filler neck system that utilizes a 12 bolt, 5.38 bolt circle flange. The Motobilt MB3000 fuel cell mount and MB5007 fuel pump clamping ring are included.

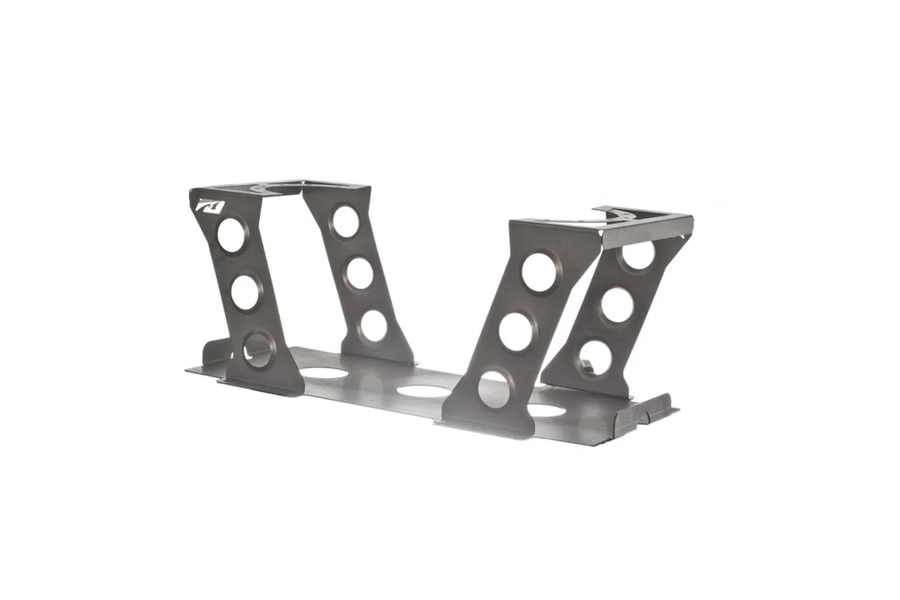

The mount consists of three parts: the main under-tank plate and two clamp bodies. The under tank plate is CNC Laser Cut from 1/8 inch high strength steel plate. You can weld your own mounting brackets to the bottom if needed or utilize the 8 bolt holes already in the mount. The 2 clamp-down bodies capture the top and all four sides of the tank and bolt securely to the mounting base. These parts are CNC Laser Cut but from 16 gauge steel. The parts are formed on a hydraulic press brake. This mount will ensure your fuel cell is mounted securely. The Motobilt tank features one fitting on top of the tank which has a rollover valve for a vent line. The MB5005-TJ Fuel Cell already has the provisions for the clamping ring CNC cut into the tank. This means the clamping ring and pump will bolt in with no cutting or drilling necessary! When installing the fuel cap assembly, we recommend using Permatex 80016 Form-A-Gasket number 2 Sealant to seal the contact surfaces. This is a sealant we have used in the shop numerous times over the years for sealing filler caps on fuel cells.
This fuel cell is used for applications where you are extending the wheelbase and the rear axle would contact the factory fuel tank. It would also be used in situations where more ground clearance is needed. This kit works perfectly with the Motobilt Jeep TJ Back Half kit or Motobilt Jeep LJ back half kit, where the frame rails are moved up and in for ultimate clearance. This can also be installed in the back of your Jeep JK/JKU for custom applications.
Specifications
Note:
FOR OFF-ROAD USE ONLY.
