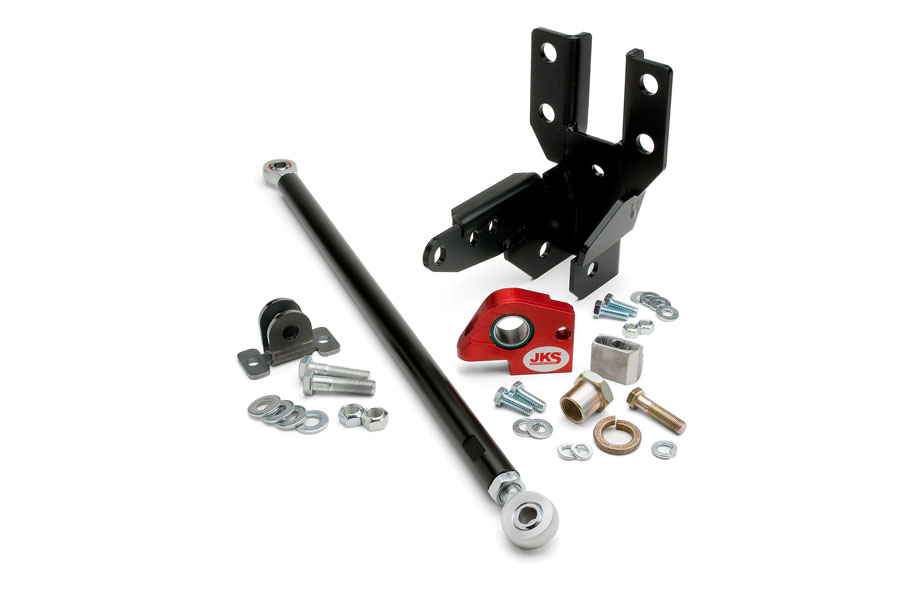

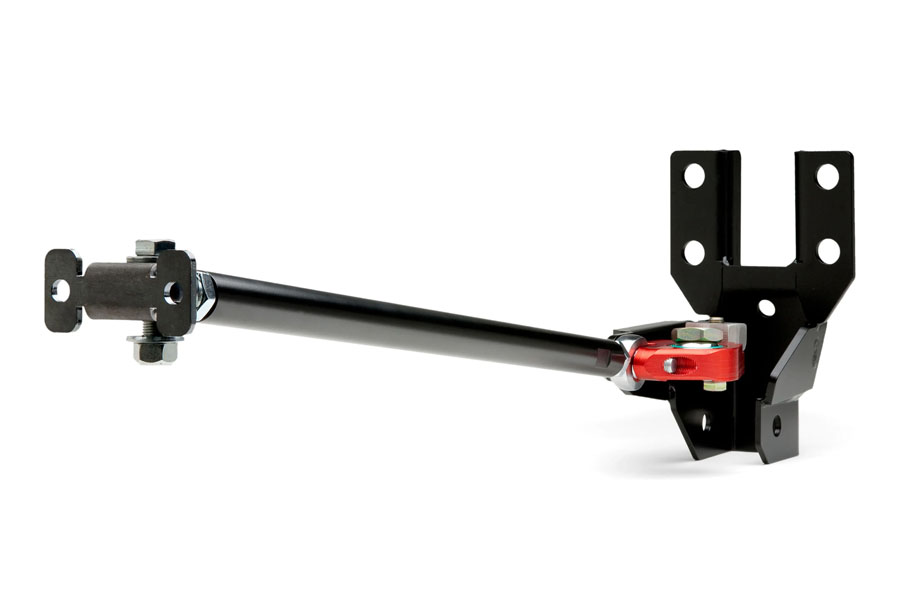

JKS Track Bar and Sector Shaft Reinforcement Kit Front - JK

MODEL # JKSOGS166
Manufacturer Part # OGS166

$356.25

MSRP: $375.00

24
hours
Only 3 left!
Qualifies for free shipping!


Share:

Specifications


Brand: JKS
Adjustable: No
Bracket Included: Yes
Color: Black
Finish: Powder Coat
Location: Front
Material: Steel
Minimum Lift Height Required: 2in+

Mfgr. Warranty: Limited Lifetime
Condition: New Product
Return Policy:
Standard

Description

If your vehicle has larger tires, along with hydraulic-assisted steering, then it is necessary to reinforce the track bar, as well as the steering box. Eventually the chassis flex will get the best out of either of those components, and one or the other will eventually give out.

The factory track bar mount on the chassis is particularly vulnerable to extreme forces. If you crank on the steering wheel hard enough, you will tear the OE mount completely off of the frame. On the steering box, the internal bearings that support the output shaft are poorly positioned, and since the OE steering box is not serviceable, the only option is to replace the entire assembly.

How will the JKS Sector Shaft Reinforcement Kit further benefit your vehicle?

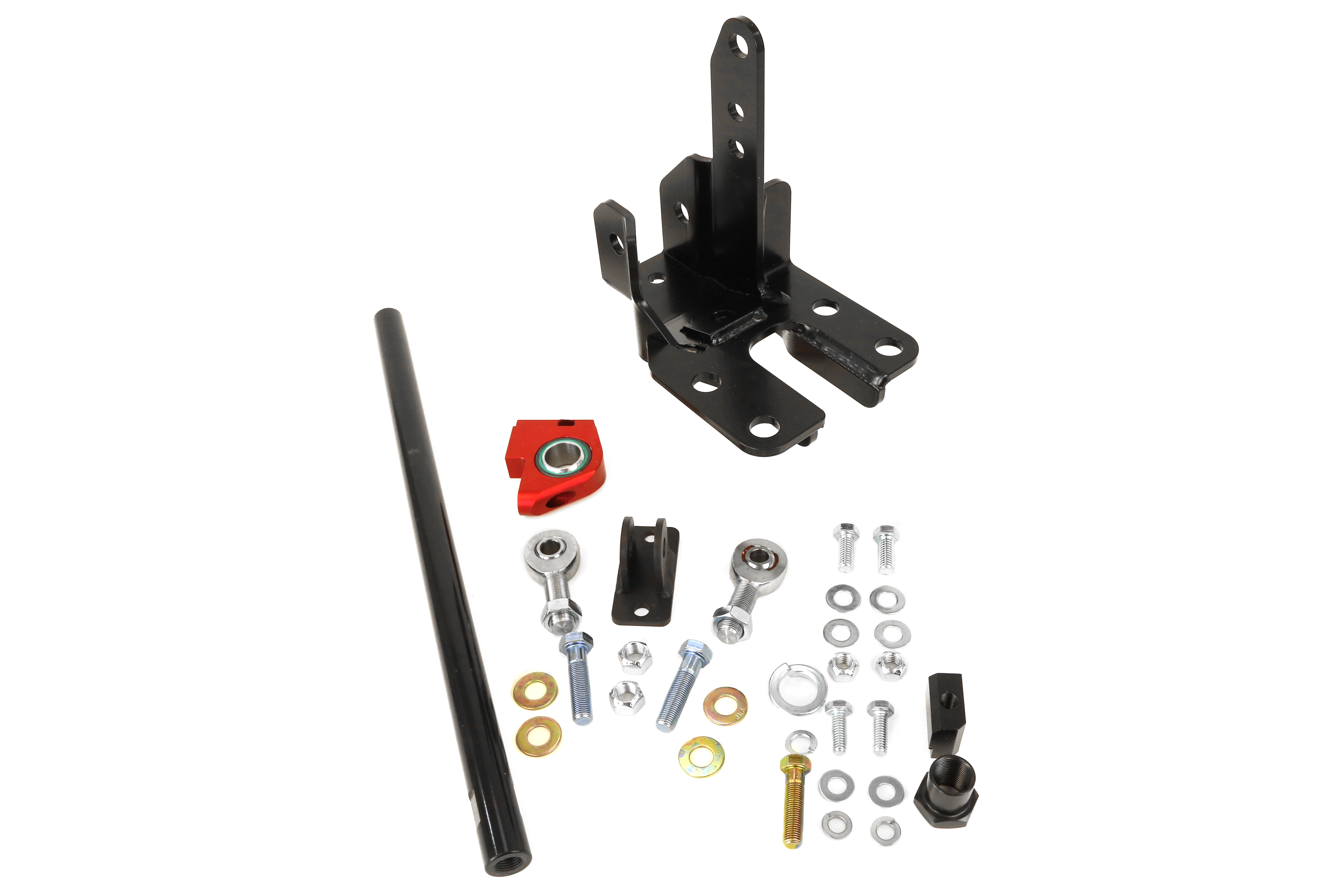

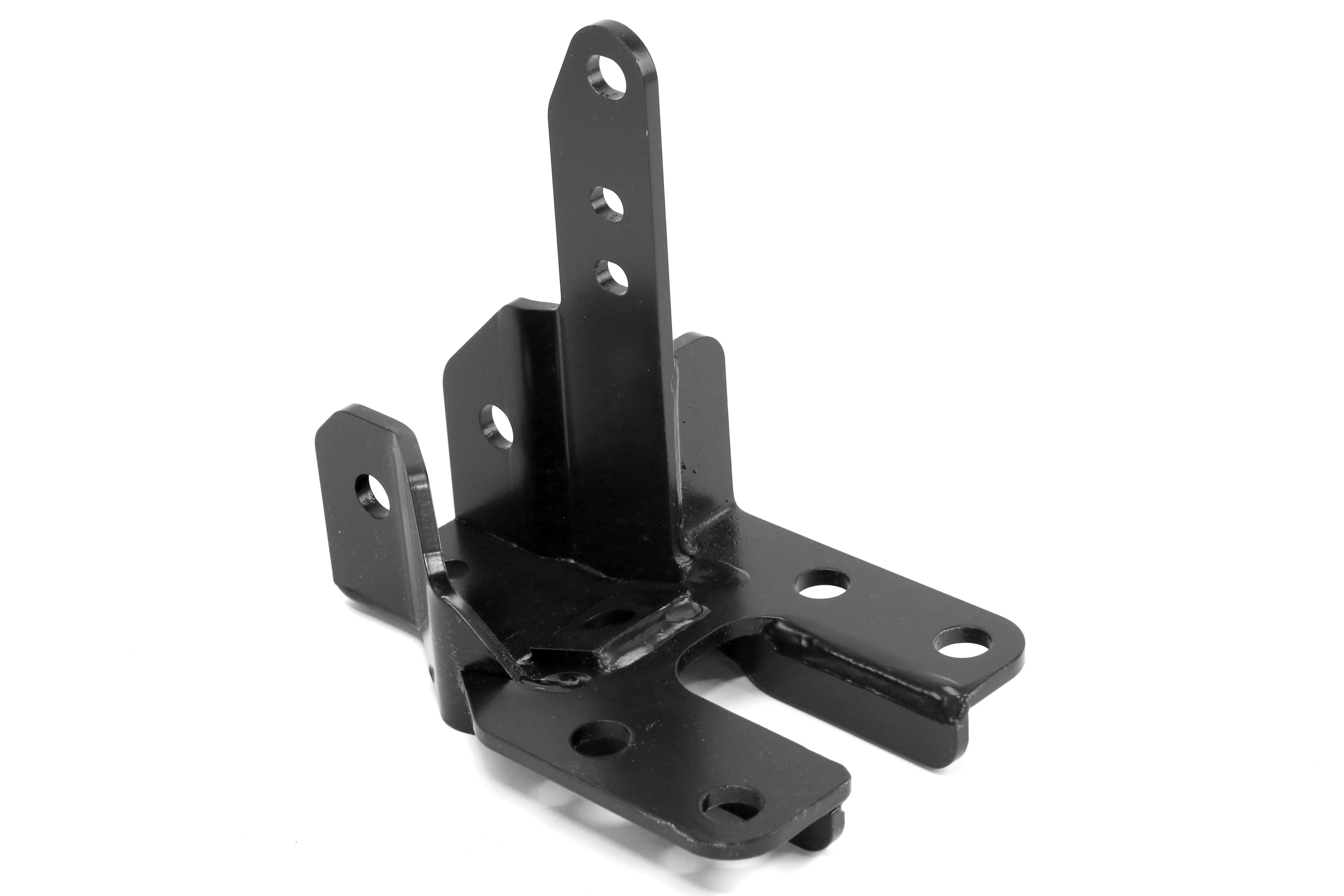

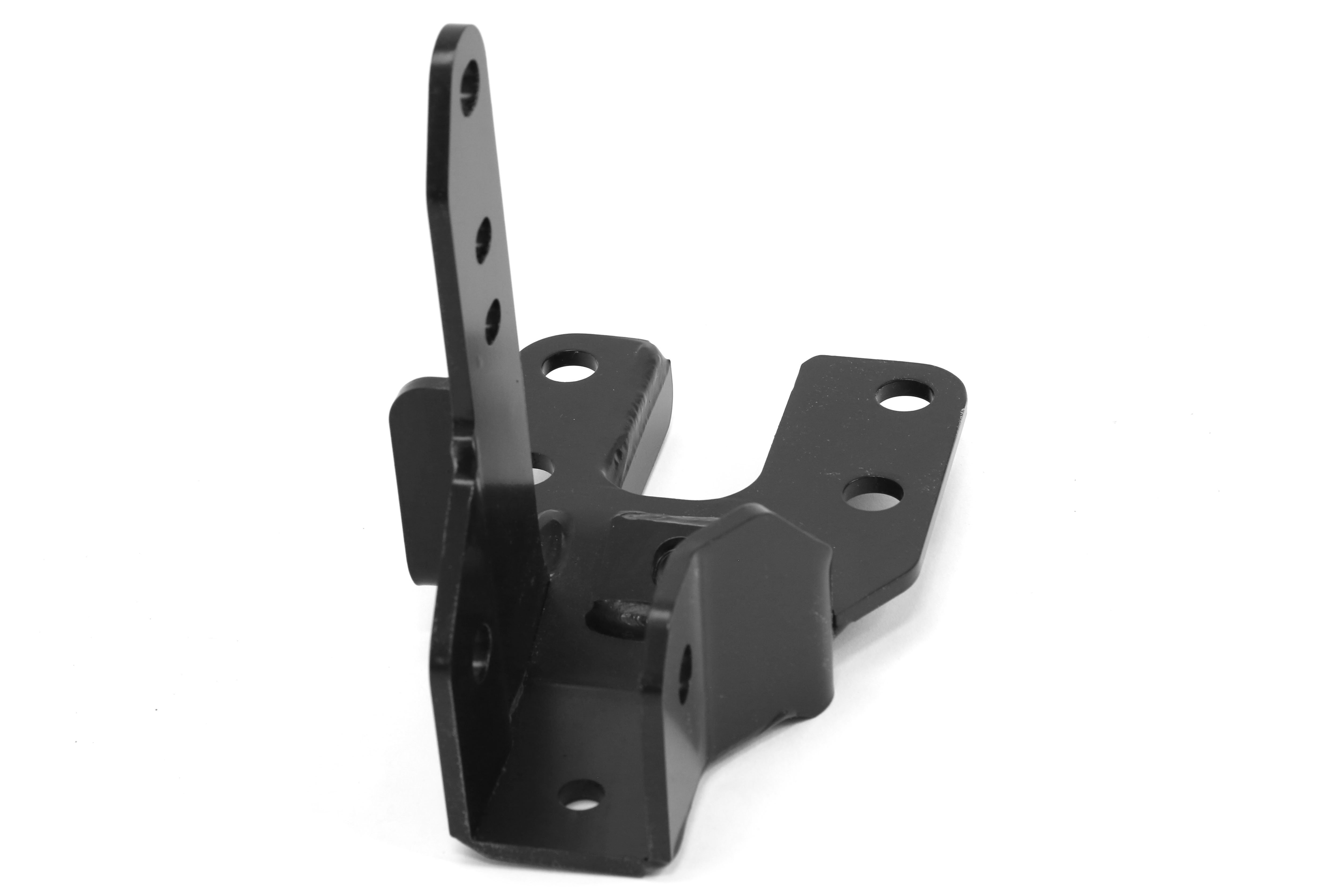

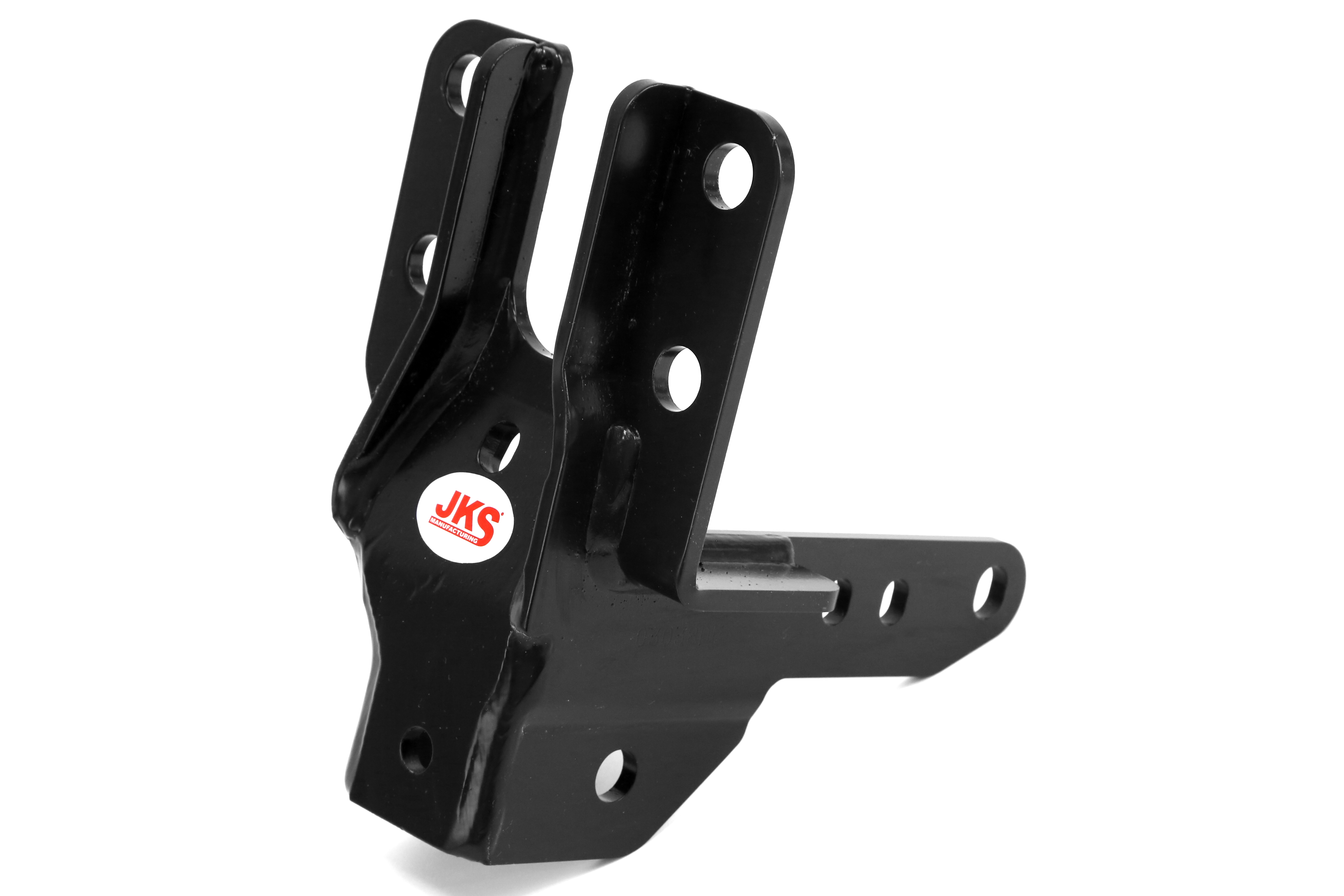

•    Heavy-duty reinforcement bracket will strengthen and support the OE track bar mount on chassis.
•    Dramatically increases track bar load capacity to accommodate large tires, and hydraulic steering.
•    Prevents damage and deformation of the weak factory track bar bracket.
•    Evenly distributes track bar forces to both chassis rails.

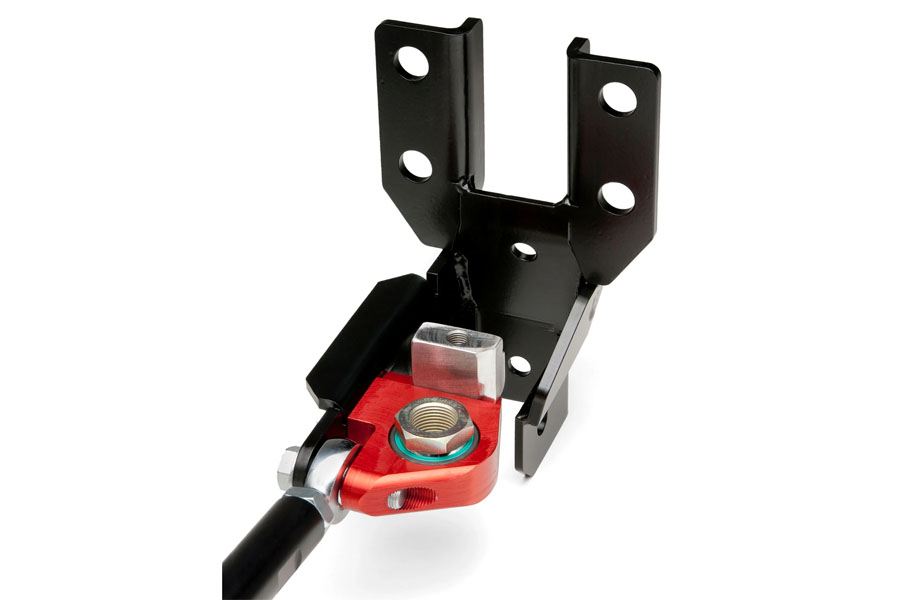

•    Heavy-duty bearing fixture stabilizes and supports steering box output shaft to prevent the leading cause of premature failure.
•    External bearing supports sector shaft below pitman arm converting factory steering box from single-shear to double-shear.
•    The double shear design will eliminate side loading of sector shaft to prevent wobble and premature wear of internal bearings.
•    Reinforced sector shaft dramatically improves steering responsiveness for greater control, handling, and driver confidence.

Please note that installation requires welding, so please have a trusted professional welder, or fabrication specialist sourced out for the installation, Requires OE type steering box, and this kit is not compatible with frame-mounted track bar drop brackets.

This product has no user uploaded media. You can upload your photo or video of your install by posting a review.

No questions have been asked about this product.
Jeep Wrangler JK
Rubicon
2007 Jeep Wrangler JK Rubicon
2008 Jeep Wrangler JK Rubicon
2009 Jeep Wrangler JK Rubicon
2010 Jeep Wrangler JK Rubicon
2011 Jeep Wrangler JK Rubicon
2012 Jeep Wrangler JK Rubicon
2013 Jeep Wrangler JK Rubicon
2014 Jeep Wrangler JK Rubicon
2015 Jeep Wrangler JK Rubicon
2016 Jeep Wrangler JK Rubicon
2017 Jeep Wrangler JK Rubicon
Sahara
2007 Jeep Wrangler JK Sahara
2008 Jeep Wrangler JK Sahara
2009 Jeep Wrangler JK Sahara
2010 Jeep Wrangler JK Sahara
2011 Jeep Wrangler JK Sahara
2012 Jeep Wrangler JK Sahara
2013 Jeep Wrangler JK Sahara
2014 Jeep Wrangler JK Sahara
2015 Jeep Wrangler JK Sahara
2016 Jeep Wrangler JK Sahara
2017 Jeep Wrangler JK Sahara
Unlimited Rubicon
2007 Jeep Wrangler JK Unlimited Rubicon
2008 Jeep Wrangler JK Unlimited Rubicon
2009 Jeep Wrangler JK Unlimited Rubicon
2010 Jeep Wrangler JK Unlimited Rubicon
2011 Jeep Wrangler JK Unlimited Rubicon
2012 Jeep Wrangler JK Unlimited Rubicon
2013 Jeep Wrangler JK Unlimited Rubicon
2014 Jeep Wrangler JK Unlimited Rubicon
2015 Jeep Wrangler JK Unlimited Rubicon
2016 Jeep Wrangler JK Unlimited Rubicon
2017 Jeep Wrangler JK Unlimited Rubicon
Unlimited Sahara
2007 Jeep Wrangler JK Unlimited Sahara
2008 Jeep Wrangler JK Unlimited Sahara
2009 Jeep Wrangler JK Unlimited Sahara
2010 Jeep Wrangler JK Unlimited Sahara
2011 Jeep Wrangler JK Unlimited Sahara
2012 Jeep Wrangler JK Unlimited Sahara
2013 Jeep Wrangler JK Unlimited Sahara
2014 Jeep Wrangler JK Unlimited Sahara
2015 Jeep Wrangler JK Unlimited Sahara
2016 Jeep Wrangler JK Unlimited Sahara
2017 Jeep Wrangler JK Unlimited Sahara
Unlimited X
2007 Jeep Wrangler JK Unlimited X
2008 Jeep Wrangler JK Unlimited X
2009 Jeep Wrangler JK Unlimited X
2010 Jeep Wrangler JK Unlimited X
2011 Jeep Wrangler JK Unlimited X
X
2007 Jeep Wrangler JK X
2008 Jeep Wrangler JK X
2009 Jeep Wrangler JK X
2010 Jeep Wrangler JK X
2011 Jeep Wrangler JK X
X-S
2009 Jeep Wrangler JK X-S
Sport
2010 Jeep Wrangler JK Sport
2011 Jeep Wrangler JK Sport
2012 Jeep Wrangler JK Sport
2013 Jeep Wrangler JK Sport
2014 Jeep Wrangler JK Sport
2015 Jeep Wrangler JK Sport
2016 Jeep Wrangler JK Sport
2017 Jeep Wrangler JK Sport
Unlimited Sport
2010 Jeep Wrangler JK Unlimited Sport
2011 Jeep Wrangler JK Unlimited Sport
2012 Jeep Wrangler JK Unlimited Sport
2013 Jeep Wrangler JK Unlimited Sport
2014 Jeep Wrangler JK Unlimited Sport
2015 Jeep Wrangler JK Unlimited Sport
2016 Jeep Wrangler JK Unlimited Sport
2017 Jeep Wrangler JK Unlimited Sport
Islander
2010 Jeep Wrangler JK Islander
Mountain
2010 Jeep Wrangler JK Mountain
Unlimited Islander
2010 Jeep Wrangler JK Unlimited Islander
Unlimited Mountain
2010 Jeep Wrangler JK Unlimited Mountain
2012 Jeep Wrangler JK Unlimited Mountain
70th Anniversary
2011 Jeep Wrangler JK 70th Anniversary
Unlimited 70th Anniversary
2011 Jeep Wrangler JK Unlimited 70th Anniversary
Unlimited
2012 Jeep Wrangler JK Unlimited
Unlimited Altitude
2012 Jeep Wrangler JK Unlimited Altitude
Willys Wheeler
2014 Jeep Wrangler JK Willys Wheeler
Unlimited Willys Wheeler
2014 Jeep Wrangler JK Unlimited Willys Wheeler
Unlimited Hard Rock
2015 Jeep Wrangler JK Unlimited Hard Rock
Sport S
2016 Jeep Wrangler JK Sport S
Unlimited Sport S
2016 Jeep Wrangler JK Unlimited Sport S
2017 Jeep Wrangler JK Unlimited Sport S
