Rock Krawler 3.5in Adventure-X Coilover Long Arm System Lift Kit - JL 2dr

Rock Krawler 3.5in Adventure-X Coilover Long Arm System Lift Kit

JL 2dr

Rock Krawler 3.5in Adventure-X Coilover Long Arm System Lift Kit - JL 2dr
INCLUDED IN PRICE

Product Resources

Features & Product Details

The Rock Krawler JL 3.5 Adventure-X Coil Over System is the ultimate in compromise between daily driver/hard core off-roader. The Adventure-X systems combine the benefits of a full high clearance 4 link front suspension with a high clearance independent 3 link rear suspension. This is where conventional on road handling meets bad a$$ off-road ability. The rear system uses our tried and true independent 3 link conversion with X2 rear suspension geometry with enhanced rear instant center(s) and rear roll center(s). The new X2 high clearance axle mounts provide 4.5 inches of ground clearance under the rear axle as compared to stock. The rear upper shock relocation brackets ensure you do not lose any shock or suspension travel. The combination of a full high clearance 4 link long arm front suspension and high clearance independent 3 link rear long arm suspension lets you dominate the streets and the trails.

System Benefits

  • 2.625” Remote Reservoir Coil Over Front
  • 2.625” Remote Reservoir Shock Rear
  • Excellent Highway Ride
  • Improved Off-Road Ability
  • Full High Clearance Design
  • High Clearance 4 Link Long Arm Front Suspension
  • High Clearance Independent 3 Link Long Arm Rear Suspension
  • Weld on Long Arm Mounting Brackets with Weld Scheduling just like OEM
  • Heat Shield thermal barrier products, just like OEM to protect the front control arm joints at the frame
  • 4.5” Rear Clearance Gain from the X2 Axle Bracket System
  • Adjustable Rear Anti-Squat Featuring X2 Geometry
  • Designed to be the Ultimate Compromise between On Highway Handling and Hard Core Off-Road Ability
  •

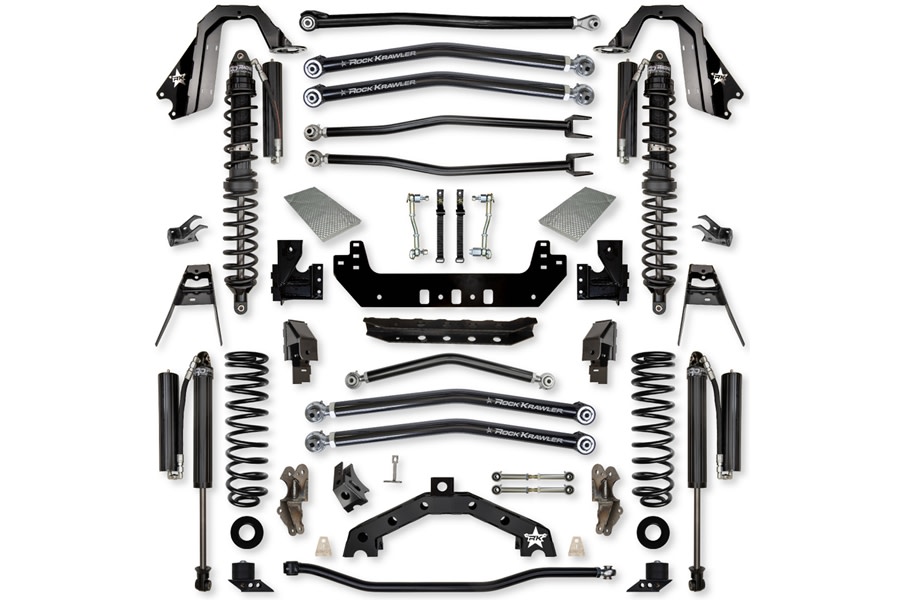

    System Includes:

  • (2) 2.625” remote reservoir front coil overs
  • (2) 2.625” remote reservoir rear shocks
  • (2) Frame side coil over mounts
  • (2) Axle side coil over mounts
  • (1) Weld-on front long arm mounting system
  • (1) Heat Shield Products Sticky Shield Kit
  • (1) Front adjustable anti-wobble track bar
  • (2) High clearance adventure series front lower control arms
  • (2) Adjustable front upper control arms
  • (1) Front sway bar disconnect kit
  • (2) Triple rate rear coil springs
  • (2) Rear coil spring correction seats
  • (2) Weld-on rear frame side long arm mounts
  • (2) High Clearance X Factor Rear lower control arms
  • (1) Rear upper control arm
  • (1) Rear frame side upper control arm mount
  • (2) Rear extended sway bar links
  • (1) Rear adjustable anti-wobble track bar
  • (2) Weld-on rear upper shock mount
  • (2) Weld-on rear axle side control arm mount
  • (1) Weld-on rear track bar mount
  • (1) Weld-on rear axle truss
  • (2) Rear brake line relocation brackets
  • *hardware and detailed instructions
  • Specifications

    Brand: Rock Krawler
    Kit Package: Yes
    Mfgr. Warranty: Limited Lifetime
    Condition: New Product
