Rock Krawler 3.5in Max Travel System Lift Kit (Part Number: )
Rock Krawler 3.5in Max Travel System Lift Kit
JL 2dr
Rock Krawler 3.5in Max Travel System Lift Kit (Part Number:JL35MT-2)
INCLUDED IN PRICE
$1,784.95
(Price as configured)

Product Resources

Features & Product Details

Shock options, click on links:

Rock Krawler Front and Rear
Fox Front and Rear
King Front and Rear
Teraflex Front and Rear


The Rock Krawler JL 3.5 Max Travel System was designed for those who want a complete bolt-in installation, increased articulation and the durability and off-road performance you expect from Rock Krawler Suspension. The X Factor Series adjustable lower control arms offer a total of 90 degrees of misalignment that eliminates the bind in your JL’s factory lowers, while high misalignment adjustable upper control arms let you precision tune your JL’s caster. Rock Krawler’s industry leading triple rate coils give you 3.5” of lift to clear up to 40” tires, depending on model, and improve the on-road ride over the factory linear rate springs. All Rock Krawler JL systems include correction pads that reduce the spring bow inherent in the factory set up. The provided track bar geometry corrections, both front and rear, lets you perfectly center the axles so there is no compromise in on road handling.

System Benefits:


  • Complete Bolt in System
  • Excellent Highway Ride
  • Improved Off-Road Ability
  • Triple Rate Coil Springs
  • Front & Rear Spring Leveling Pads
  • Lifetime Warranty on All Hard Parts
  • Upgradeable to Rock Krawler JL Long Arm

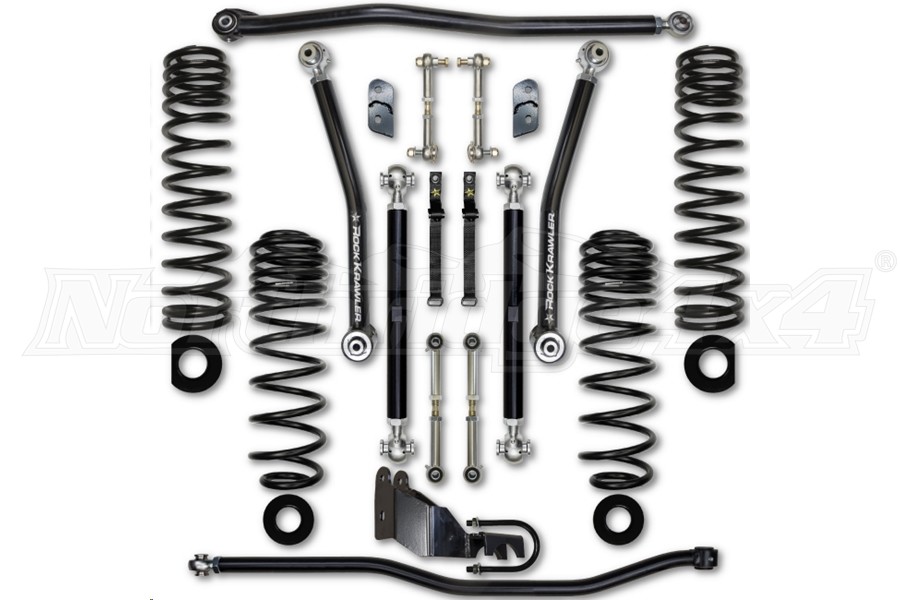

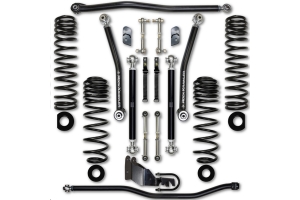

  • System Includes:
    (4) Triple rate coil springs
    (2) Front adjustable lower control arms
    (2) Front spring pads
    (1) Adjustable front track bar
    (2) Sway bar disconnects
    (2) Sway bar link relocation brackets
    (2) Sway bar disconnect straps
    (2) Rear adjustable upper control arms
    (2) Rear spring pads
    (2) Extended rear sway bar links
    (1) Adjustable rear track bar
    (1) Bolt-on rear track bar relocation bracket

    Tire Fitment:

    Sport and Sahara with Full OEM Fenders
    37” Tall Tires (3” Bump Stop Height Recommended)
    Sport and Sahara with Trimmed or High Lined OEM Fenders
    38” Tall Tires (3” Bump Stop Height Recommended)
    Rubicon with Full OEM Fenders
    37”/38” Tall Tires (3” Bump Stop Height Recommended)
    Rubicon with Trimmed or High Lined OEM Fenders
    40” Tall Tires (3” Bump Stop Height Recommended)

    Wheel Fitment:
    Sport and Sahara Wheel Fitment Recommendations
    37”/38” Tall Tires - Recommend 3.5” of Back Spacing
    Rubicon Fitment Recommendations
    35" Tall Tires - Recommend 4.5" of Back Spacing
    37” Tall Tires - Recommend 4.5” of Back Spacing
    40” Tall Tires - Recommend 3.5” of Back Spacing

    Shock Notes:
    Generic Front Shock Length - 18-19” Collapsed/ 30” Maximum Extended
    Generic Rear Shock Length - 20-21” Collapsed/ 32” Maximum Extended

    General Notes:
    *All lift heights based on Rubicon Models
    *Recommend a new front C.V. driveshaft for all front shocks with max. extended length greater than 29”



    Specifications

    Brand: Rock Krawler
    Kit Package: Yes
    Mfgr. Warranty: Limited Lifetime
    Condition: New Product
