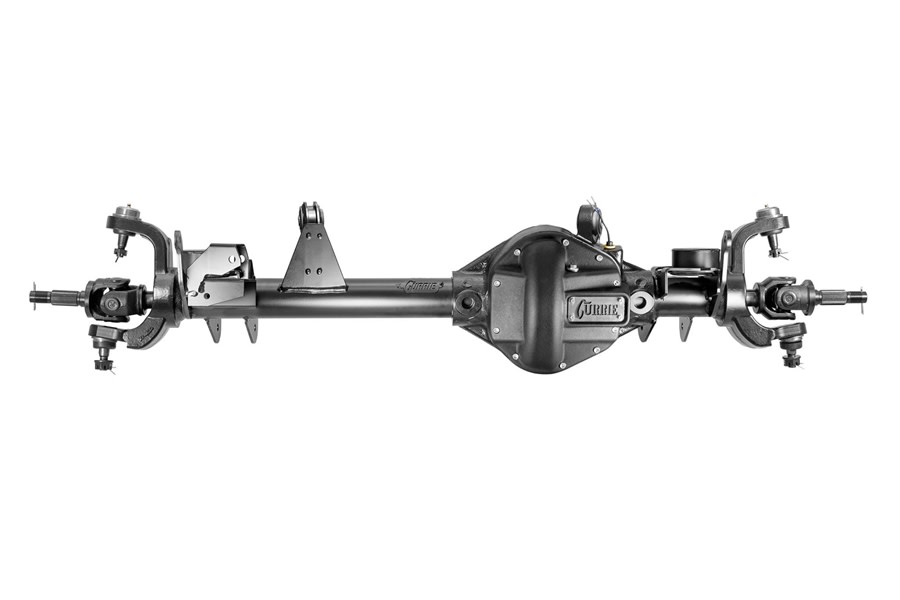

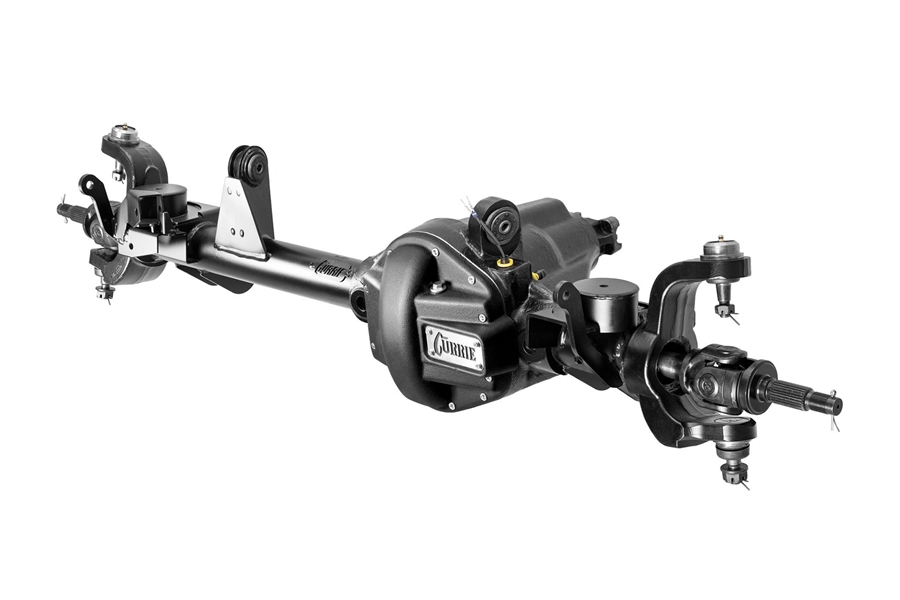

Currie Enterprises High Pinion 44 Front Axle w/ 5.13 Gears and  E-Lockers - TJ/LJ
Currie Enterprises High Pinion 44 Front Axle w/ 5.13 Gears and  E-Lockers - TJ/LJ
Currie Enterprises High Pinion 44 Front Axle w/ 5.13 Gears and  E-Lockers - TJ/LJ

Currie Enterprises High Pinion 44 Front Axle w/ 5.13 Gears and E-Lockers

TJ/LJ

Write a Review | Q&A
Part # CE-JF4404E51We price match! Call 866-601-5340!
$5,600.00
+$ Oversize Shipping Surcharge

Out of Stock. Average time to ship: 60 business days
You will earn Reward Points with this Purchase.
ANY QUESTIONS?

Product Resources

Features & Product Details

Currie® 44 high-pinion front axle for Jeep TJ/LJ/XJ vehicles, is a direct bolt-in assembly with superior strength in a light-weight package that’s designed for heavy off-road use

  • High-Pinion Massively Reinforced Center Section
  • Larger, Stronger JK Ring and Pinion Gears
  • 4340 Chromoly Axles with Larger Rubicon U-Joints
  • 3-inch Diameter x .5 in. Wall DOM Axle Tubes
  • Massive Forged Currie Inner C’s
  • Steering Geometry and Brackets Setup for Lifted Vehicles
  • Choice of Gear Ratio, Selectable Locker, and Axle Type
  • Stock TJ 60.5 in. Overall Width
  • Accepts Stock TJ/LJ/XJ Outer Knuckle Assemblies
  • Satin Black Powder Coat Finish For Long Lasting Protection

  • The Currie 44 front crate axle is a direct bolt-in solution that reduces the overall cost by enabling you to retain the complete stock TJ outer knuckle assemblies (brakes, hubs, etc.) and stock wheel bolt pattern.

    Built to the legendary Currie Standard, Featuring:

    Currie 44 high-pinion nodular iron center section features 14 lbs of reinforcement over a stock 44 with thicker walls and webbing to deliver superior strength and rigidity

    Large 3 in. diameter x .5 in. wall axle tubes (left) are more than 2.5 times stronger than the stock Dana® 30 tubes (right)

    Currie heavy duty forged inner knuckles (right) are massively stronger than the stock knuckles (left) and are designed for severe off-road use with up to 37” tall tires

    Genuine Dana Spicer ball joints provide original equipment quality, consistency, and long maintenance-free service life

    Currie Performance 4340 chromoly axles with larger Rubicon 1350 u-joints provide superior end-to-end strength over OEM carbon steel axles. Black oxide coating helps protect from surface corrosion for improved durability

    Lower control arm mounts are one-piece construction with integrated skid plates to help fend off bracket seeking rocks. Multiple mounting points enable the tuning of suspension geometry for improved performance

    Rock-proof Currie nodular iron front cover protects expensive internals and adds structural support to the housing's face flange

    Black satin powder coat finish adds long-lasting protection against rust and corrosion to keep your Currie 60 looking its best

    Specifications:

  • Center Section - Currie 44 high-pinion nodular-iron center section with thick walls and webbing
  • Differential Carrier - Compatible Lockers - ARB RD117 or Eaton ELocker 19977-010
  • Gear Set - Larger/stronger Dana 44 8.8 in. late model JK ring and pinion set
  • Pinion Yoke - 1310 series yoke
  • Differential Cover - Currie nodular-iron cover with gasketed fill plug with dipstick
  • Axle Tubes - 3 in. diameter, .5 wall DOM tube
  • Axles - Currie Performance 4340 chromoly 30/27-spline inner/outer axles with 1310 u-joints
  • End Forgings - Gusseted OEM D44 inner C's with ball joints installed
  • Ball Joints - Spicer D44 ball joints
  • Suspension Brackets -Heavy gauge 3/16” laser cut steel brackets
  • Control Arm Mounts - Upper control and lower control arm mounts are 3/16 thick, one-piece construction; lower mounts feature an integrated skid plate
  • Geometry - Optimized for 4” lift kit with 5 degrees of pinion angle to reduce driveshaft angle and 5 degrees of caster for improved steering
  • Width - 60.5 inches between wheel mounting surfaces (stock TJ width)
  • Finish - Satin Black Powder Coat

  • Notes

    Outer Knuckle Assemblies: The Currie 44 is designed to reuse the complete stock TJ/TJ/XJ outer knuckle assemblies from the ball joints out (knuckles, hubs, disk brake calipers and rotors)

    Differential Carriers: The center section is designed to use standard Dana 44 cariers (ARB RD117 or Eaton Elocker 19977-010).

    Overall Width: Axle width is 60.250 inches (stock TJ width) between wheel mounting surfaces

    Tire Size: Recommended maximum 37-inch tire size due to the inherent limitations of the stock brakes, wheel bearings, and axle u-joints. Tires larger than 31-inches may require vehicle modification for proper clearance.

    Specifications

    Brand: Currie Enterprises
    Axle Type: Dana 44
    Ratio: 5.13
    Spline Count: 30
    Tubing Diameter: 3.0in
    Width: 60.5in
    Mfgr. Warranty: 2 Year
    Condition: New Product
