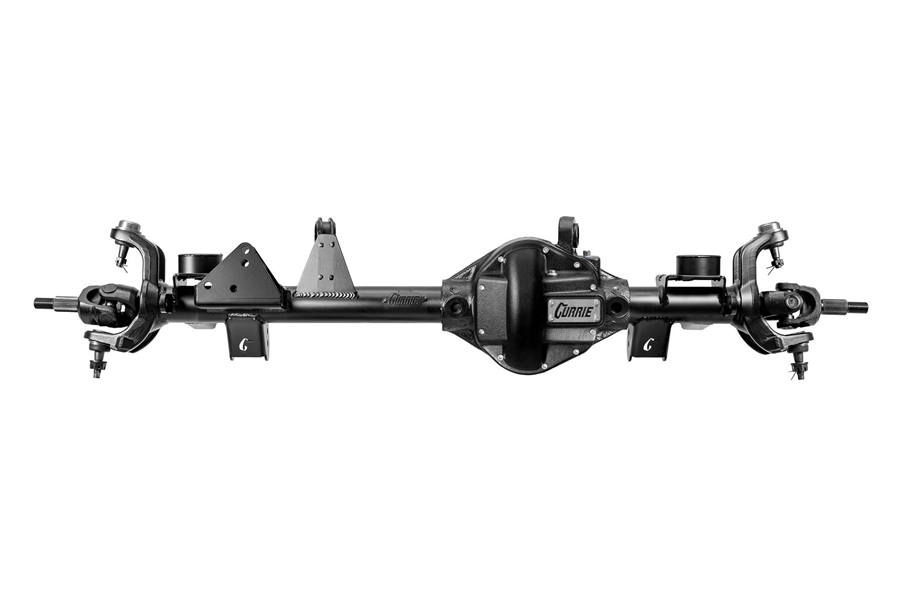

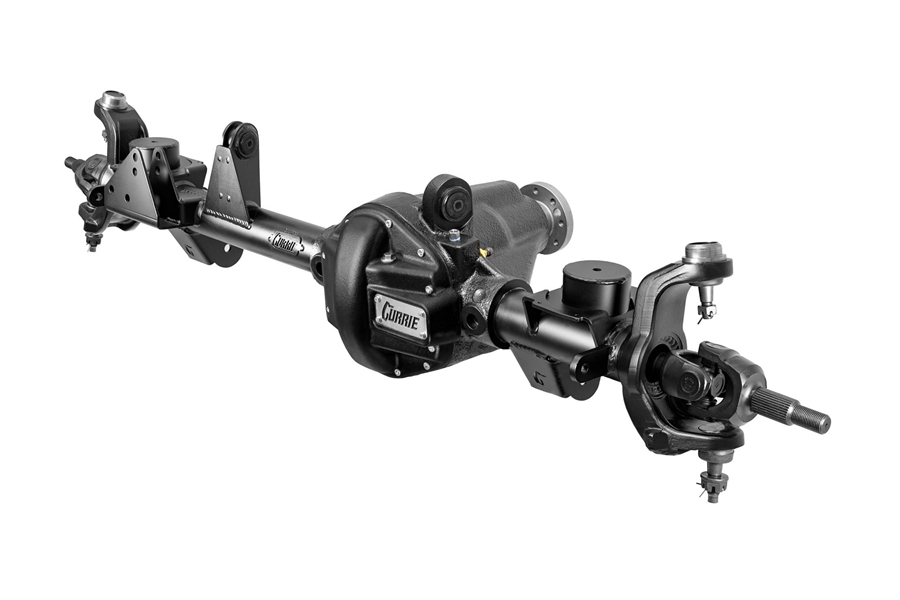

Currie Enterprises High Pinion 44 Front Axle – 4.10Gear and ARB Locker

The Currie 44 high-pinion JK front performance axle is a direct bolt-in assembly with superior strength in a light-weight package that’s designed for heavy off-road use.

Details:

Specifications:

Center Section   Currie 44 high-pinion nodular-iron center section with thicker walls and webbing

Differential Carrier          Compatible Lockers - ARB RD117 or Eaton ELocker 19977-010

Gear Set              Larger/stronger Dana 44 8.8” late model JK ring and pinion set

Pinion Yoke        1310 (stock size) pinion companion flange

Differential Cover            Currie nodular-iron cover with gasketed fill plug with dipstick, Red

End Forgings       Currie heavy-duty forged steel inner C’s

Axle Tubes          3 inch diameter, .5 wall DOM tube

Axles      Currie Performance 4340 chromoly 30/32-spline inner/outer axles with 1350 u-joints (Compatible with Motive Gear/Ten Factory Rubicon replacement axles)

Suspension Brackets       Heavy gauge 3/16” laser cut steel brackets

Control Arm Mounts       Upper control and lower control arm mounts are 3/16 thick, one-piece construction; lower mounts feature an integrated skid plate

Geometry            Optimized for 4” lift kit with 5 degrees of pinion angle to reduce driveshaft angle and 5 degrees of caster for improved steering

Width    65.375 inches between wheel mounting surfaces (stock JK width)

Wheel Bolt Pattern          5 on 5 inch

Notes
