Currie Enterprises Extreme 60 Front Axle Assemblies w/ 5.13 Gears - JK

Drivetrain
Axles
Complete Axle Sets >Currie Enterprises Extreme 60 Front Axle Assemblies w/ 5.13 Gears - JK

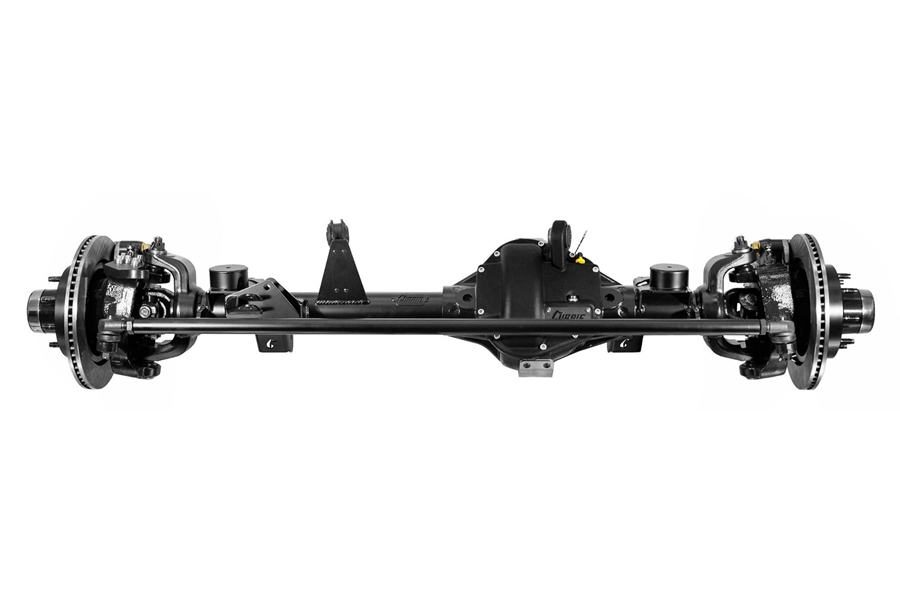

Currie Enterprises Extreme 60 Front Axle Assemblies w/ 5.13 Gears

JK

Write a Review | Q&A

Part # CE-KF6503E51

$10,100.00

30300 entries20200 entries - 2025 Northridge4x4 Jeep Giveaway

Quantity

Product will ship from manufacturer, average time to ship: 7-14 business days

Qualifies for
free shipping!

Does not fit your
1998 Jeep Wrangler TJ SE

2025 NORTHRIDGE4X4 JEEP® GIVEAWAY
Earn 2x Entries With This Purchase!

You will earn Reward Points with this Purchase.

Authorized
Dealer

Product Resources

Fitment Details

Features & Product Details

70-Inch Width +2.3 in. per Side (+4.6 in. Overall)

Exclusive Extreme 60 Features:

Front High-Clearance Center Section with Rotated Cover with Low-Friction Skid Plate Improves Obstacle Slide-Over

1-Ton Front Inner C's and Outer Steering Knuckles with Currie F350 Unit Bearings are Baja Proven and Ultra4 Tested Tough

Front Heat-Treated Chromoly Tie Rod with 1-Ton Ends

Full-Float Rear Billet Hubs and 40-Spline Axles Deliver Maximum Strength and Durability

Massive 14.250 in. Front and 13.75 in. Rear Vented Rotors Deliver Abundant Stopping Power

8-Lug Wheel Bolt Pattern for Ultimate Reliability

UV Stable Satin Black Powder Coat Finish

70-Inch Width +2.3 in. per Side (+4.6 in. Overall)

The Extreme 60 axles for 2007 thru 2018 Jeep JK Wrangler are complete bolt-in axle assemblies with all required brackets and mounts in place. The vehicle's factory driveshafts will require modification or replacement to accommodate the larger 1350 series u-joint and 60 series housing

Extreme 60 Front Features

Designed and optimized using computer simulation, the Extrem 60 is reinforced in critical areas with thicker walls and heavier webbing to deliver maximum strength, durability, and rigidity

The front high-pinion radius bottom center section with a replaceable skid plate delivers unmatched ground clearance and improves obstacle slide-over by presenting a smooth curve

Large 3.5 in. diameter x .375 wall axle tubes (left) are more than two times stronger than the stock axle tubes (right) without being overweight or sacrificing ground clearance

High volume flow-thru recirculating oil system keeps pinion bearings bathed in cool oil, reducing operating temperatures and eliminating oil starvation issues

Front axle steering geometry is optimized for large tires and lifted vehicles with increased caster and pinion angles

The included heavy-duty tie rod features a 1.375 OD x .375 wall heat-treated chromoly tube and 1-ton forged rod ends that are designed to withstand off-road abuse and large tires

Massive forged 1-ton inner knuckles (right) are designed to stand up to severe off-road punishment and large tires without flinching

Complete 1-ton outer steering assemblies deliver massive strength, while 13.25-inch diameter vented rotors and OE Jeep Gladiator dual-piston calipers provide the increased brake capacity required for stopping big tires

Warn® premium manual locking hubs are the industry standard for durability and reliability

Rock-proof Currie nodular iron front cover protects expensive internals, adds structural support to the housing's face flange, and locates the driver’s side upper control arm mount

UV Stabel Satin black powder coat finish adds long-lasting protection against rust and corrosion to keep your Extreme 60 looking its best

Notes:

ABS Sensors - Axles do not include ABS sensors, the factory sensors from the stock axles must be retained and installed on the Extreme 60 front and rear axle assemblies

Computer Programming: A programmer is required to reset the gear ratio and tire height settings in the vehicle's computer for the proper function of the vehicles stability control and transmission shift points when larger than stock tires are installed

Brake Upgrade: The big brake kit included with the Extreme 60 uses 14.250-inch rotors and Jeep Gladiator dual-piston calipers in the front and 13.75-inch vented rotors and Gladiator calipers in the rear to provide the stopping power required for large tires

heel and Tire Size: For proper brake caliper clearance, 17-inch or larger wheels are required. Wheels must have a 4.9-inch (125 mm) hub bore with a recommended 4.5-inch backspace. The maximum recommended tire size is 42 inches

Overall Width: Axle width is 70 inches between wheel mounting surfaces. Additional width improves turning angle with 37-inch and larger tires

Steering Stabilizer: The Extreme 60 ram assist bracket requires an aftermarket stud-style track bar bolt to accommodate a steering stabilizer. Trac bar bolts are available from FOX Racing P/N 803-02-028 or Synergy Manufacturing P/N 8806-0
